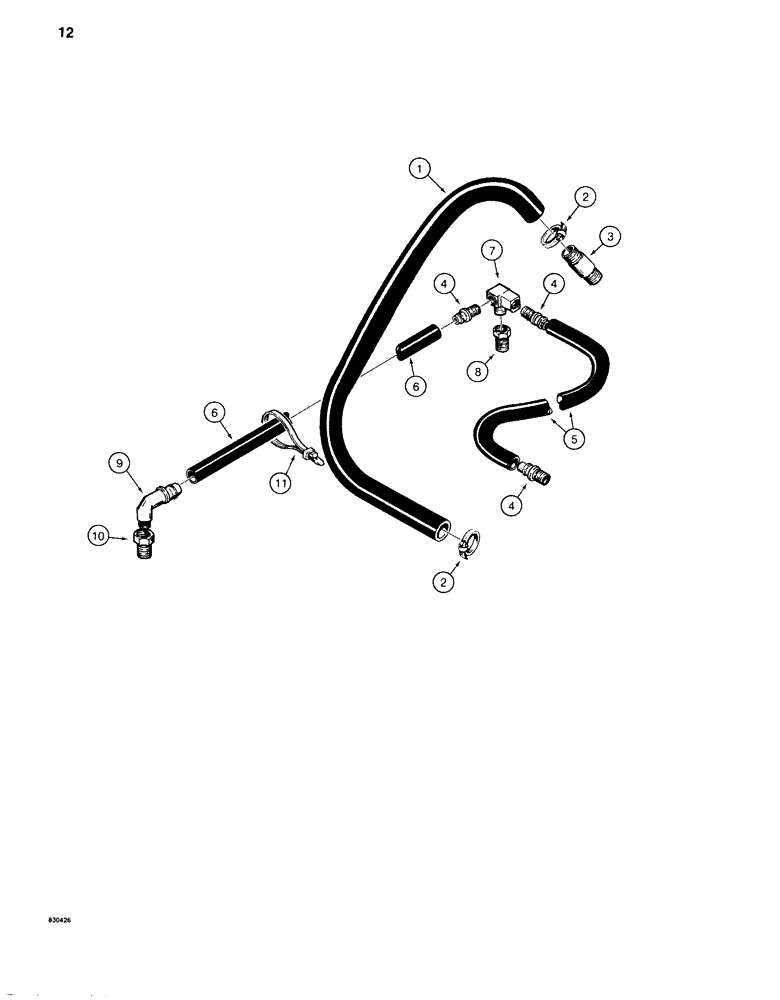

Запчасти Case 1280B (012) - COOLING SYSTEM HOSES, DETROIT DIESEL ENGINE ONLY (02) - ENGINE

1

REF

INSTRUCTION

HOSE - radiator surge line, 1" (25.4 mm) ID x 1-1/2" (38.1 mm) OD x 45" (1143 mm) long, cut from S118438 hose, see below

1шт.

2

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.

3

221-1921

PIPE,Nipple, 3/4" NPT x 2", X-Strng

At water pump

1шт.

4

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

Engine purge hoses

3шт.

5

REF

INSTRUCTION

HOSE - radiator purge line, 3/8" (9.5 mm) ID x 19/32" (15.1 mm) OD x 24" (610 mm) long, cut from S118400, see below

1шт.

6

REF

INSTRUCTION

HOSE - radiator purge line, 3/8" (9.5 mm) ID x 19/32" (15.1 mm) OD x 20" (508 mm) long, cut from S118400, see below

1шт.

7

217-51

TEE,1/4"-18 NPTF Fem x 1/4"-18 NPTF Male Run

1шт.

8

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

Engine to tee

1шт.

9

220-520

ELBOW,90 Degree, 1/8" NPT x 3/8" Barbed

1/4" NPT

1шт.

10

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

Engine to barb fitting

1шт.

11

R38237

STRAP

TIE - hose

1шт.

S118438

HOSE,1.00" ID x 120.00", SAE 20R1

Bulk

1шт.

S118400

HOSE,0.38" ID x 300.00"

Bulk

1шт.
