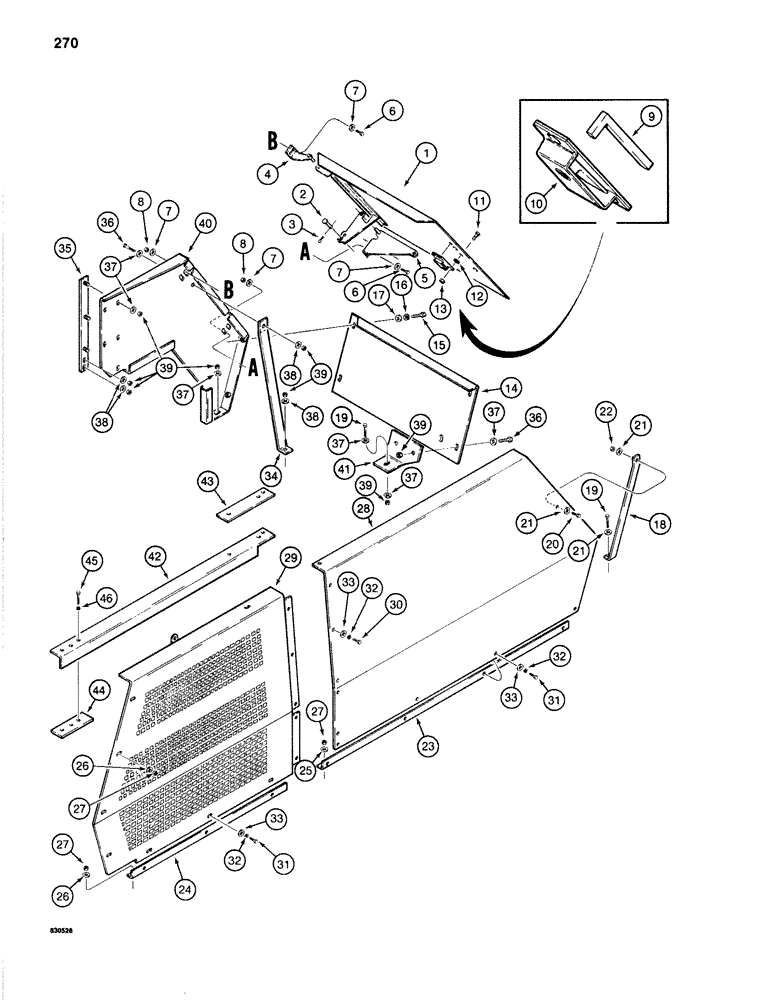

Запчасти Case 1280B (270) - RIGHT-HAND SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

S617752

DOOR ASSY.

DOOR - access, front

1шт.

2

S10810

CLEVIS PIN

- door holder

1шт.

3

S120261

PIN

- retainer, clevis

1шт.

4

S221455

BRACKET

HINGE - access door, top

1шт.

5

S221453

BRACKET

HINGE - access door, bottom

1шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

7

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8", hardened

8шт.

8

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

9

S115083

KEY

- lock, door and side panels

1шт.

10

S110414

LOCK

- access door

1шт.

11

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

12

195-103

WASHER,5/16"

- flat, 1/4"

2шт.

13

131-461

LOCK NUT,1/4"-20

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

14

S219991

SHEET

COVER - front, lower

1шт.

15

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

3шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

17

S95569

WASHER

- flat, 1/2", hardened

3шт.

18

S240494

BAR

BRACE - vertical, right front shroud

1шт.

19

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

20

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

21

S95569

WASHER

- flat, 1/2", hardened

3шт.

22

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

23

S219989

ANGLE

BRACKET - right front, Serial Range: shroud-turntable

1шт.

24

S241488

BRACKET

- right rear, Serial Range: shroud-turntable

1шт.

25

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened, used with S219989 bracket only

4шт.

26

S95569

WASHER

- flat, 1/2", hardened

7шт.

27

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

11шт.

28

S618087

SHROUD ASSY.

SHROUD - engine, right front

1шт.

29

S617773

SHROUD

- engine, right rear

1шт.

30

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

5шт.

31

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

7шт.

32

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

33

S95569

WASHER

- flat, 1/2", hardened

12шт.

34

S241486

BRACE

- vertical, left-hand shroud, front

1шт.

35

S238412

BRACKET - left-hand shroud, rear

1шт.

36

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

37

S95569

WASHER

- flat, 1/2", hardened

8шт.

38

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened

4шт.

39

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

11шт.

40

S617759

SHROUD

- left-hand, front

1шт.

41

S241983

BRACE

BRACKET - lower

1шт.

42

S516460

SUPPORT ASSY.

BRACE - shroud (replaces S516560)

1шт.

43

S119625

BAR

PLATE - top, see Figure 266 for mounting hardware

1шт.

44

S241981

BRACKET

PLATE - bottom

1шт.

45

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex head, 1/2" - 13 NC x 1-3/4", grade 8

3шт.

46

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.
