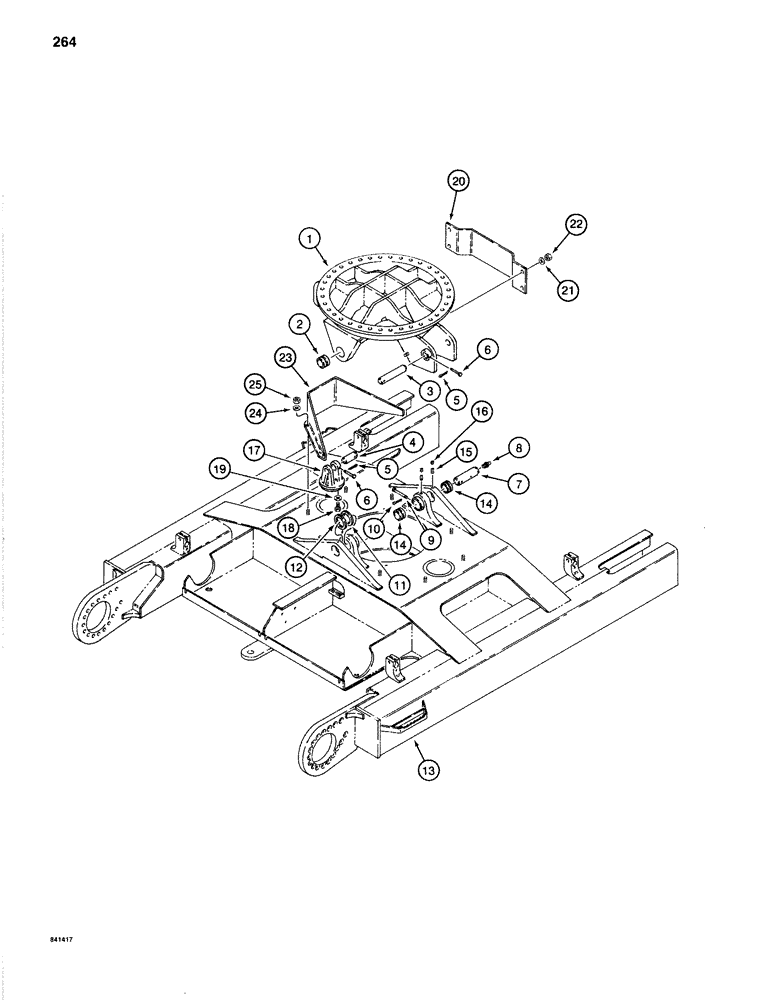

Запчасти Case 1280B (264) - TURNTABLE LEVELER (09) - CHASSIS/ATTACHMENTS

1

S610362

LEVEL

ER - turntable, Includes: Ref. 2

1шт.

2

S202192

BUSHING

- leveler

2шт.

3

S78554

PIN

- leveler cylinder to turntable leveler

2шт.

4

S108638

PIN

- leveler cylinder to cylinder bracket

2шт.

5

132-71

COTTER PIN,5/32" x 1 1/4"

PIN, Split (Cotter), 5/32" x 1 1/4"

4шт.

6

S61973

AXLE PIN

CLEVIS PIN - 1/2" x 3-3/4"

4шт.

7

S241477

PIN

- turntable, Serial Range: leveler-carbody

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

9

S87319

PIN

CLEVIS PIN - used with S 241477 pin

2шт.

10

132-71

COTTER PIN,5/32" x 1 1/4"

PIN, Split (Cotter), 5/32" x 1 1/4"

2шт.

11

S111776

WASHER

- spacer, 1/8" thick

1шт.

12

S111778

WASHER

- spacer, 1/16" thick

1шт.

13

S956601

FRAME

UNDERCARRIAGE - excavator, with wide track, if used

1шт.

13

S956889

LEVEL

UNDERCARRIAGE - excavator, with narrow track, if used, Includes: Ref. 14 - 16

1шт.

14

S241137

BUSHING

- leveler at carbody

4шт.

15

178-57

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

- hex socket head, 3/8" - 16 NC x 3/4", cone point

4шт.

16

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- hex socket head, 3/8" - 16 NC x 3/8", cup point

4шт.

17

S617126

BRACKET

- leveler, Serial Range: cylinder-carbody

2шт.

18

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

19

S95569

WASHER

- flat, 1/2", hardened

2шт.

20

S611713

COVER

GUARD - hose, at leveler

2шт.

21

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8", hardened

8шт.

22

131-206

NUT,3/8"-16

NUT - hex, self-locking, 3/8" - 16 NC

8шт.

23

S615046

GUARD

- dirt, leveler cylinder

2шт.

24

S95569

WASHER

- flat, 1/2", hardened

8шт.

25

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

8шт.
