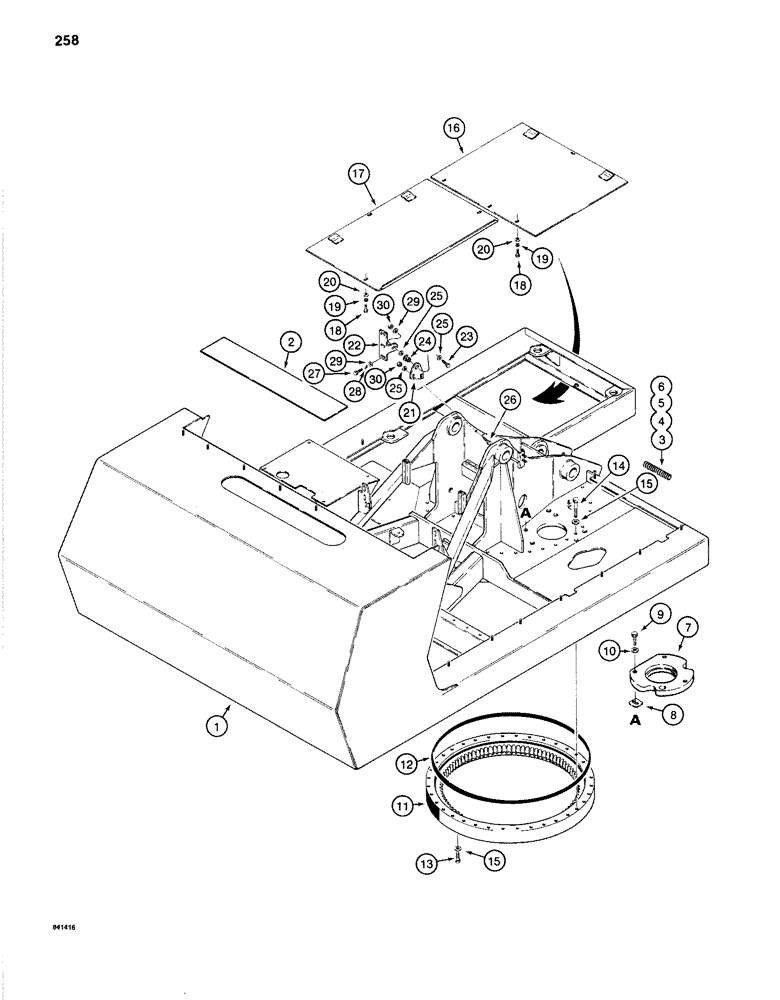

Запчасти Case 1280B (258) - TURNTABLE AND BEARING (09) - CHASSIS/ATTACHMENTS

1

S956831

ASSEMBLY

TURNTABLE - excavator

1шт.

2

S242214

PLATE

Cover, welded on

1шт.

3

REF

INSTRUCTION

GUARD - edge, turntable, 9" (229 mm) long, cut from S 118481

1шт.

4

REF

INSTRUCTION

GUARD - edge, turntable, 11" (279 mm) long, cut from S 118481

1шт.

5

REF

INSTRUCTION

GUARD - edge, turntable, 13" (330 mm) long, cut from S 118481

1шт.

6

REF

INSTRUCTION

GUARD - edge, turntable, 17" (432 mm) long, cut from S 118481

1шт.

7

S516544

SUPPORT

SPARE PART Swing gearbox mounting, Serial Range: welded-turntable

1шт.

8

S84889

SHIM,.003" Thk

(.0762 mm), Swing gearbox mounting to turntable

1шт.

8

S77916

SHIM,.005" Thk

(0.127 mm), Swing gearbox mounting to turntable

1шт.

8

S84890

SHIM,.007" Thk

(.1778 mm), Swing gearbox mounting to turntable

1шт.

8

S77917

SHIM,.010" Thk

(0.254 mm) Swing gearbox mounting to turntable

1шт.

8

S77918

SHIM,.015" Thk

(0.381 mm) Swing gearbox mounting to turntable

1шт.

8

S77919

SHIM,.030" Thk

(.7620 mm), Swing gearbox mounting to turntable

1шт.

8

S77920

SHIM,.060" Thk

(1.524 mm), Swing gearbox mounting to turntable

1шт.

Shims are also used between the turntable bearing assy and the leveler. A good picture of them in this application can be found in the 2500 Cruz Crane parts catalog.

1шт.

9

826-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

Gearbox to support

3шт.

BOLT MAY ALSO BE 828-20070 (20X 70mm 10.8) FOR THE METRIC VERSION (WITH THE THICKER MTG. FLANGE.)

1шт.

10

S118818

WASHER

Special, hardened

3шт.

S508670

BEARING ASSY

BEARING ASSEMBLY - turntable, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING - without seals

1шт.

12

S105067

SEAL

Bearing, 156" (3962 mm) long, cut to required length

2шт.

13

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

36шт.

14

26-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

36шт.

15

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

Flat, 3/4", hardened

72шт.

16

S606664

SPARE PART Operator compartment, front

1шт.

17

S508344

SPARE PART Operator compartment, rear

1шт.

18

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

7шт.

19

192-23

LOCK WASHER,1/2"

7шт.

20

196-15

WASHER,17/32" x 1 1/6" x .134"

Hardened

7шт.

21

S241979

BRACKET

Cab mounting, at turntable

1шт.

22

S514820

BRACKET

SPARE PART Cab mounting, at cab

1шт.

23

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

24

S110886

MOUNTING PARTS

Rubber, cab bracket

1шт.

25

196-10

WASHER,.521" x 2" x .134", HDN

2шт.

26

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

27

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

28

192-23

LOCK WASHER,1/2"

3шт.

29

S95569

WASHER

Flat, 1/2", hardened

6шт.

30

131-70

NUT,1/2"-13, GB

3шт.

S118481

PACKAGE

GUARD - edge, bulk roll, 1" (25 mm) ID x 60" (1524 mm) long

1шт.
