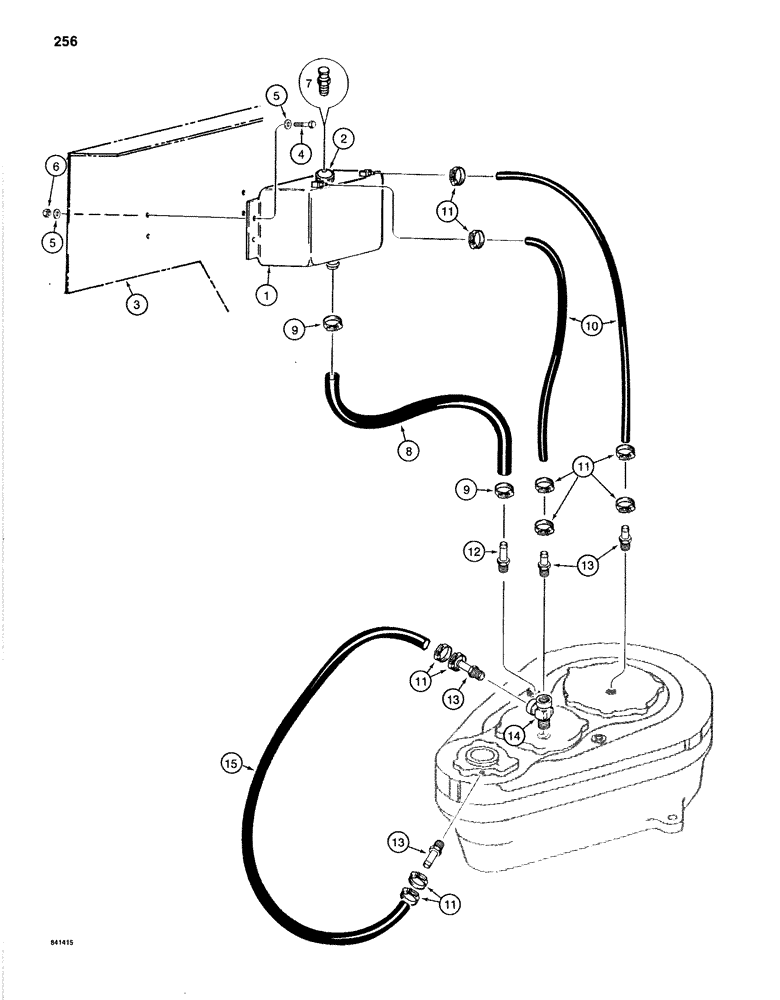

Запчасти Case 1280B (256) - SWING GEARBOX LUBRICATION SYSTEM (09) - CHASSIS/ATTACHMENTS

S516470

CONTAINER

RESERVOIR ASSEMBLY - lubricant, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR - lubricant

1шт.

2

N8793

CAP

Reservoir

1шт.

3

S617759

SHROUD

LH, front, see Figure 272 for mounting parts

1шт.

4

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

5

195-103

WASHER,5/16"

8шт.

6

231-1445

NUT,5/16"-18, GB

4шт.

7

L33264

BREATHER

Reservoir

1шт.

8

REF

INSTRUCTION

HOSE - gearbox cover, 23" (584 mm) long, cut from S118576, see below

1шт.

9

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

Used with 5/8" ID hoses

2шт.

10

REF

INSTRUCTION

HOSE - to bearing covers, 28" (711 mm) long, cut from S120557, see below

2шт.

11

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

Used with 1/4" ID hoses

10шт.

12

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

STEM - gearbox cover, used with 5/8" ID hose

1шт.

13

217-150

FITTING,1/4" Hose Barb x 1/8" Male NPTF

STEM - bearing covers, used with 1/4" ID hose

4шт.

14

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

Gearbox bearing cover, 1/8" NPT

1шт.

15

REF

INSTRUCTION

HOSE - crossover, tee to bearing cover, 24" (610 mm) long, cut from S120557, see below

1шт.

S118576

HOSE,0.62" ID BULK

1шт.

S120557

HOSE,0.25" ID x 300.00", SAE 30R6

Bulk length

1шт.
