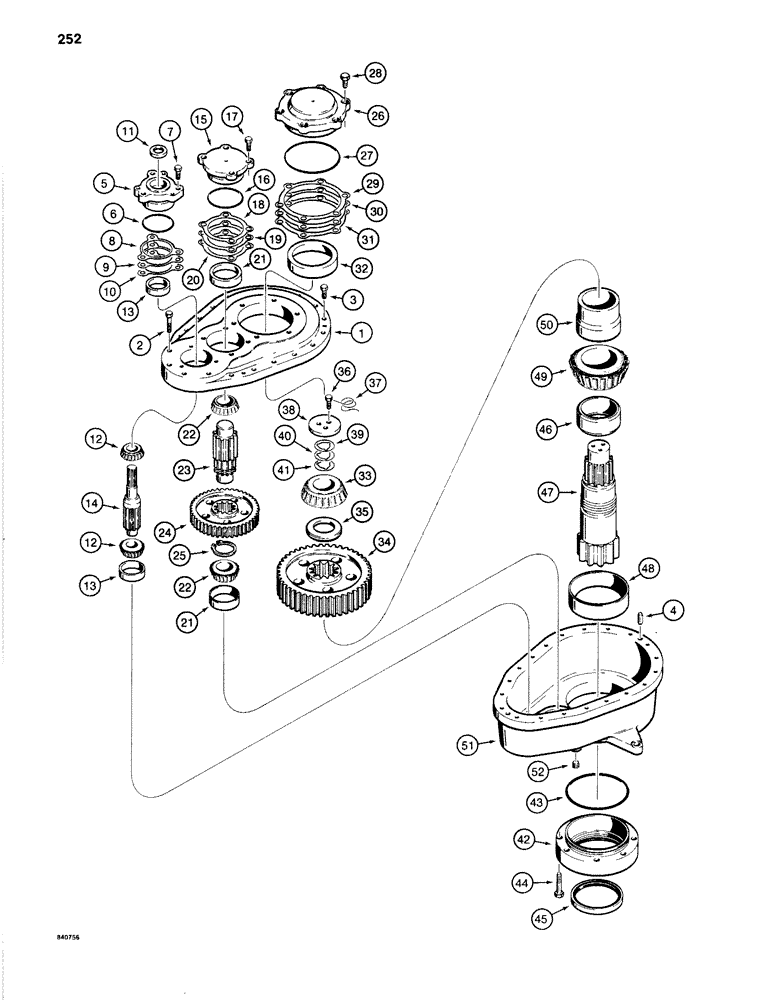

Запчасти Case 1280B (252) - SWING GEARBOX (09) - CHASSIS/ATTACHMENTS

S618296

REDUCER

GEARBOX - swing, Includes: Ref. 1 - 53

1шт.

1

S956557

COVER

- gearbox housing

1шт.

2

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

- hex head, 12 mm - 1.75 x 60 mm (8.8)

4шт.

3

814-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 40 mm (8.8)

16шт.

4

S65037

DOWEL

PIN -, Serial Range: cover-housing

2шт.

5

S515593

COVER

- bearing, input shaft

1шт.

6

A30389

O-RING,3.359" ID x 3.637" OD x 0.139"

- bearing cover

1шт.

7

814-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 40 mm (8.8)

3шт.

8

S240687

SHIM,.127mm Thk

Input shaft bearing cover (.005") .127mm Thk

1шт.

9

S240688

SHIM,.177mm Thk

Input shaft bearing cover (.007") .177mm Thk

1шт.

10

S240689

SHIM,.508mm Thk

Input shaft bearing cover (.020") .508mm Thk

1шт.

11

F53634

SEAL

OIL SEAL - input shaft

1шт.

12

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

TAPERED ROLLER BEARING - input shaft

2шт.

13

A30580

BEARING CUP

CUP - bearing, input shaft

2шт.

14

S616978

SHAFT

- input

1шт.

15

S242044

COVER

- bearing, intermediate shaft

1шт.

16

S6108

O-RING,4.359" ID x 4.637" OD x 0.139"

- bearing cover

1шт.

17

813-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 8.8, Full Thd

4шт.

18

S240546

SHIM,.127mm Thk

Intermediate shaft bearing cover (.005") .127mm Thk

1шт.

19

S240547

SHIM,.177mm Thk

Intermediate shaft bearing cover (.007") .177mm Thk

1шт.

20

S240548

SHIM,.508mm Thk

Intermediate shaft bearing cover (.020") .508mm Thk

1шт.

21

A26678

BEARING CUP,3.6718" OD x 0.9375"

CUP - bearing, intermediate shaft

2шт.

22

A27301

ROLLER BEARING,2" ID x 1.193"

TAPERED ROLLER BEARING - intermediate shaft

2шт.

23

S617089

SHAFT

- intermediate gear

1шт.

24

S616857

GEAR

- drive, intermediate

1шт.

25

A31227

SNAP RING,#275, Ext

RING, Snap, , drive gear #275, Ext

1шт.

26

S516758

COVER

- bearing, output shaft, drive end

1шт.

27

A40052

O-RING,0.139" Thk x 6.48" ID, -260, Cl 5, 75 Duro

- bearing cover

1шт.

28

813-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

6шт.

29

S240540

SHIM,.127mm Thk

Output shaft bearing cover (.005") .127mm Thk

1шт.

30

S240541

SHIM,.177mm Thk

Output shaft bearing cover (.007") .177mm Thk

1шт.

31

S240542

SHIM,.508mm Thk

Output shaft bearing cover (.020") .508mm Thk

1шт.

32

S118456

BEARING CUP,146.05 mm OD x 31.75 mm

CUP - bearing, output shaft, drive end

1шт.

33

S118455

ROLLER BEARING,69.85 mm ID x 41.275 mm

TAPERED ROLLER BEARING - output shaft, drive end

1шт.

34

S618295

GEAR

DRIVE GEAR - output shaft

1шт.

35

S120017

SPACER

- drive gear, upper

1шт.

36

S120018

BOLT

- hex head, special, 12 mm - 1.75 x 24 mm (10.9)

3шт.

37

391-418

LOCK WIRE - retainer plate bolt, No. 13 x 24" long

1шт.

38

S242427

PLATE

- retainer

1шт.

39

S120020

SHIM,.127mm Thk

Retainer to bearing (.005") .127mm Thk

1шт.

40

S120021

SHIM,.177mm Thk

Retainer to bearing (.007") .177mm Thk

1шт.

41

S120022

SHIM,.508mm Thk

Retainer to bearing (.020") .508mm Thk

1шт.

42

S618290

COVER

- bearing, output shaft, driven end

1шт.

43

S6355

O-RING,7.734" ID x 8.012" OD x 0.139"

- bearing cover

1шт.

44

826-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

8шт.

45

S242103

OIL SEAL

- oil, shaft collar

1шт.

46

S242014

COLLAR

- output shaft

1шт.

47

S618289

SHAFT

PINION SHAFT - output

1шт.

48

S403146

BEARING, CUP

CUP - bearing, output shaft, driven end

1шт.

49

S403192

ROLLER BEARING

TAPERED ROLLER BEARING - output shaft, driven end

1шт.

50

S242425

SPACER

- drive gear, lower

1шт.

51

S956556

HOUSING

- swing gearbox

1шт.

52

221-659

DRAIN PLUG,Hex Soc, 3/4" NPT

PLUG - pipe, magnetic, hex socket head, 3/4" NPT

1шт.

53

221-845

PLUG,Hex Soc, 3/4"-14

- pipe, hex socket head, 3/4" NPT, not shown

1шт.

B17423

LOCTITE

- red, 10cc bottle. Ref. 1, 46 & 51 must use Loctite seal compound

1шт.
