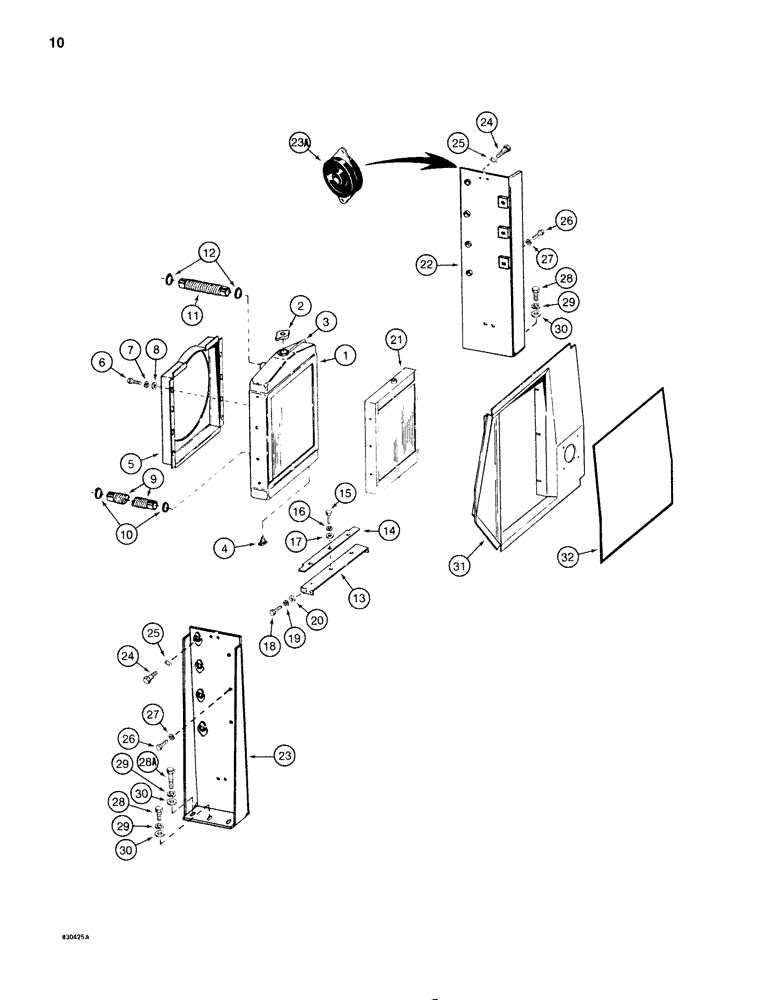

Запчасти Case 1280B (010) - RADIATOR, OIL COOLER, AND HOSES (02) - ENGINE

1

S609650

RADIATOR

ASSEMBLY - used with Case engine, includes refs. 2 and 3

1шт.

1

S613849

RADIATOR

ASSEMBLY - used with Detroit Diesel engine, includes refs. 2 and 3

1шт.

2

D25826

CAP

- radiator

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - overflow, purchase locally

1шт.

4

A23656

COCK, DRAIN

VALVE - radiator drain

1шт.

5

S609718

SHROUD

- fan, used with Case engine

1шт.

5

S610685

SHROUD

- fan, used with Detroit Diesel engine

1шт.

6

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

If used Hex, 1/4"-20 x 5/8", G5, Full Thd

8шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

8

195-518

WASHER,1/4", SAE

- flat, 1/4"

8шт.

9

S85823

HOSE,63.5 mm ID x 609.60 mm, SAE 20R5

63.5 mm ID x 609.6 mm, SAE 20R5, Radiator, Lower; Used with CASE Engine

1шт.

9

S76701

HOSE

- radiator, lower, used with Detroit Diesel engine

1шт.

10

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, used with Case engine

2шт.

10

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

used with Detroit diesel engine #36, 1.81/2.75 Type F Worm

2шт.

11

S230570

HOSE,2.50" ID x 12.26", SAE 20R4 CLASS SC

RADIATOR HOSE, , Upper (Used w/Case Diesel Engines) 2.50" ID x 12.26", SAE 20R4 CLASS SC

1шт.

11

S69874

HOSE

- radiator, upper, used with Detroit Diesel engine

2шт.

12

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, used with Case engine

2шт.

12

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

used with Detroit Diesel engine #28, 1.31/2.25 Type F Worm

4шт.

13

S241547

BRACKET

- mounting, upper and lower

2шт.

14

S229946

STRIP

- mounting bracket, upper and lower

2шт.

15

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

6шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

17

195-101

WASHER,3/16"

- flat, 1/4"

6шт.

18

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

8шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

20

195-102

WASHER,1/4"

- flat, 5/16"

8шт.

21

S600253

COOLER, OIL

OIL COOLER - hydraulic oil

1шт.

22

S516053

BRACKET

- front, includes ref. 23A

1шт.

23

S513035

BRACKET

- rear, includes ref. 23A

1шт.

23a

S222918

SHOCK ABSORBER

MOUNT - insulating

4шт.

24

S76819

STEP BOLT

BOLT - shoulder, special, Serial Range: radiator-brackets

8шт.

25

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

8шт.

26

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

Oil cooler to brackets Hex, 5/16"-18 x 1 1/4", G5

6шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

28

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

5-6шт.

28a

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Used with Detroit Diesel engine only Hex, 1/2"-13 x 2", G5

1шт.

29

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

30

S95569

WASHER

- flat, 1/2"

6шт.

31

S617282

SHROUD

- air intake

1шт.

32

S120012

SEAL

MOLDING - shroud 158" (4013 mm) long

1шт.
