Запчасти Case 1280B (248) - SWING BRAKE LEVER AND CABLE (09) - CHASSIS/ATTACHMENTS

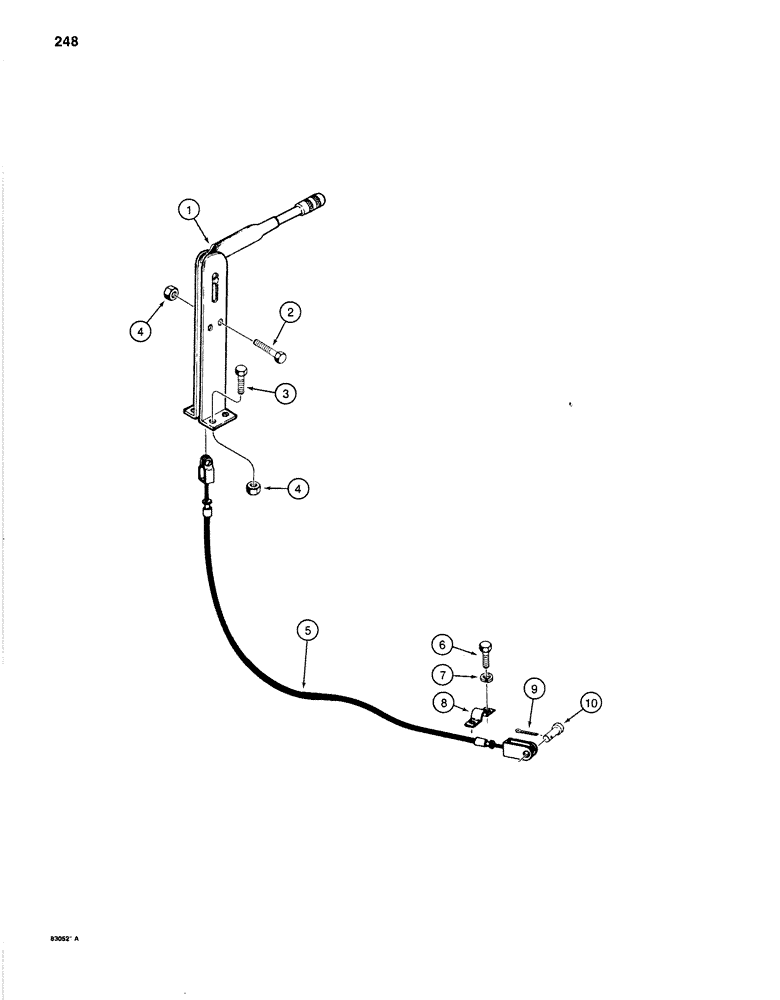

Схема запчастей Case 1280B - (248) - SWING BRAKE LEVER AND CABLE (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

S514575

LEVER

- swing brake

1шт.

2

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

3

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

4

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

6шт.

5

S33995

CABLE

- swing brake

1шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

A55980

CLAMP

- brake cable

1шт.

9

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

10

S10715

PIN

CLEVIS PIN - 1/4" x 7/8"

1шт.

Выбрано товаров: 10
