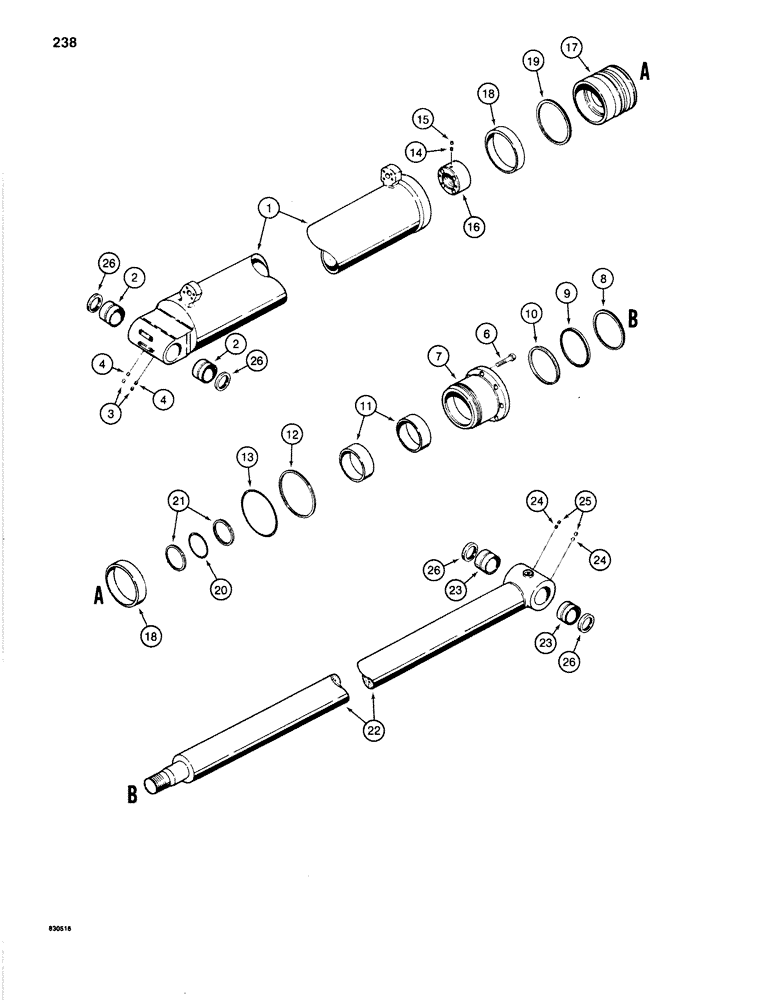

Запчасти Case 1280B (238) - TOOL CYLINDER (08) - HYDRAULICS

S956747

CYLINDER

ASSEMBLY - tool, Includes: Ref. 1 - 26

1шт.

1

S617325

CYLINDER,53.18" L

TUBE ASSEMBLY - cylinder, Includes: Ref. 2 - 4

1шт.

2

S240344

BUSHING

- tube

2шт.

3

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- top, 3/8" - 16 NC x 3/8", cup point

2шт.

4

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- bottom, 3/8" - 16 NC x 3/8", cone point

2шт.

6

28-1236

CAPSCREW,Hex, 3/4" - 16 x 2 1/4", Gr 8

BOLT - hex head, 3/4" - 16 NF x 2-1/4", grade 8

10шт.

7

S515437

HEAD ASSY.

HEAD - cylinder

1шт.

8

S104444

WIPER

- piston rod

1шт.

Part of Seal Kit, P/N S613321

1шт.

9

S116473

SEAL

- piston rod, outer

1шт.

Part of Seal Kit, P/N S613321

1шт.

10

S242244

SEAL

- piston rod, inner

1шт.

Part of Seal Kit, P/N S613321

1шт.

11

S236422

OIL SEAL

RING - wear, cylinder head

2шт.

Part of Seal Kit, P/N S613321

1шт.

12

S114994

WASHER

BACKUP RING - cylinder head

1шт.

Part of Seal Kit, P/N S613321

1шт.

13

S6801

O-RING,5.975" ID x 6.525" OD x 0.275"

- cylinder head

1шт.

Part of Seal Kit, P/N S613321

1шт.

14

178-26

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

- bottom, 1/4" - 20 NC x 3/8", cone point

1шт.

15

178-882

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- top, 1/4" - 20 NC x 3/8", cup point

1шт.

16

S510006

NUT

- piston locking

1шт.

17

S516300

PISTON

- cylinder

1шт.

18

S109539

WEAR RING,Split, 158.75mm ID x 165.1mm OD x 38.1mm Thk

RING, WEAR, Piston

2шт.

Part of Seal Kit, P/N S613321

1шт.

19

S228607

SEAL,145.16mm ID x 166.85mm OD x 9.32mm Thk

SEAL - piston, outer

1шт.

Part of Seal Kit, P/N S613321

1шт.

20

S6594

O-RING,2.484" ID x 2.762" OD x 0.139"

- piston, inner

1шт.

Part of Seal Kit, P/N S613321

1шт.

21

S114154

BACK-UP RING

BACKUP RING - piston seal

2шт.

Part of Seal Kit, P/N S613321

1шт.

22

S516298

ROD ASSY.

ROD ASSEMBLY - piston, Includes: Ref. 23 - 25

1шт.

23

S240357

BUSHING

- piston rod

2шт.

24

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- bottom, 3/8" - 16 NC x 3/8", cone point

2шт.

25

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- top, 3/8" - 16 NC x 3/8", cup point

2шт.

26

S240665

OIL SEAL

- grease, cylinder tube and piston rod ends

4шт.

S613321

KIT

- seal, includes Refs. 7 - 13 and 18 - 21

1шт.
