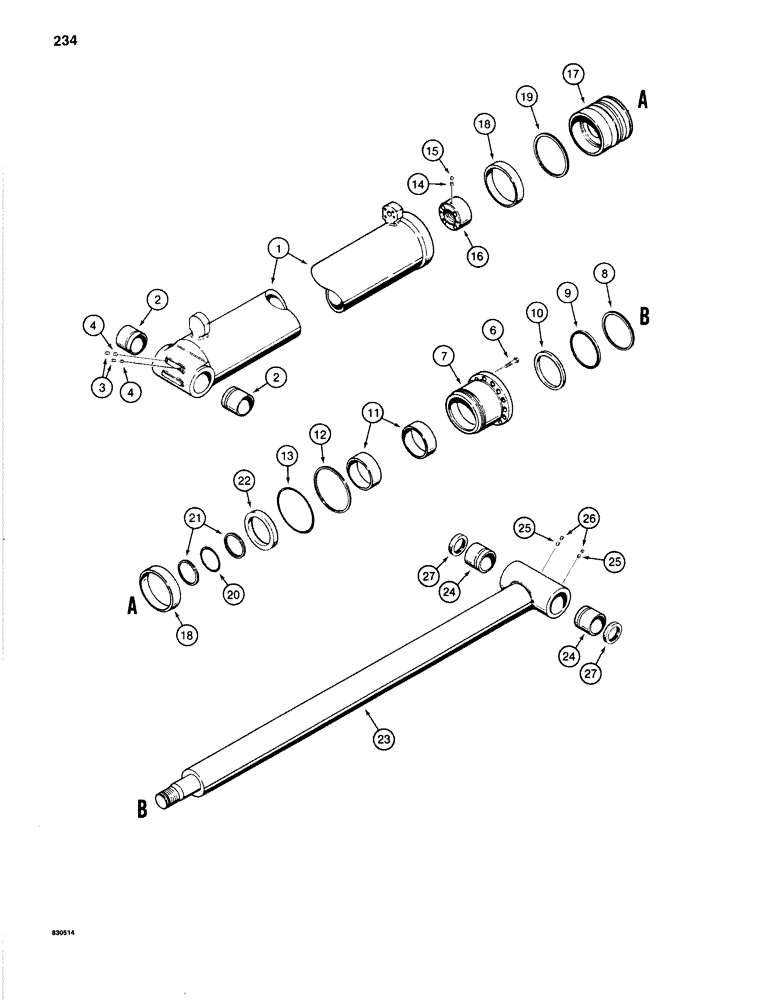

Запчасти Case 1280B (234) - BOOM CYLINDER (08) - HYDRAULICS

S956746

CYLINDER

ASSEMBLY - boom, Includes: Ref. 1 - 27

1шт.

1

S616682

TUBE,68.08" L

ASSEMBLY - cylinder, Includes: Ref. 2 - 4

1шт.

2

S229565

BUSHING

- tube

2шт.

3

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- top, 3/8" - 16 NC x 3/8", cup point

2шт.

4

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- bottom, 3/8" - 16 NC x 3/8", cone point

2шт.

6

28-1236

CAPSCREW,Hex, 3/4" - 16 x 2 1/4", Gr 8

BOLT - hex head, 3/4" - 16 NF x 2-1/4", grade 8

10шт.

7

S515436

HEAD ASSY.

HEAD - cylinder

1шт.

8

S104444

WIPER

- piston rod

1шт.

Part of Seal Kit S613319

1шт.

9

S116473

SEAL

- piston rod, outer

1шт.

Part of Seal Kit S613319

1шт.

10

S242244

SEAL

- piston rod, inner

1шт.

Part of Seal Kit S613319

1шт.

11

S236422

OIL SEAL

RING - wear, cylinder head

2шт.

Part of Seal Kit S613319

1шт.

12

S114167

BACK-UP RING

BACKUP RING - cylinder head

1шт.

Part of Seal Kit S613319

1шт.

13

S6803

O-RING,6.475" ID x 7.025" OD x 0.275"

- cylinder head

1шт.

Part of Seal Kit S613319

1шт.

14

178-26

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

- bottom, 1/4" - 20 NC x 3/8", cone point

1шт.

15

178-882

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- top, 1/4" - 20 NC x 3/8", cup point

1шт.

16

S509529

NUT

- piston locking

1шт.

17

S516303

PISTON

- cylinder

1шт.

18

S109534

WEAR RING,Split, 171.45mm ID x 177.8mm OD x 38.1mm Thk

RING - wear, piston

2шт.

Part of Seal Kit S613319

1шт.

19

S234198

SEAL

- piston, outer

1шт.

Part of Seal Kit S613319

1шт.

20

S6596

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

- piston, inner

1шт.

Part of Seal Kit S613319

1шт.

21

S114155

OIL SEAL

BACKUP RING - piston seal

2шт.

Part of Seal Kit S613319

1шт.

22

S240965

SPACER

- piston

1шт.

23

S516301

ROD ASSY.

ROD ASSEMBLY - piston

1шт.

24

S240344

BUSHING

- piston rod

2шт.

25

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- bottom, 3/8" - 16 NC x 3/8", cone point

2шт.

26

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- top, 3/8" - 16 NC x 3/8", cup point

2шт.

27

S240665

OIL SEAL

- grease, rod end

2шт.

S613319

SEAL,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

KIT - seal, includes Refs. 8 - 13 and 18 - 21

1шт.
