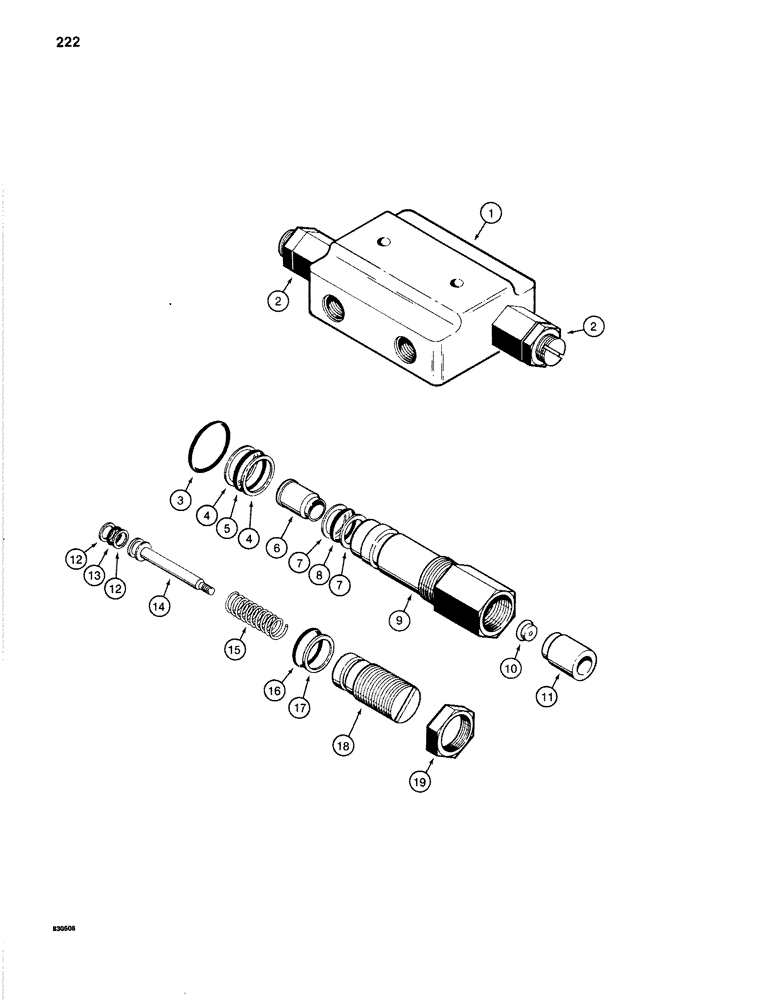

Запчасти Case 1280B (222) - SWING CROSSOVER RELIEF VALVE (08) - HYDRAULICS

S236820

VALVE

RELIEF VALVE ASSEMBLY - swing crossover, Includes: Ref. 1 - 19

1шт.

1

S114840

HOUSING

BODY - valve

1шт.

2

S73968

CARTRIDGE

ASSEMBLY - relief valve, Includes: Ref. 3 - 9

2шт.

3

D54806

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- cartridge shell to relief valve body

1шт.

4

D24036

WASHER

BACKUP RING - outer shell O-ring

2шт.

5

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

- outer shell seal

1шт.

S96095

KIT

- relief valve cartridge, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

POPPET - relief valve cartridge

1шт.

7

NSS

NOT SOLD SEPARAT

BACKUP RING - poppet O-ring

2шт.

8

NSS

NOT SOLD SEPARAT

O-RING - poppet seal

1шт.

9

NSS

NOT SOLD SEPARAT

SHELL - cartridge assembly

1шт.

10

R16123

WASHER, THRUST

SNUBBER - cartridge assembly

1шт.

11

R12510

SEAT

- floating

1шт.

12

S80306

BACK-UP RING

BACKUP RING - plunger O-ring

2шт.

13

H756627

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

- plunger seal

1шт.

14

S96093

PLUNGER

- displacement

1шт.

15

L33230

SPRING

- cartridge assembly

1шт.

16

D31413

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

- adjusting screw

1шт.

17

T38233

BACK-UP RING,0.891" ID x 1.127" OD x 0.05"

BACKUP RING - adjusting screw O-ring

1шт.

18

S96092

ADJUSTMENT SCREW

ADJUSTING SCREW - cartridge assembly

1шт.

19

R12507

LOCK NUT

- special, adjusting screw lock

1шт.
