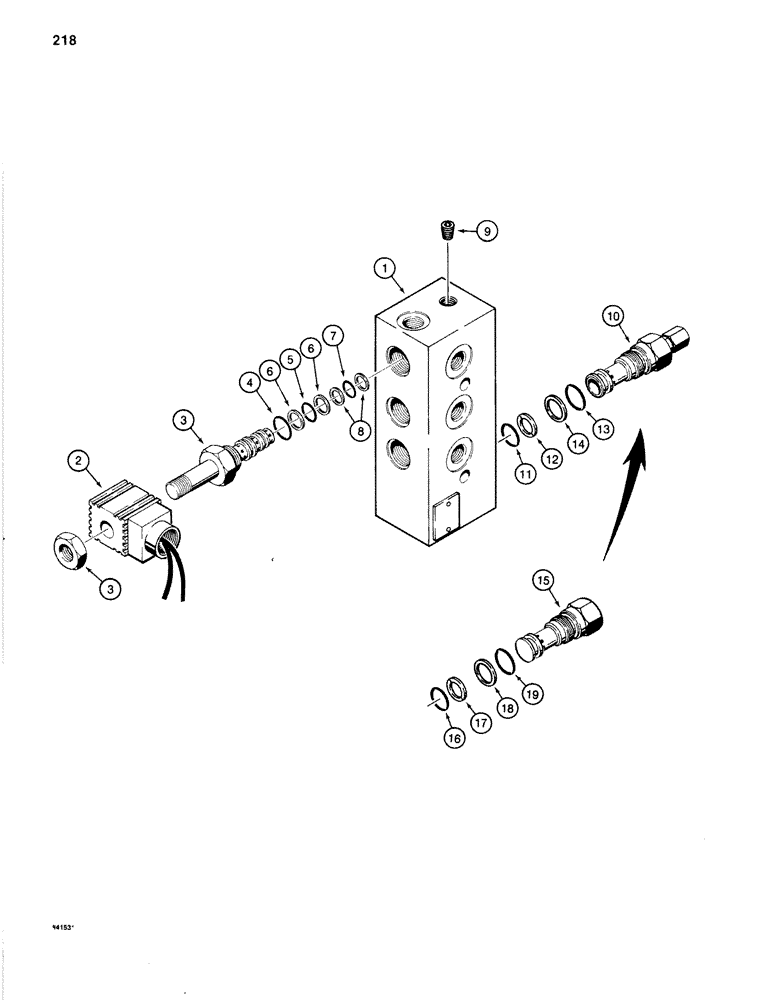

Запчасти Case 1280B (218) - SOLENOID CONTROL VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
S516559
VALVE
CONTROL VALVE ASSEMBLY - solenoid, has relief assembly as part of solenoid valve, Includes: Ref. 1 - 19
1шт.
S516914
VALVE, CONTROL
CONTROL VALVE ASSEMBLY - solenoid, has plug assembly in place of relief valve assembly, Includes: Ref. 1 - 19
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - control valve
1шт.
2
N9053
COIL
- solenoid
3шт.
N8549
SOLENOID
ASSEMBLY - control valve, Includes: Ref. 3 - 8
3шт.
3
NSS
NOT SOLD SEPARAT
BODY - solenoid
1шт.
4
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
5
A18414
O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro
- center
1шт.
6
N8553
O-RING
BACKUP RING - center O-ring
2шт.
7
A8613
O-RING,0.426" ID x 0.566" OD
- inner
1шт.
8
N8554
O-RING
BACKUP RING - inner O-ring
2шт.
9
221-849
PLUG,Hex Soc, 1/8"-27
- pipe, hex socket head, 1/8" NPT
1шт.
N9052
CARTRIDGE
RELIEF VALVE ASSEMBLY - control valve, components of S 516559 solenoid control valve only, Includes: Ref. 10 - 14
1шт.
10
NSS
NOT SOLD SEPARAT
BODY - relief valve
1шт.
11
A65918
O-RING,0.551" ID x 0.691" OD
- relief valve, 9/16" ID
1шт.
12
L30443
BACK-UP RING,0.547" ID x 0.049" Width
BACKUP RING - used with 9/16" ID O-ring
1шт.
13
D77584
O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro
- relief valve, 11/16" ID
1шт.
14
A34493
RING,16.33mm ID x 19.02mm OD x 1.25mm Thk
BACKUP RING - used with 11/16" ID O-ring
1шт.
N9763
PLUG
ASSEMBLY - control valve, components of S 516914 solenoid control valve only, Includes: Ref. 15 - 19
1шт.
15
NSS
NOT SOLD SEPARAT
BODY - plug
1шт.
16
A65918
O-RING,0.551" ID x 0.691" OD
- plug, 9/16" ID
1шт.
17
L30443
BACK-UP RING,0.547" ID x 0.049" Width
BACKUP RING - used with 9/16" ID O-ring
1шт.
18
A34493
RING,16.33mm ID x 19.02mm OD x 1.25mm Thk
BACKUP RING - used with 11/16" ID O-ring
1шт.
19
D77584
O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro
- plug, 11/16" ID
1шт.
Выбрано товаров: 24
