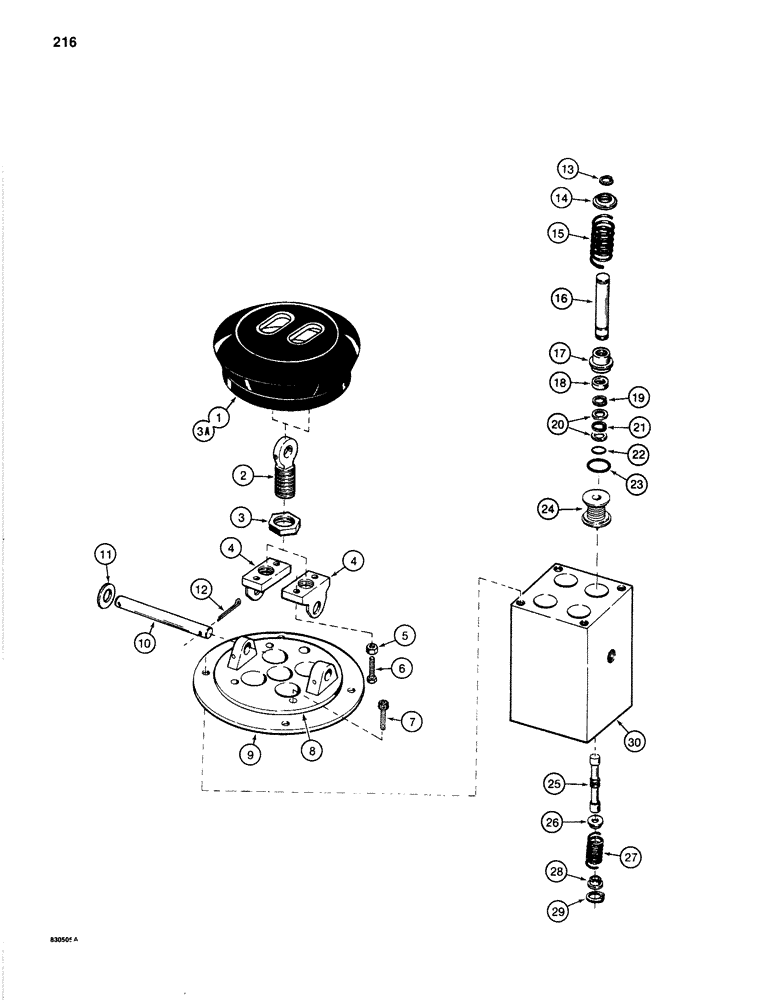

Запчасти Case 1280B (216) - HAND AND FOOT CONTROL VALVES (08) - HYDRAULICS

S513193

VALVE

CONTROL VALVE ASSEMBLY - foot, Includes: Ref. 1 - 30

2шт.

S516631

VALVE

CONTROL VALVE ASSEMBLY - hand, left-hand, Includes: Ref. 1 - 30

1шт.

S516632

VALVE

CONTROL VALVE ASSEMBLY - hand, right-hand, Includes: Ref. 1 - 30

1шт.

S116388

LEVER

ASSEMBLY - control valve, S513193 control valve, Includes: Ref. 1 - 3

1шт.

1

S116389

BOOT

- rubber

1шт.

2

S116390

END

LEVER - control valve

2шт.

3

N8560

NUT

JAM NUT - 14 mm - 2

2шт.

3a

S116389

BOOT

- rubber, S516631 and S516632 control valves

1шт.

S116376

PLATE

MOUNTING PLATE ASSEMBLY - control valve, Includes: Ref. 4 - 12

1шт.

4

S116377

BRACKET, PIVOT

PIVOT - lever

2шт.

This part has two ears, one on each side of the plate. This was confirmed by Steven Reid Product and application engineer, mobile sales division of Parker Hannifan Corp.

1шт.

5

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm - 1

4шт.

6

S116379

BOLT

- hex head, 6 mm special

4шт.

7

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

SCREW, Hex Soc Hd, M6 x 16, 8.8

4шт.

8

NSS

NOT SOLD SEPARAT

PLATE - pivot, bracket

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE - mounting

1шт.

10

S116384

PIN

SHAFT - pivot

2шт.

11

S116383

WASHER

- special, stainless

1шт.

12

132-28

COTTER PIN,3/32" x 1"

PIN, Split (Cotter), 3/32" x 1"

2шт.

S116385

SHOCK ABSORBER

BUSHING AND SPRING ASSEMBLY - center, all ports of S513193 valve and only in port No. 2 of S516631 valve or in port No. 3 of S516632 valve, Includes: Ref. 13 - 23

1-4шт.

Port numbers are stamped on end of valve body.

1шт.

S120446

SPRING

BUSHING AND SPRING ASSEMBLY - center, in ports No. 1, 3, and 4 of S516631 valve or ports No. 1, 2, and 4 of S516632 valve only, Includes: Ref. 13 - 23

3шт.

Port numbers are stamped on end of valve body.

1шт.

13

S110961

RING, SNAP

SNAP RING - lever end

1шт.

14

S109867

WASHER

- special

1шт.

15

NSS

NOT SOLD SEPARAT

SPRING

1шт.

16

NSS

NOT SOLD SEPARAT

STUD - guide

1шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - guide

1шт.

18

S109853

SEAL

- stud

1шт.

19

S109854

RING, SNAP

SNAP RING - center

1шт.

20

NSS

NOT SOLD SEPARAT

SPACER - 0.1 mm, if used

1шт.

20

S109856

SHIM,0.2mm Thk

Spacer 0.2mm Thk

1шт.

20

S109857

SHIM,0.5mm Thk

Spacer 0.5mm Thk

1шт.

21

S109855

RING, SNAP

SNAP RING - inner

1шт.

22

N8559

O-RING,5mm ID x 1mm Width

- small

1шт.

23

S109852

O-RING,15.3mm ID x 2.4mm Width

- large

1шт.

24

N60045

SHOCK ABSORBER

SPRING ASSEMBLY - internal, do not disassemble

4шт.

25

NSS

NOT SOLD SEPARAT

SPOOL - control valve

4шт.

S116392

KIT

SPRING KIT - port end, Includes: Ref. 26 - 29

4шт.

26

NSS

NOT SOLD SEPARAT

SEAT - spring, spool end

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING - port end

1шт.

28

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

29

NSS

NOT SOLD SEPARAT

SNAP RING - seat retaining

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.
