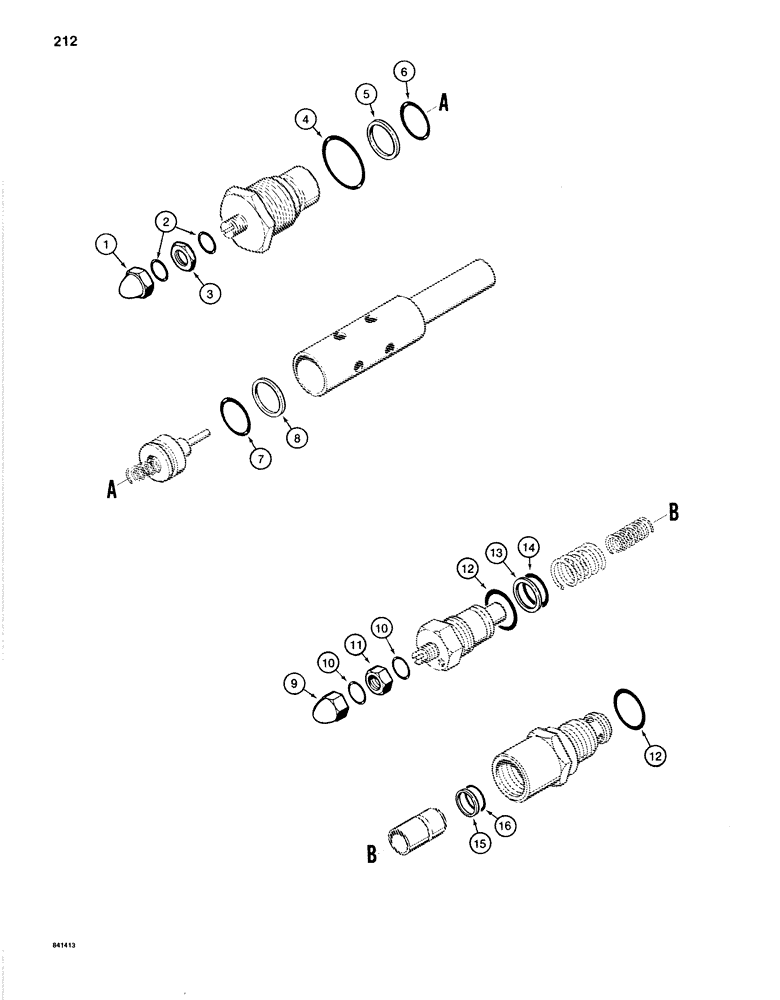

Запчасти Case 1280B (212) - MAIN RELIEF VALVE (08) - HYDRAULICS

S62112

CARTRIDGE

MAIN RELIEF VALVE ASSEMBLY - one spool control valve, Includes: Ref. 1 - 8

1шт.

1

S116073

CAP

DOME NUT - relief valve, used with one spool control valve

1шт.

2

N8538

O-RING,0.426" ID x 0.566" OD x 0.07"

- adjusting screw nuts, used with one spool control valve

2шт.

3

S116072

JAM NUT

JAM NUT - adjusting screw, used with one spool control valve

1шт.

4

N8556

O-RING,1" ID x 1-1/4" OD x 1/8"

- cartridge, outer, used with one spool control valve

1шт.

5

S84196

BACK-UP RING,9/16" ID x 3/4" OD x 0.052"

BACKUP RING - inner cartridge O-ring, used with one spool control valve

1шт.

6

A64436

O-RING,0.549" ID x 0.755" OD

- cartridge, inner, used with one spool control valve

1шт.

7

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- poppet, used with one spool control valve

1шт.

8

S84098

BACK-UP RING,1/2" ID x 11/16" OD

BACKUP RING - poppet O-ring, used with one spool control valve

1шт.

S237783

VALVE

MAIN RELIEF VALVE - cartridge assembly, complete, Includes: Ref. 9 - 16

1шт.

S117194

SEAL KIT

SEAL KIT - main relief valve, Includes: Ref. 9 - 16

1шт.

9

S116073

CAP

DOME NUT - adjusting screw, used with four spool main control valve

1шт.

10

N8538

O-RING,0.426" ID x 0.566" OD x 0.07"

- outer, used with four spool main control valve

2шт.

11

S116072

JAM NUT

JAM NUT - adjusting screw, used with four spool main control valve

1шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug to cartridge and cartridge to valve body, used with four spool main control valve

2шт.

13

S83071

BACK-UP RING

BACKUP RING - inner plug O-ring, used with four spool main control valve

1шт.

14

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

- inner plug, used with four spool main control valve

1шт.

15

C11865

RING

BACKUP RING - poppet O-ring, used with four spool main control valve

1шт.

16

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- poppet, used with four spool main control valve

1шт.
