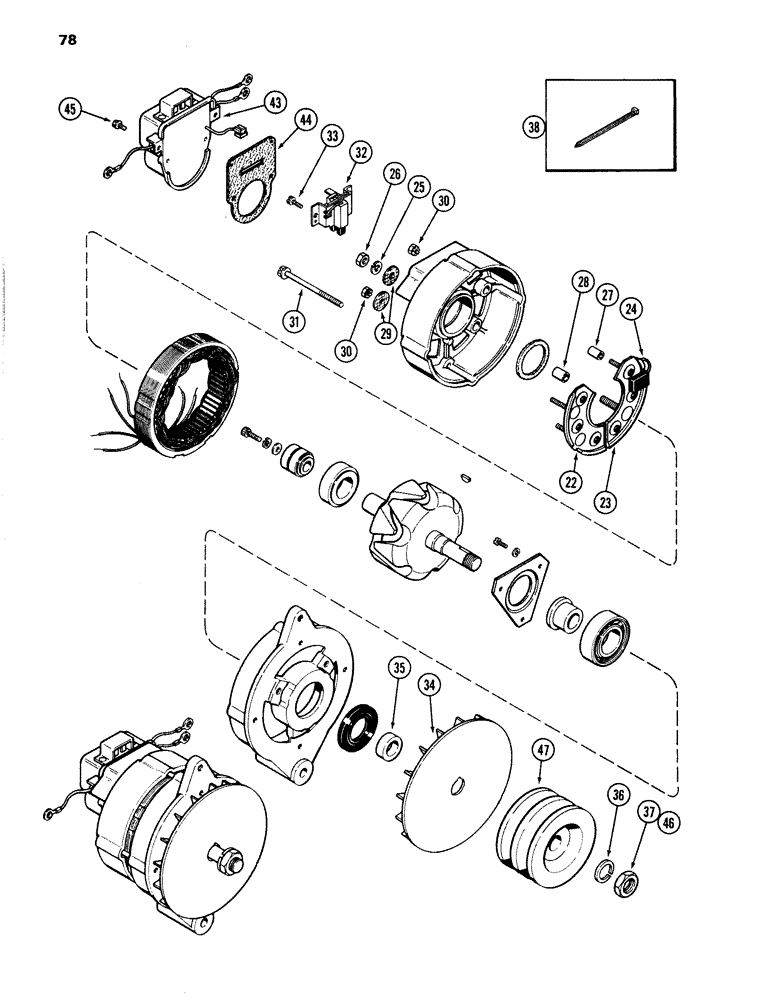

Запчасти Case 1280 (078) - R36587 ALTERNATOR, 504BDT DIESEL ENGINE (06) - ELECTRICAL SYSTEMS

1

R36587

ALTERNATOR

ALTERNATOR ASSEMBLY - , Includes: Ref. 22 - 35 Figure 76)

1шт.

1

87297298

REMAN-ALTERNATOR

For N.A. only

1шт.

1

87297299

CORE-ALTERNATOR

Return number - For N.A. only

1шт.

22

A47165

DIODE

RECTIFIER ASSEMBLY - negative, with diodes and studs, Serial Range: (anode-plate)

1шт.

23

A47164

DIODE

RECTIFIER ASSEMBLY - positive, with diodes and studs, Serial Range: (cathode-plate)

1шт.

24

A45253

DIODE ELEMENT

DIODE ASSEMBLY - trio

1шт.

25

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

26

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 NC

3шт.

26

129-141

JAM NUT,Jam, 1/4"-20, G5

NUT, Jam, 1/4"-20, G5

1шт.

27

A45254

SPACER

SPACER - trio diode

1шт.

28

A44771

SLEEVE CYLINDER

SLEEVE - insulator, 1/4 x 5/16 x 1/2 inch

1шт.

28

A47156

SLEEVE CYLINDER

SLEEVE - insulator, 3/16 x 1/4 x 3/8 inch

1шт.

29

A47613

WASHER

WASHER - insulating, 1/4 x 3/4 x 1/16 inch

2шт.

29

A47612

WASHER

WASHER - insulating, 3/16 x 3/4 x 1/16 inch

2шт.

30

A41060

LOCK NUT

NUT - hex, shakeproof, No 10-24

3шт.

31

A45030

BOLT

BOLT - No. 10 NF x 4 inch

4шт.

32

A41048

BRUSH, COMMUTATOR

BRUSH BRUSH ASSEMBLY - with holder

1шт.

33

A44780

SCREW

SCREW - brush holder to rear housing

2шт.

34

A42431

FAN

FAN - ventilating

1шт.

35

A47162

SPACER

SPACER - fan

1шт.

36

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Includes: Ref. 37 5/8"

1шт.

37

A41035

NUT

NUT - pulley retaining (used with CASE engine)

1шт.

S114639

NUT

SPARE PART NUT - pulley retaining (used with DETROIT Diesel engine), Includes: Ref. 38

1шт.

38

T54520

STRAP

WRAP - wire locking, nylon tie

1шт.

42

A41361

PULLEY

PULLEY - used with CASE engine

1шт.

S513579

PULLEY

PULLEY - used with DETROIT Diesel engine

1шт.

43

A47167

REGULATOR

REGULATOR ASSEMBLY - voltage

1шт.

44

A47159

GASKET

GASKET - regulator to rear housing

1шт.

45

182-519

SCREW,Sl Pan Hd, #4 - 40 x 3/16"

SCREW - regulator mounting, self tapping, No. 8-32 x 1/2 inch

4шт.

45

187-1089

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/4"

SCREW - regulator mounting, hex, slotted washer head, No 8-32 x 3/4 inch

2шт.

46

S114639

NUT

SPARE PART NUT - pulley retaining (used with DETROIT Diesel engine)

1шт.

47

A41361

PULLEY

PULLEY - used with CASE engine

1шт.

S513570

SPARE PART PULLEY - used with DETROIT Diesel engine

1шт.
