Запчасти Case 1280 (290) - CAB, WINDSHIELD (05) - UPPERSTRUCTURE CHASSIS

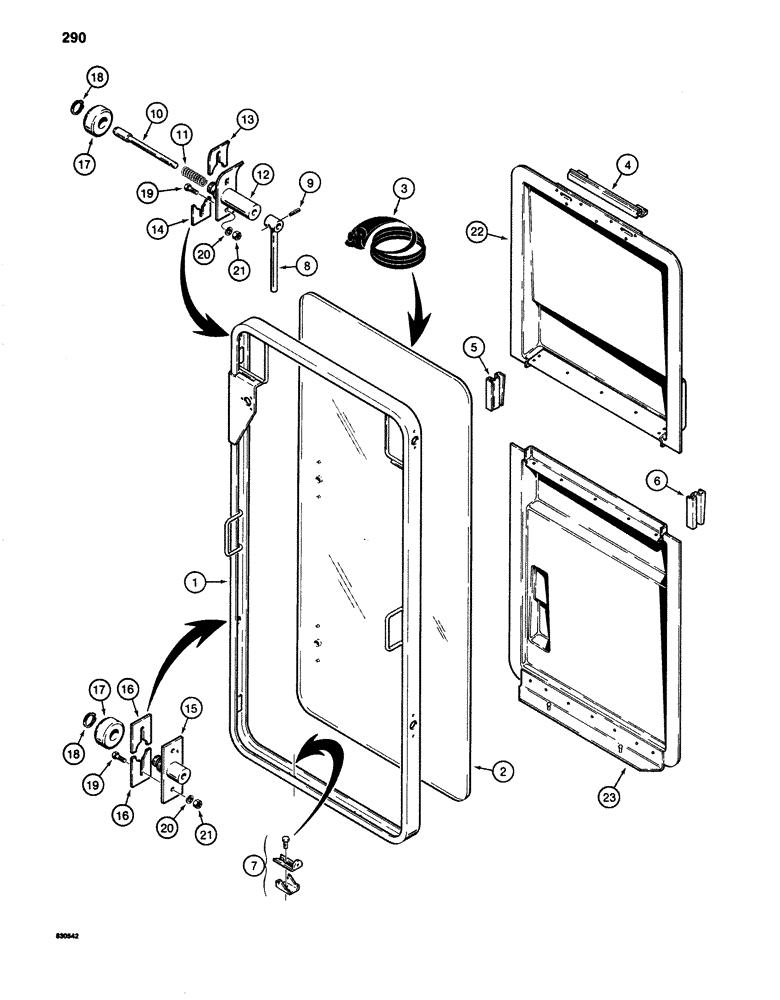

Схема запчастей Case 1280 - (290) - CAB, WINDSHIELD (05) - UPPERSTRUCTURE CHASSIS

Артикул

Название

Примечание

Количество

1

N60255

FRAME

- windshield

1шт.

2

S617808

GLASS,CAB

GLASS - windshield

1шт.

3

REF

INSTRUCTION

SEAL - glass, windshield, 180" (4572 mm) long, cut from S118478

1шт.

4

N60101

RETAINER

- vandal guard, upper

1шт.

5

N60287

RETAINER

- vandal guard, left-hand

1шт.

6

N60288

RETAINER

- vandal guard, right-hand

1шт.

7

N60093

RETAINER

- vandal guard, lower

2шт.

8

S239621

HANDLE

- windshield lock

2шт.

9

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

2шт.

10

S239677

PIN

- windshield lock

2шт.

11

A58271

SPRING

- lock pin

2шт.

12

S239686

SHAFT

BRACKET - support, upper roller

2шт.

13

S118726

SHIM

- upper roller bracket, curved

1шт.

14

S118727

SHIM

- upper roller bracket, straight

1шт.

15

N60272

SHAFT

BRACKET - support, lower roller

2шт.

16

S118725

SHIM

- lower roller bracket

1шт.

17

S240612

ROLLER

- windshield track

4шт.

18

T25683

SNAP RING,#75, Ext

RING, Snap, , roller #75, Ext

4шт.

19

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

20

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

21

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

22

S616525

GUARD

- vandal, upper

1шт.

23

S616524

GUARD

- vandal, lower

1шт.

S118478

SEAL

- glass, windshield, bulk, 180" (4572 mm) long

1шт.

Выбрано товаров: 24
