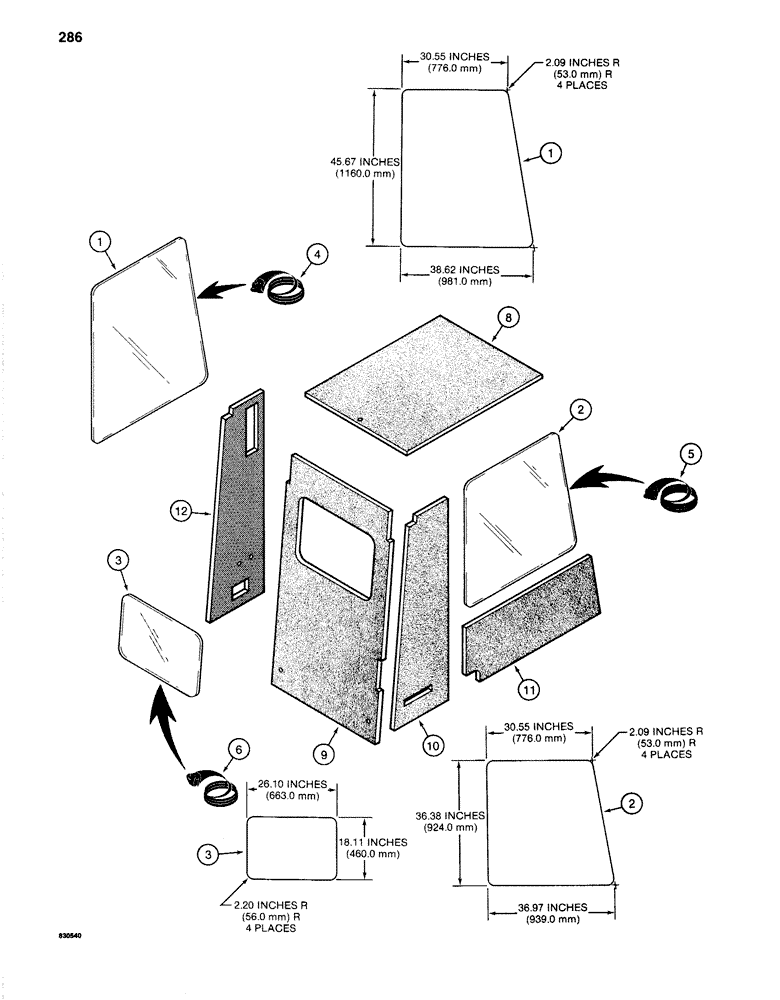

Запчасти Case 1280 (286) - CAB, WINDOWS, SEALS, AND INSULATION (05) - UPPERSTRUCTURE CHASSIS

1

REF

INSTRUCTION

GLASS - window, in door, included in S956671 door assembly

1шт.

Replacement to be obtained from local source. Material to be 1/4" (6.35 mm) thick Lexon, bronze tint with crowned edges.

1шт.

2

REF

INSTRUCTION

GLASS - window, right-hand

1шт.

Replacement to be obtained from local source. Material to be 1/4" (6.35 mm) thick Lexon, bronze tint with crowned edges.

1шт.

3

REF

INSTRUCTION

GLASS - window, rear

1шт.

Replacement to be obtained from local source. Material to be 1/4" (6.35 mm) thick Lexon, bronze tint with crowned edges.

1шт.

4

REF

INSTRUCTION

SEAL - glass, used with cab door window, 77" (1956 mm) long, cut from S118468, see below

1шт.

5

REF

INSTRUCTION

SEAL - glass, used with right-hand cab window, 163" (4140 mm) long, cut from S118468, see below

1шт.

6

REF

INSTRUCTION

SEAL - glass, used with rear cab window, 83-3/8" (2116 mm) long, cut from S118477, see below

1шт.

8

S241506

INSULATOR

INSULATION - cab, top

1шт.

9

S516036

INSULATOR

INSULATION - cab, rear

1шт.

10

S241504

INSULATOR

INSULATION - cab, right-hand, rear

1шт.

11

S241505

INSULATOR

INSULATION - cab, right-hand, front

1шт.

12

S241530

INSULATOR

INSULATION - cab, left-hand

1шт.

S118468

SEAL

- window glass, bulk, 600" (15240 mm) long

1шт.

N6492

GASKET

- window glass, bulk, 600" (15240 mm) long

1шт.

S516738

WINDOW

sliding, rear

1шт.
