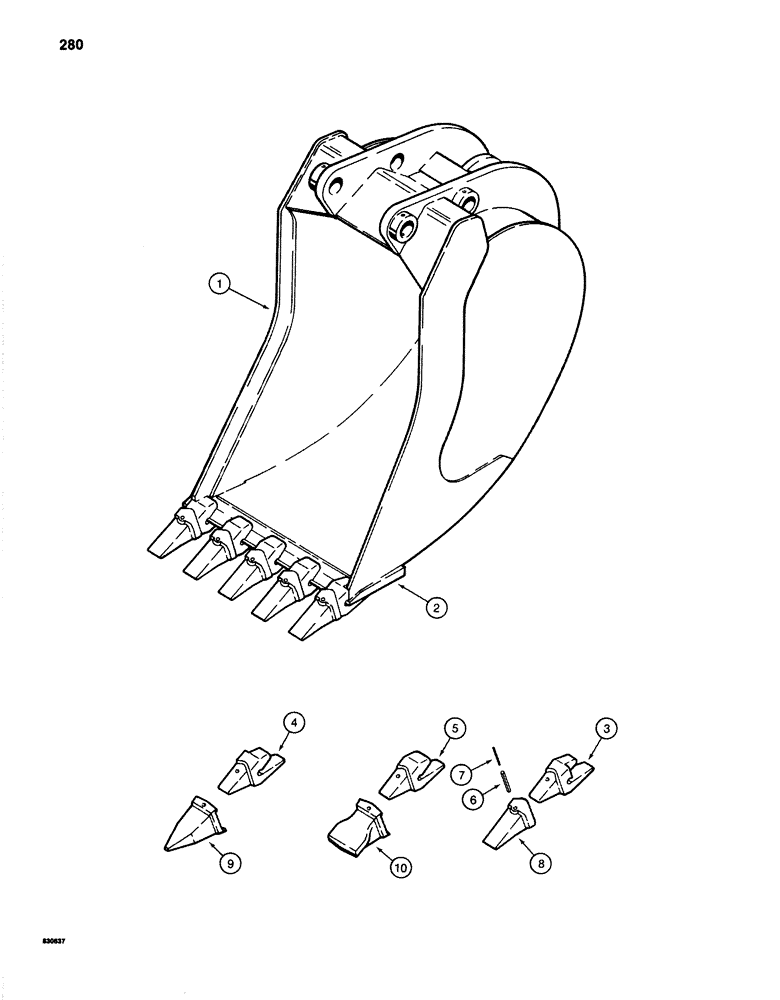

Запчасти Case 1280 (280) - BACKHOE BUCKETS, HIGH CAPACITY (05) - UPPERSTRUCTURE CHASSIS

1

S956682

BUCKET - 36" (914 mm), machinery item, see Figure 002 for ordering, Includes: Ref. 2 - 5

1шт.

2

S239201

EDGE

CUTTING EDGE - bucket

1шт.

3

S615006

SHANK, BUCKET TOOTH

SHANK - tooth, right-hand

1шт.

4

S615007

SHANK, BUCKET TOOTH

SHANK - tooth, left-hand

1шт.

5

S615005

SHANK, BUCKET TOOTH

SHANK - tooth, center

3шт.

S239749

ROLL PIN

ASSEMBLY - tooth point, Includes: Ref. 6 and 7

1шт.

6

138-214

LOCK PIN,1/2" x 4", Slotted

PIN, 1/2" x 4", Slotted

1шт.

7

REF

INSTRUCTION

PLUG - rubber, 4" long, cut from S119223, see below

1шт.

8

S615004

POINT

- tooth, standard

1шт.

9

S615023

POINT

- tooth, rock, optional

1шт.

10

S615022

POINT

- tooth, spade, optional

1шт.

S119223

RUBBER

PLUG - rubber, 48" (1219 mm) long strip

1шт.
