Запчасти Case 1280 (278) - BACKHOE BUCKETS, SEVERE DUTY (05) - UPPERSTRUCTURE CHASSIS

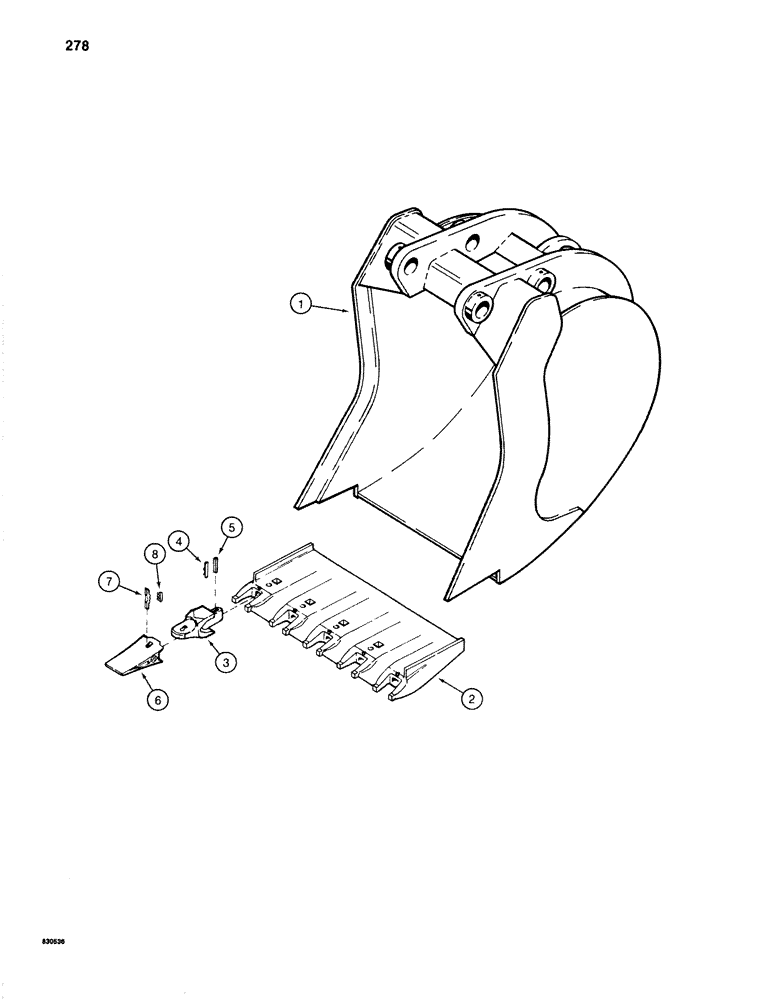

Схема запчастей Case 1280 - (278) - BACKHOE BUCKETS, SEVERE DUTY (05) - UPPERSTRUCTURE CHASSIS

Артикул

Название

Примечание

Количество

1

S956677

BUCKET - 25" (635 mm), machinery item, see Figure 002 for ordering, Includes: Ref. 2

1шт.

2

S98400

EDGE

CUTTING EDGE - bucket

1шт.

1

S956676

BUCKET - 36" (914 mm), machinery item, see Figure 002 for ordering, Includes: Ref. 2

1шт.

2

S98402

LIP

CUTTING EDGE - bucket

1шт.

1

S956675

BUCKET - 42" (1066 mm), machinery item, see Figure 002 for ordering, Includes: Ref. 2

1шт.

2

S98404

CUTTING EDGE - bucket

1шт.

3

S91258

ADAPTER

SHANK - tooth

1шт.

4

S110285

WEDGE

- tooth shank

1шт.

5

S110286

SPOOL

- tooth shank

1шт.

6

S91259

POINT

- tooth

1шт.

7

S91265

PIN

RETAINER PIN - tooth point

1шт.

8

S90192

LOCK

- retainer pin

1шт.
