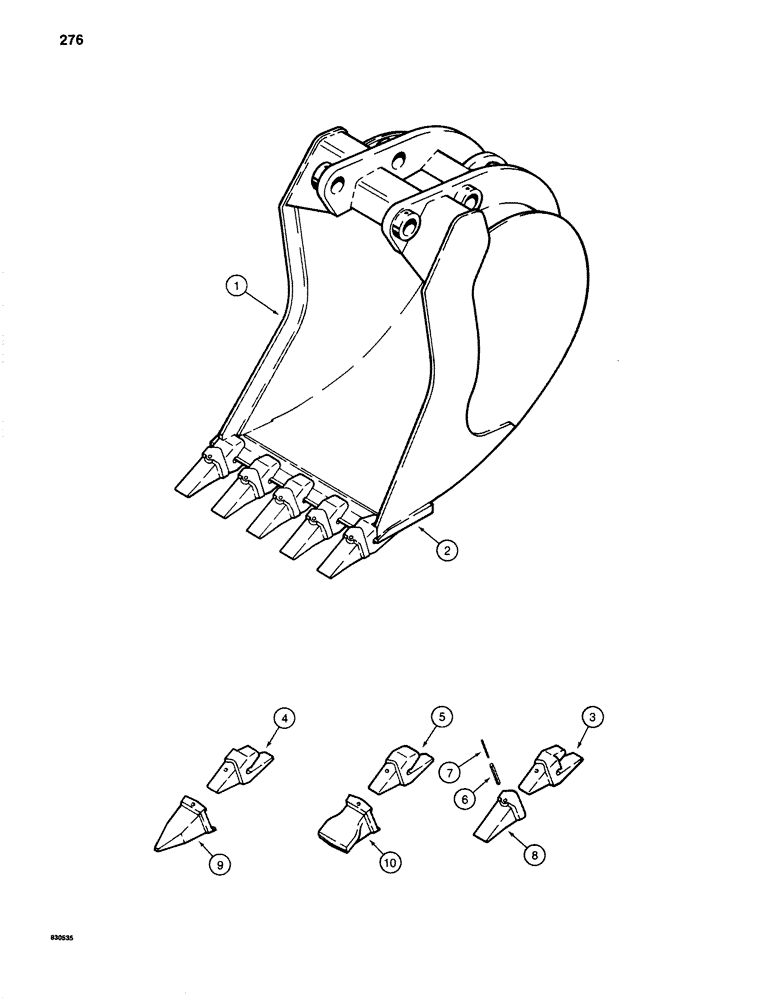

Запчасти Case 1280 (276) - BACKHOE BUCKETS, GENERAL PURPOSE (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
S956583
BUCKET - 25" (635 mm), machinery item, see Figure 002 for ordering, Includes: Ref. 2 - 5
1шт.
2
S239199
EDGE
CUTTING EDGE - bucket
1шт.
3
S615006
SHANK, BUCKET TOOTH
SHANK - tooth, right-hand
1шт.
4
S615007
SHANK, BUCKET TOOTH
SHANK - tooth, left-hand
1шт.
5
S615005
SHANK, BUCKET TOOTH
SHANK - tooth, center
1шт.
1
S956584
BUCKET - 30" (762 mm), machinery item, see Figure 002 for ordering, Includes: Ref. 2 - 5
1шт.
2
S239200
EDGE
CUTTING EDGE - bucket
1шт.
3
S615006
SHANK, BUCKET TOOTH
SHANK - tooth, right-hand
1шт.
4
S615007
SHANK, BUCKET TOOTH
SHANK - tooth, left-hand
1шт.
5
S615005
SHANK, BUCKET TOOTH
SHANK - tooth, center
2шт.
1
S956585
BUCKET - 36" (914 mm), machinery item, see Figure 002 for ordering, Includes: Ref. 2 - 5
1шт.
2
S239201
EDGE
CUTTING EDGE - bucket
1шт.
3
S615006
SHANK, BUCKET TOOTH
SHANK - tooth, right-hand
1шт.
4
S615007
SHANK, BUCKET TOOTH
SHANK - tooth, left-hand
1шт.
5
S615005
SHANK, BUCKET TOOTH
SHANK - tooth, center
3шт.
1
S956586
BUCKET - 42" (1066 mm), machinery item, see Figure 002 for ordering, Includes: Ref. 2 - 5
1шт.
2
S239202
EDGE, CUTTING
CUTTING EDGE - bucket
1шт.
3
S615006
SHANK, BUCKET TOOTH
SHANK - tooth, right-hand
1шт.
4
S615007
SHANK, BUCKET TOOTH
SHANK - tooth, left-hand
1шт.
5
S615005
SHANK, BUCKET TOOTH
SHANK - tooth, center
4шт.
1
S956681
BUCKET - 48" (1219 mm), machinery item, see Figure 002 for ordering, Includes: Ref. 2 - 5
1шт.
2
S241588
EDGE
CUTTING EDGE - bucket
1шт.
3
S615006
SHANK, BUCKET TOOTH
SHANK - tooth, right-hand
1шт.
4
S615007
SHANK, BUCKET TOOTH
SHANK - tooth, left-hand
1шт.
5
S615005
SHANK, BUCKET TOOTH
SHANK - tooth, center
4шт.
S239749
ROLL PIN
ASSEMBLY - tooth point, Includes: Ref. 6 and 7
1шт.
6
138-214
LOCK PIN,1/2" x 4", Slotted
PIN, 1/2" x 4", Slotted
1шт.
7
REF
INSTRUCTION
PLUG - rubber, 4" long, cut from S119223, see below
1шт.
8
S615004
POINT
- tooth, standard
1шт.
9
S615023
POINT
- tooth, rock, optional
1шт.
10
S615022
POINT
- tooth, spade, optional
1шт.
S119223
RUBBER
PLUG - rubber, 48" (1219 mm) long strip
1шт.
Выбрано товаров: 32
