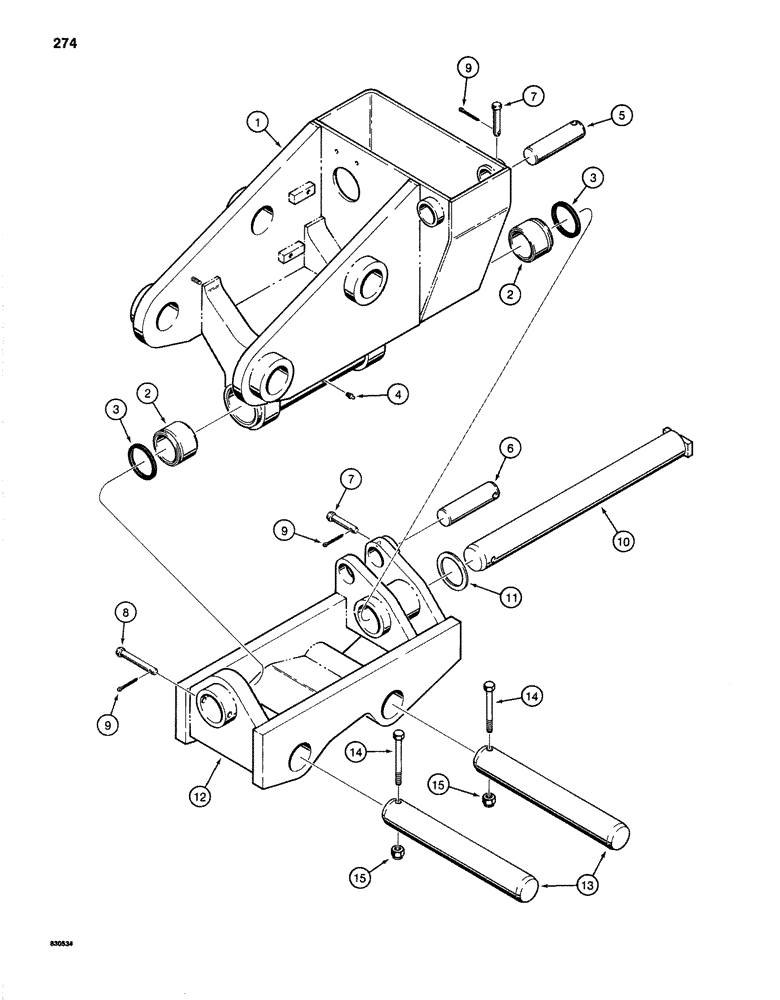

Запчасти Case 1280 (274) - WRIST-O-TWIST (05) - UPPERSTRUCTURE CHASSIS

1

S617813

FRAME ASSY

FRAME ASSEMBLY - mounting, wrist-o-twist, Includes: Ref. 2

1шт.

2

S240344

BUSHING

- pivot, at hinge

2шт.

3

S240665

OIL SEAL

- grease, frame at hinge pin

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

5

S237768

PIN

- mounting, at closed end of cylinder

1шт.

6

S237768

PIN

- mounting, at rod end of cylinder

1шт.

7

S10784

PIN

CLEVIS PIN - cylinder pins to frame and hinge

2шт.

8

S61976

CLEVIS PIN

- hinge, Serial Range: pin-hinge

1шт.

9

132-71

COTTER PIN,5/32" x 1 1/4"

PIN, Split (Cotter), 5/32" x 1 1/4"

3шт.

10

S241556

PIN

- mounting, Serial Range: frame-hinge

1шт.

11

S119238

SHIM,3mm Thk

Mounting frame to hinge 3mm Thk

1шт.

12

S617814

HINGE

- mounting, tool

1шт.

13

S240343

PIN

-, Serial Range: hinge-tool

2шт.

14

826-12150

BOLT,Hex, M12 x 1.75 x 150mm, Cl 10.9

BOLT - hex head, 12 mm - 1.75 x 150 mm (8.8)

2шт.

15

S118774

NUT

- hex, self-locking, 12 mm - 1.75

2шт.
