Запчасти Case 1280 (264) - OPTIONAL SECURITY COVERS (05) - UPPERSTRUCTURE CHASSIS

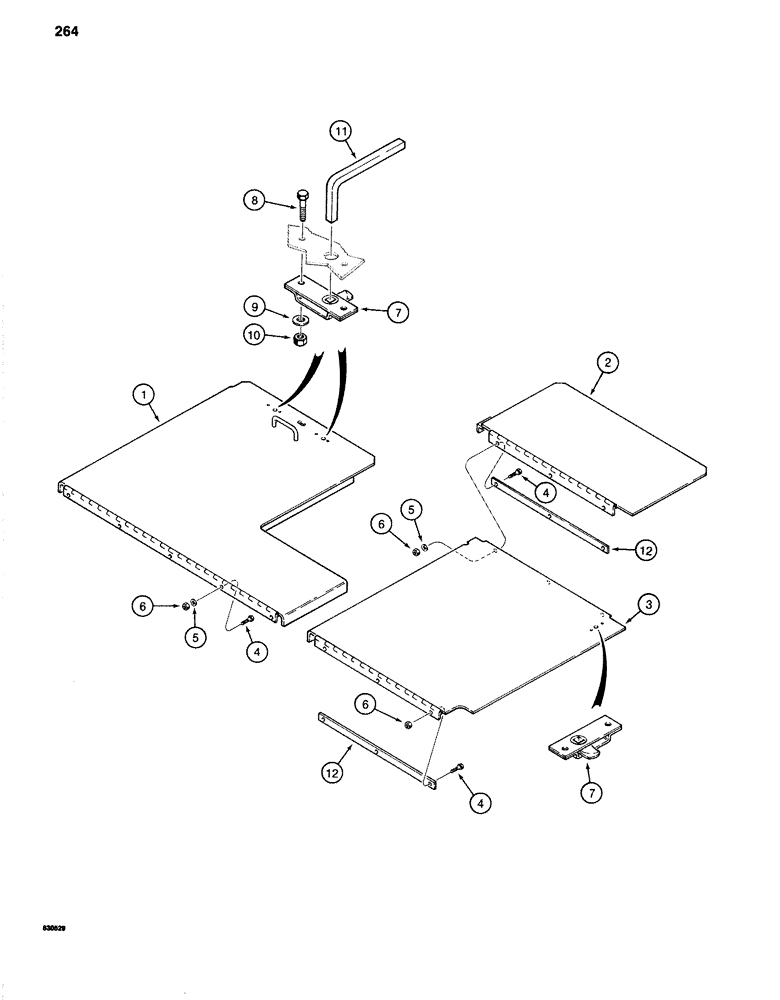

Схема запчастей Case 1280 - (264) - OPTIONAL SECURITY COVERS (05) - UPPERSTRUCTURE CHASSIS

Артикул

Название

Примечание

Количество

1

S617917

DOOR

- upper left, valve area

1шт.

2

S516114

DOOR

- upper right front, fuel tank area

1шт.

3

S516113

DOOR

- upper right rear, battery area

1шт.

4

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

11шт.

5

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8", hardened

8шт.

6

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

11шт.

7

S110414

LOCK

- door, security

3шт.

8

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

6шт.

9

195-103

WASHER,5/16"

- flat, , plated 5/16"

6шт.

10

131-461

LOCK NUT,1/4"-20

NUT - hex, self-locking, 1/4" - 20 NC

6шт.

11

S115083

KEY

- lock, security

1шт.

12

S238704

STRIP

- reinforcement, S516113 and S516114 doors

2шт.

Выбрано товаров: 12
