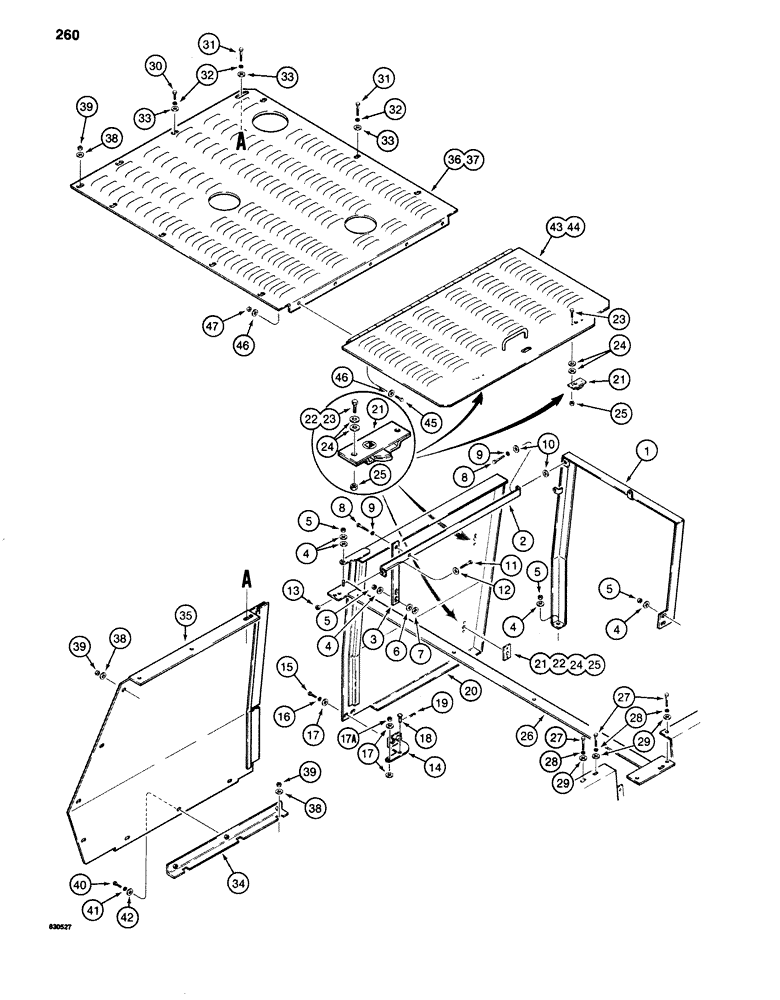

Запчасти Case 1280 (260) - ENGINE COVER AND LEFT-HAND SIDE PANELS (05) - UPPERSTRUCTURE CHASSIS

1

S956141

BRACE - vertical, left-hand door, front

1шт.

2

S241833

BRACE

- horizontal, left-hand door

1шт.

3

S241534

BRACE

- vertical, left-hand door, rear

1шт.

4

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened

7шт.

5

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

6шт.

6

S95569

WASHER

- flat, 1/2", hardened

2шт.

7

195-45

WASHER,3/4"

SPACER - brace to turntable

2шт.

8

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened

2шт.

11

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

12

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened

1шт.

13

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

14

S513498

BRACKET

HINGE - left-hand door, lower

1шт.

15

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

17

S95569

WASHER

- flat, 1/2", hardened

4шт.

17a

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

18

S10775

PIN

CLEVIS PIN - door holder

1шт.

19

A70250

PIN

- retainer, clevis

1шт.

20

S618041

DOOR ASSY.

DOOR - access, left front

1шт.

21

S110414

LOCK

- door, left front and top

4шт.

22

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

23

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

24

195-103

WASHER,5/16"

- flat, 1/4"

1шт.

25

131-461

LOCK NUT,1/4"-20

NUT - hex, self-locking, 1/4" - 20 NC

8шт.

26

S618242

BRACKET

- support, left and right shroud

1шт.

27

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

28

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

29

S95569

WASHER

- flat, 1/2", hardened

3шт.

30

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

31

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

5шт.

32

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

7шт.

33

S95569

WASHER

- flat, 1/2", hardened

7шт.

34

S241488

BRACKET

- left rear, Serial Range: shroud-turntable

1шт.

35

S617771

SHROUD

- engine, left rear

1шт.

36

S617778

COVER

- engine, top, used with Case engine

1шт.

37

S617776

COVER

- engine, top, used with Detroit Diesel engine

1шт.

38

S95569

WASHER

- flat, 1/2", hardened

12шт.

39

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

12шт.

40

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3шт.

41

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

42

S95569

WASHER

- flat, 1/2", hardened

3шт.

43

S618157

TOP

DOOR - access, top, used with Case engine

1шт.

44

S617775

TOP

DOOR - access, top, used with Detroit Diesel engine

1шт.

45

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

46

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8", hardened

10шт.

47

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

5шт.
