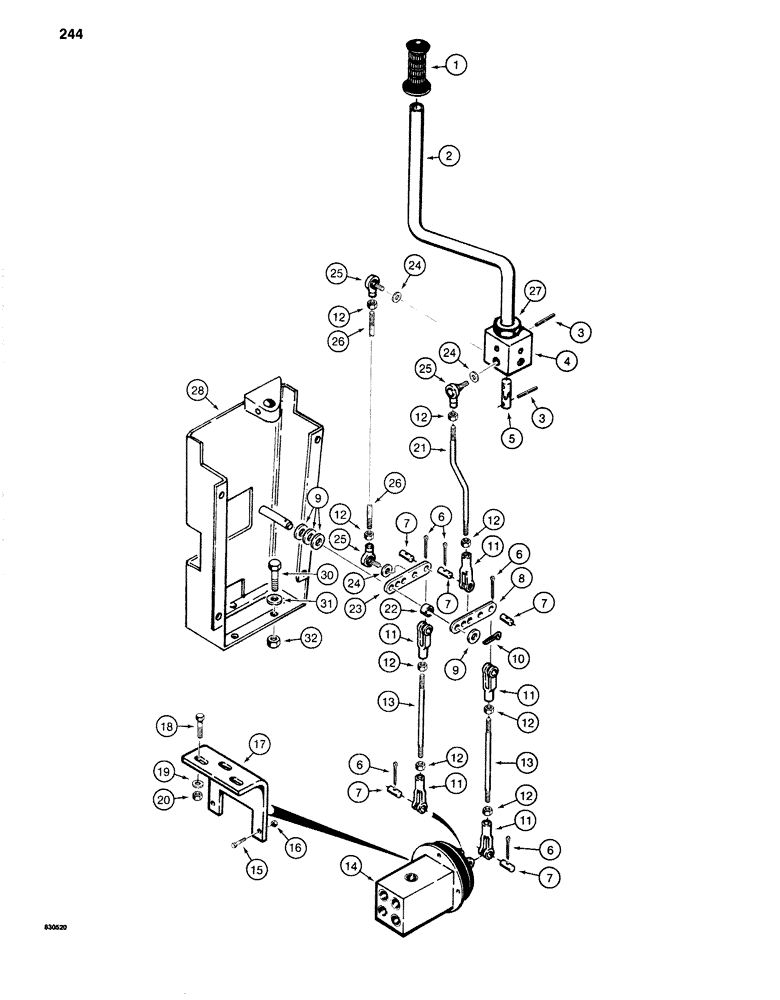

Запчасти Case 1280 (244) - HAND LEVER CONTROLS (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
S109220
GRIP
- control lever, Replaced by S119987 grip and 353-406 plug
2шт.
2
S514719
HANDLE
CONTROL LEVER - right-hand and left-hand
2шт.
3
138-136
LOCK PIN,1/4" x 1 1/4", Slotted
PIN, 1/4" x 1 1/4", Slotted
4шт.
4
S514718
BLOCK
- pivot, lever
2шт.
5
S238874
SWIVEL CONNECTION
UNIVERSAL JOINT - control lever
2шт.
6
132-52
COTTER PIN,1/8" x 1 1/2"
PIN, Split (Cotter), 1/8" x 1 1/2"
10шт.
7
S105940
PIN,11.02mm OD x 22.23mm L
-, Serial Range: lever-link
10шт.
8
S238601
LINKAGE
LINK -, Serial Range: lever-clevis
2шт.
9
195-33
WASHER,1/2"
- flat, 9/16"
1шт.
10
132-48
COTTER PIN,1/8" x 1"
PIN, Split (Cotter), 1/8" x 1"
2шт.
11
S66383
YOKE
CLEVIS - lever adjustment
10шт.
12
86585245
SPECIAL NUT,JAM, 5/8" - 18
JAM NUT - hex, 3/8" - 24 NF
16шт.
13
S81828
ROD
- control lever, straight
4шт.
14
S513193
VALVE
CONTROL VALVE - hand lever, parts list Figure 214
2шт.
15
113-4
BOLT,Hex, 1/4" - 20 x 1", Gr 5
6шт.
16
86625061
NUT,1/4"-20, GB
NUT - hex, self-locking, 1/4" - 20 NC
6шт.
17
S513598
BRACKET
- mounting, control valve
2шт.
18
113-233
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
6шт.
19
196-5
WASHER,13/32" x 1 1/16" x .095", HDN
- flat, 3/8", hardened
6шт.
20
131-52
NUT,3/8"-16, GC
NUT - hex, self-locking, 3/8" - 16 NC
6шт.
21
S236859
ROD
- control lever, bent
2шт.
22
S114640
SPACER
- control lever link
2шт.
23
S238602
LINKAGE
LINK - lever to clevis and ball joint
2шт.
24
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
6шт.
25
S236680
BALL JOINT
- control lever
6шт.
26
S91953
ROD
- control lever, at ball joints
2шт.
27
425-1410
JAM NUT,Jam, 5/8"-11, G5
JAM NUT - hex, 5/8" - 11 NC
2шт.
28
S615728
SUPPORT
- hand control, left-hand
1шт.
29
S615677
SUPPORT
- hand control, right-hand, not shown
1шт.
30
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
6шт.
31
195-104
WASHER,3/8"
- flat, 7/16"
6шт.
32
131-52
NUT,3/8"-16, GC
NUT - hex, self-locking, 3/8" - 16 NC
6шт.
Выбрано товаров: 32
