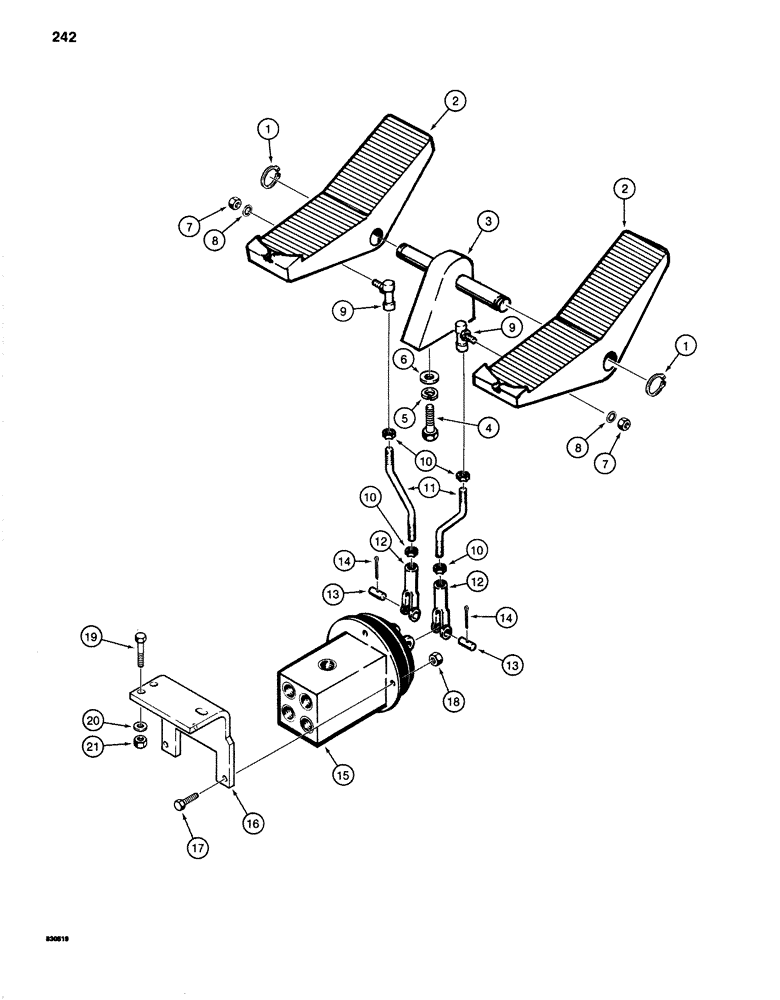

Запчасти Case 1280 (242) - FOOT PEDAL CONTROLS (05) - UPPERSTRUCTURE CHASSIS

1

D95096

SNAP RING,M15.88 x 1.27mm Thk

RETAINING RING - foot pedal

4шт.

2

S615523

PEDAL

- foot control

4шт.

3

S239280

BRACKET

- mounting, foot pedal

2шт.

4

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

6

196-20

WASHER,41/64" x 1.047" x .134", HDN

- flat, 5/8", hardened, if used

4шт.

7

131-493

NUT

- hex, self-locking, 3/8" - 24 NF

4шт.

8

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

9

S215594

BALL

JOINT - at foot pedal

4шт.

10

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - hex, 3/8" - 24 NF

8шт.

11

S236860

ROD

- control, foot pedal

4шт.

12

S66383

YOKE

CLEVIS - control rod, at valve

4шт.

13

S105940

PIN,11.02mm OD x 22.23mm L

CLEVIS PIN - at valve

4шт.

14

132-52

COTTER PIN,1/8" x 1 1/2"

PIN, Split (Cotter), 1/8" x 1 1/2"

4шт.

15

S513193

VALVE

CONTROL VALVE - foot pedal, parts list Figure 214

2шт.

16

S514596

BRACKET

- mounting, control valve

2шт.

17

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

6шт.

18

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

6шт.

19

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

6шт.

20

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8", hardened

6шт.

21

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

6шт.
