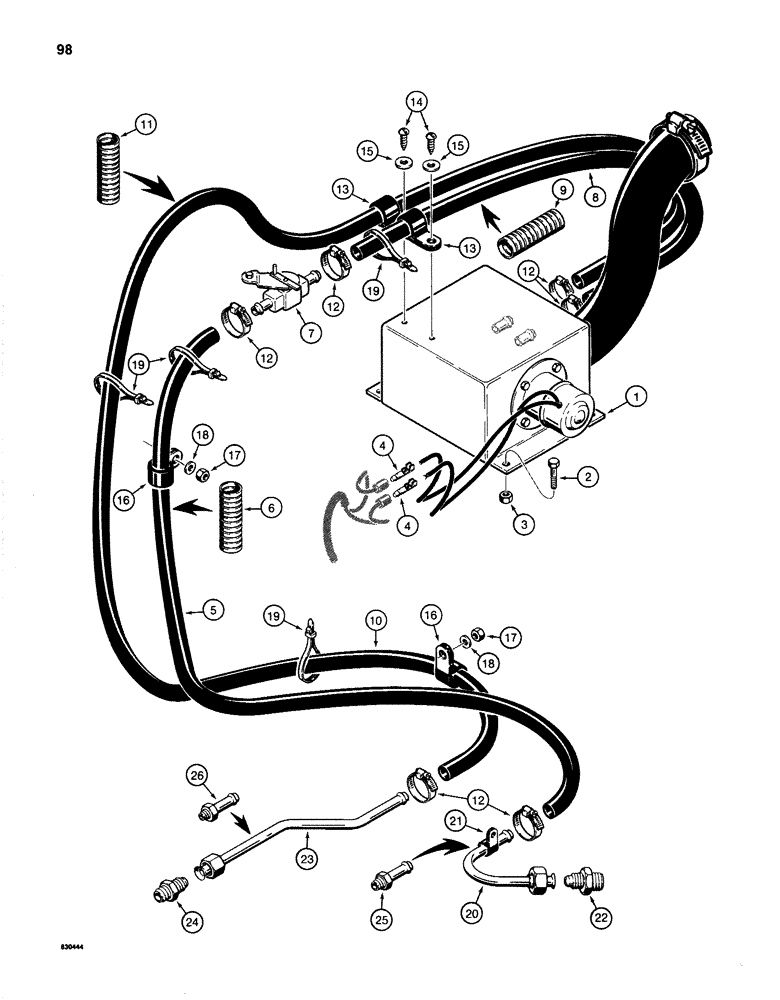

Запчасти Case 1280 (098) - HEATER AND HOSES (05) - UPPERSTRUCTURE CHASSIS

1

S239156

HEATER

ASSEMBLY - parts list Figure 100

1шт.

2

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

3

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

4

223-191

TERMINAL CONNECTOR,14 - 16

CONNECTOR - electrical, female

2шт.

5

REF

INSTRUCTION

HOSE - engine to shutoff valve, used with Case engine, 5/8" (16 mm)

1шт.

ID x 110" (2794 mm) long, cut from A42610, see below HOSE - engine to shutoff valve, used with Detroit Diesel engine, 5/8"

1шт.

(16 mm) ID x 150" (3810 mm) long, cut from A42610, see below

1шт.

6

S119513

SLEEVE - hose, 1" (25 mm) ID x 75" (1905 mm) long

1шт.

7

S223937

VALVE

- heater shutoff

1шт.

8

REF

INSTRUCTION

HOSE - shutoff valve to heater, 5/8" (16 mm) ID x 24" (610 mm) long, cut from A42610, see below

1шт.

9

REF

INSTRUCTION

SLEEVE - hose, 1" (25 mm) ID x 22" (560 mm) long, cut from S118481, see below

1шт.

10

REF

INSTRUCTION

HOSE - heater outlet to engine, 5/8" (16 mm) ID x 150" (3810 mm) long, cut from A42610, see below

1шт.

11

S119514

PACKAGE

SLEEVE - hose, 1" (25 mm) ID x 94" (2383 mm) long

1шт.

12

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

6шт.

13

S15544

CLAMP,1 5/16", Insul, 3/8" Bolt

- hoses at top of heater

2шт.

14

187-331

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/4"

SCREW - self-tapping, No. 10 x 3/4"

2шт.

15

195-513

WASHER,#10

- flat, No 10

2шт.

16

R14668

CLAMP

- hoses

2-4шт.

17

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

18

195-525

WASHER,3/8", SAE

- flat, 3/8", if used

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

20

S232219

TUBE,0.62" OD x 3.06, 4.68" L

- engine outlet, Case engine only, special parts

1шт.

21

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- S232219 tube to engine, special parts used with case

1шт.

22

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

ADAPTER - straight, special parts used with case engine

1шт.

23

S231777

TUBE,0.62" OD x 3.85, 34.05" L

- return to engine, special parts used with case

1шт.

24

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, special parts used with case engine

1шт.

25

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

STEM FITTING - straight, engine outlet, special parts used with detroit diesel

1шт.

26

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

STEM FITTING - straight, return to engine, special parts used with detroit diesel

1шт.

A42610

LARGE HOSE

HOSE - bulk roll, 5/8" (16 mm) ID x 50' (1524 cm) long

1шт.

S118481

PACKAGE

SLEEVE - bulk roll, 1" (25 mm) ID x 60" (1524 mm) long

1шт.
