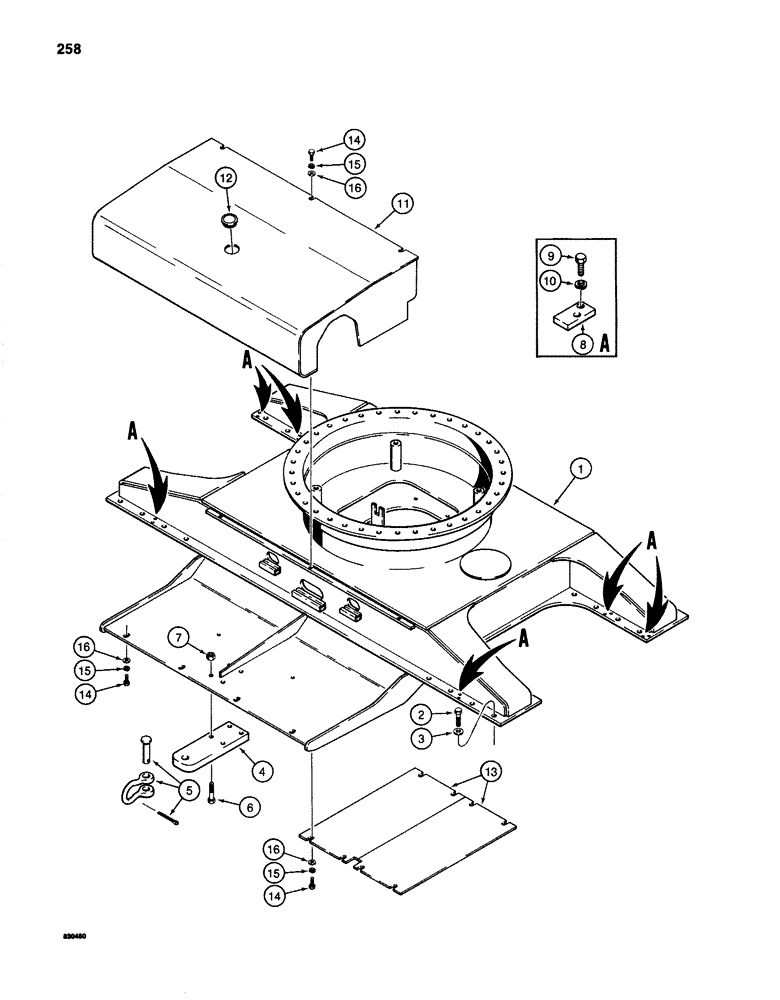

Запчасти Case 1280 (258) - UNDERCARRIAGE (04) - UNDERCARRIAGE

1

S610364

SUPPORT - bearing, turntable

1шт.

2

26-1440

CAPSCREW,Hex, 7/8" - 9 x 2 1/2", Gr 8

BOLT - hex head, 7/8" - 9 NC x 2-1/2", grade 8

32шт.

3

S92341

WASHER

- flat, 7/8", hardened

32шт.

4

S209710

PLATE

- drawbar

1шт.

5

240-11

SHACKLE

CLEVIS - drawbar, includes clevis pin and cotter pin

1шт.

6

113-731

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

- hex head, 3/4" - 10 NC x 3-1/4"

4шт.

7

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4" - 10 NC

4шт.

8

S110499

BAR - stop, track frame

6шт.

9

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

12шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

11

S614952

GUARD - drive motor

1шт.

12

S105894

CAP

PLUG - drive motor guard

1шт.

13

S229182

COVER - swivel guard, lower

2шт.

14

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

15шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

15шт.

16

195-105

WASHER,7/16"

- flat, 1/2"

15шт.
