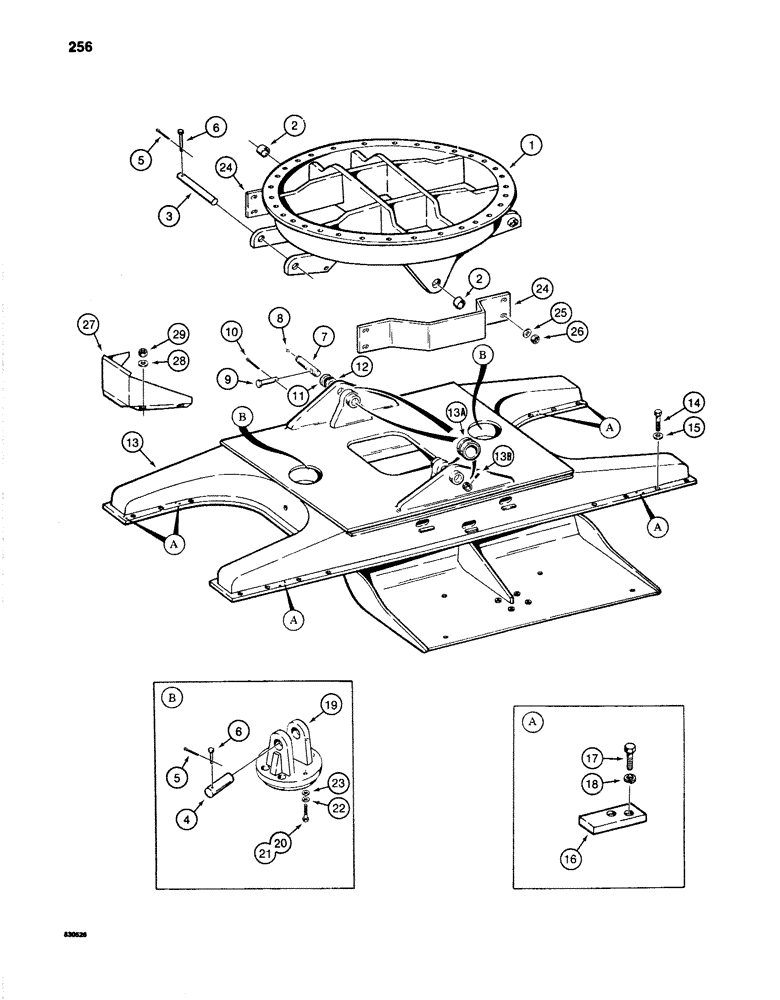

Запчасти Case 1280 (256) - OPTIONAL TURNTABLE LEVELER (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
1
S610362
LEVEL
ER - turntable, at bearing, Includes: Ref. 2
1шт.
2
S202192
BUSHING
- leveler
2шт.
3
S78554
PIN
- leveler cylinder to turntable leveler
2шт.
4
S108638
PIN
- leveler cylinder to mounting bracket
2шт.
5
132-69
COTTER PIN,5/32" x 1"
PIN, Split (Cotter), 5/32" x 1"
4шт.
6
S61973
AXLE PIN
CLEVIS PIN - 1/2" x 3-3/4"
4шт.
7
S241477
PIN
- turntable leveler to turntable platform
2шт.
8
219-1
LUBE NIPPLE,1/8" - 27 NPTF
GREASE FITTING - straight, 1/8" NPT
2шт.
9
S87319
PIN
CLEVIS PIN - used with S241477 pin
2шт.
10
132-311
COTTER PIN,5/32" x 1 1/4"
5/32" x 1 1/4"
2шт.
11
S111776
WASHER
- special, spacer, 1/8" thick
1шт.
12
S111778
WASHER
- special, spacer, 1/16" thick
1шт.
13
S955132
PLATFORM - turntable leveler, Includes: Ref. 13A and 13B
1шт.
13a
S241137
BUSHING
- platform
4шт.
13b
178-57
SET SCREW,Hex Soc, 3/8"-16 x 3/4"
- 3/8" - 16 NC x 3/4", cone point
4шт.
14
26-1440
CAPSCREW,Hex, 7/8" - 9 x 2 1/2", Gr 8
BOLT - hex head, 7/8" - 9 NC x 2-1/2", grade 8, at track frame
32шт.
15
S92341
WASHER
- flat, 7/8", hardened
32шт.
16
S110499
BLOCK - stop
6шт.
17
113-424
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
12шт.
18
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
12шт.
19
S617126
BRACKET
- leveler, Serial Range: cylinder-platform
2шт.
20
26-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8
6шт.
21
26-832
BOLT,Hex, 1/2" - 13 x 2", Gr 8
- hex head, 1/2" - 13 NC x 2", grade 8
2шт.
22
S95569
WASHER
- flat, 1/2", hardened
8шт.
23
S113313
SPACER
-, Serial Range: bracket-platform
2шт.
24
S611713
COVER
GUARD - hose, at leveler
2шт.
25
196-5
WASHER,13/32" x 1 1/16" x .095", HDN
- flat, 3/8", hardened
8шт.
27
S615046
GUARD
- dirt, leveler cylinder
2шт.
28
S95569
WASHER
- flat, 1/2", hardened
8шт.
29
131-70
NUT,1/2"-13, GB
NUT - hex, self-locking, 1/2" - 13 NC
8шт.
Выбрано товаров: 31
