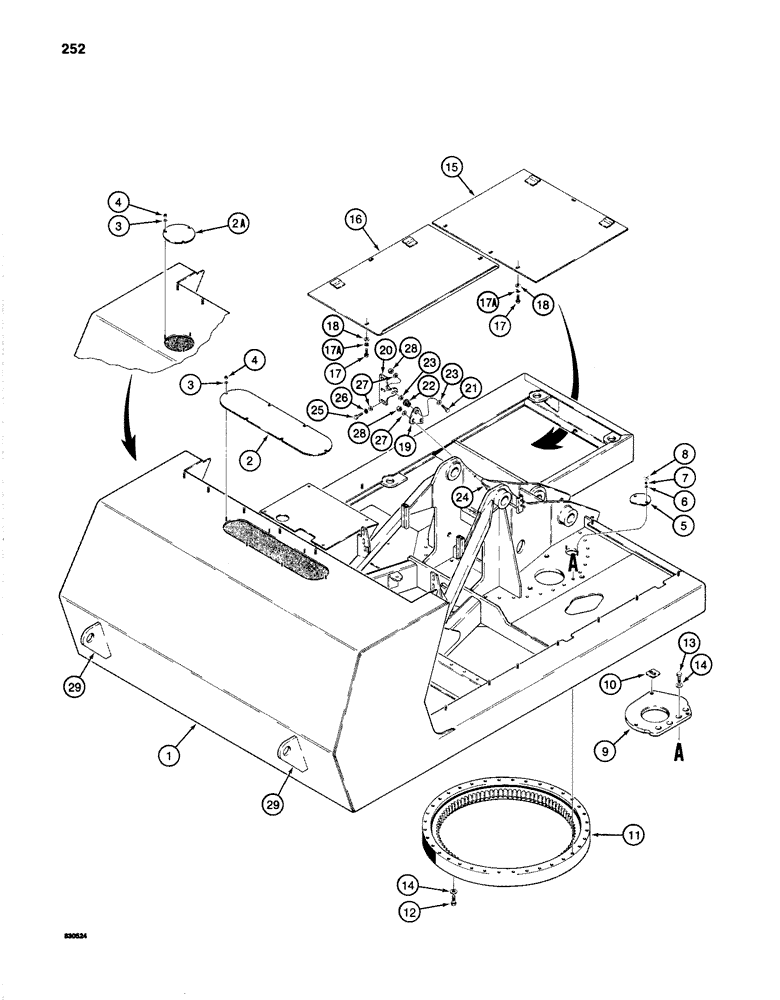

Запчасти Case 1280 (252) - TURNTABLE AND BEARING (04) - UNDERCARRIAGE

1

S956674

KIT

TURNTABLE - excavator

1шт.

2

S119301

PLATE

- cover, if used

1шт.

2a

S240424

PLATE

- cover, if used

2шт.

2b

345-84

ADHESIVE

SEALANT - for Refs. 2 or 2A, 3 oz. tube, not shown

1шт.

3

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

6шт.

4

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

6шт.

5

S76664

COVER

- bearing access

1шт.

6

195-103

WASHER,5/16"

- flat, 3/8"

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

S77941

NUT - wing, 3/8" - 16 NC

2шт.

9

S506965

SUPPORT

- swing gear box mounting, Serial Range: welded-turntable

1шт.

10

S84889

SHIM,.003" Thk

(.0762 mm), Swing gearbox mounting to turntable .003" Thk

1шт.

10

S77916

SHIM,.005" Thk

(.1270 mm), Swing gearbox mounting to turntable .005" Thk

1шт.

10

S84890

SHIM,.007" Thk

(.1778 mm), Swing gearbox mounting to turntable .007" Thk

1шт.

10

S77917

SHIM,.010" Thk

(.2540 mm), Swing gearbox mounting to turntable .010" Thk

1шт.

10

S77918

SHIM,.015" Thk

(.3810 mm), Swing gearbox mounting to turntable .015" Thk

1шт.

10

S77919

SHIM,.030" Thk

(.7620 mm), Swing gearbox mounting to turntable .030" Thk

1шт.

10

S77920

SHIM,.060" Thk

(1.524 mm), Swing gearbox mounting to turntable .060" Thk

1шт.

11

S508670

BEARING ASSY

BEARING - turntable

1шт.

12

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

36шт.

13

26-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

- hex, 3/4" - 10 NC x 2-1/4", G8

36шт.

14

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- flat, 3/4", hardened

72шт.

15

S606664

GUARD - operator compartment, front

1шт.

16

S508344

GUARD - operator compartment, rear

1шт.

17

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

7шт.

17a

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

7шт.

18

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened

7шт.

19

S241979

BRACKET

- cab mounting,at turntable

1шт.

20

S514820

BRACKET

- cab mounting, at cab

1шт.

21

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2", plated

1шт.

22

S110886

MOUNTING PARTS

MOUNT - rubber, cab bracket

1шт.

23

196-10

WASHER,.521" x 2" x .134", HDN

- flat, 1/2", hardened

2шт.

24

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

25

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

26

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

27

S95569

WASHER

- flat, 1/2", hardened

6шт.

28

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

3шт.

29

S108048

LUG

- lift, welded to rear of turntable

2шт.

30

240-13

SHACKLE

- lift, at front mast ears, not shown

2шт.
