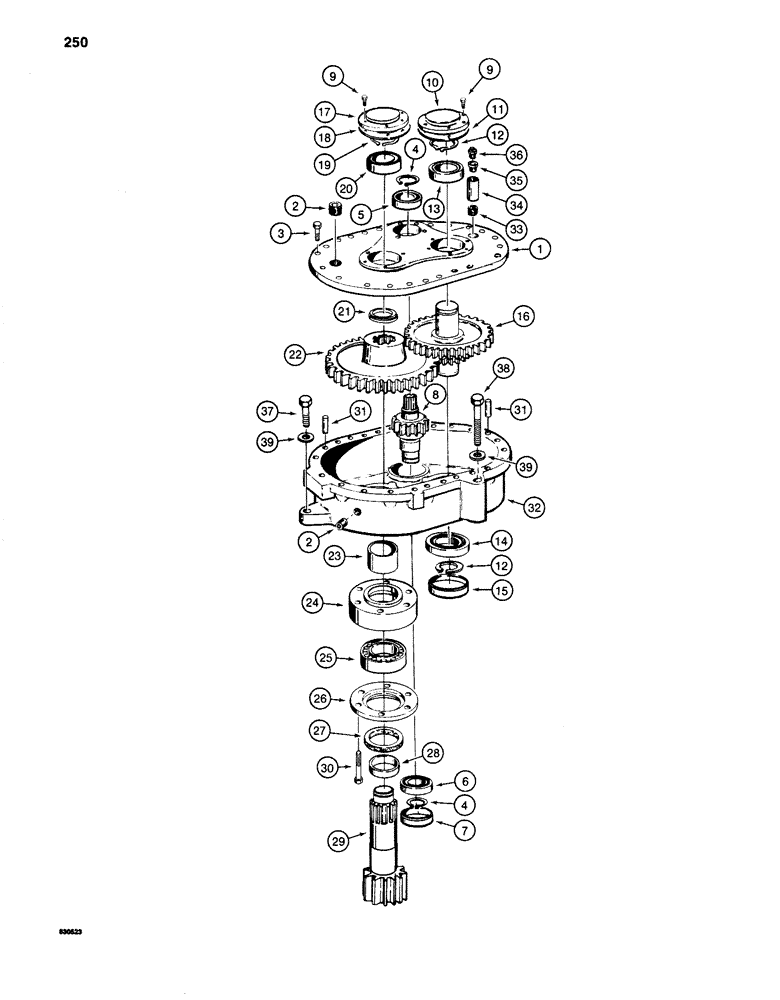

Запчасти Case 1280 (250) - SWING GEARBOX (04) - UNDERCARRIAGE

S955796

REDUCER

GEARBOX - swing, Includes: Ref. 1 - 36

1шт.

1

S612551

COVER

- gear housing

1шт.

Must use Loctite in place of gaskets.

1шт.

2

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, hex socket head, 3/8" NPT

4шт.

3

26-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- hex head, 3/8" - 16 NC x 1-3/4", grade 8

22шт.

4

A7409

SNAP RING,#137, Ext

RING, Snap, , bearing, input shaft #137, Ext

2шт.

5

S105964

CYLINDER END CAP

BALL BEARING - input shaft, spline end

1шт.

6

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

- input shaft, plug end

1шт.

7

S114619

PLUG

- gear case, at input shaft

1шт.

8

S612550

SHAFT

PINION GEAR AND SHAFT - input

1шт.

9

113-172

BOLT,Hex, 5/16" - 18 x 1", Gr 8

12шт.

10

S402194

CAP

COVER - bearing, cluster gear

1шт.

11

S103261

GASKET

- bearing cover

1шт.

12

A17903

SNAP RING,#156, Ext

RING, Snap, , bearing, cluster gear and shaft #156, Ext

2шт.

10

S402194

CAP

COVER - bearing, cluster gear

1шт.

13

S86268

BALL BEARING,40mm ID x 80mm OD x 18mm W

- cluster gear and shaft, cover end

1шт.

14

S98375

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

- cluster gear and shaft, gear case end

1шт.

15

S114620

PLUG

- gear case, at cluster gear shaft

1шт.

16

S612548

GEAR

CLUSTER GEAR AND SHAFT - intermediate

1шт.

17

S214012

CAP

COVER - bearing, output shaft

1шт.

18

S85842

GASKET

- bearing cover

1шт.

19

A17903

SNAP RING,#156, Ext

RING, Snap, , bearing, output shaft #156, Ext

1шт.

20

S238147

SPHERICAL BEARING,40mm ID x 90mm OD x 23mm

ROLLER BEARING - output shaft, cover end

1шт.

21

S235525

SPACER

- bearing to drive gear, cover end

1шт.

22

S612546

GEAR

DRIVE GEAR - output shaft

1шт.

23

S235526

SPACER

- bearing to drive gear, output end

1шт.

24

S508461

RETAINER

- roller bearing

1шт.

Must use Loctite in place of gaskets.

1шт.

25

S112817

ROLLER BEARING,75mm ID x 130mm OD x 41.28mm W

- output shaft, driven gear end

1шт.

26

S508460

RETAINER

- oil seal

1шт.

Must use Loctite in place of gaskets.

1шт.

27

S98415

OIL SEAL

OIL SEAL - output shaft

1шт.

28

S225232

OIL SEAL

SPACER - bearing to driven gear

1шт.

Must use Loctite in place of gaskets.

1шт.

29

S616256

SHAFT

AND PINION GEAR - output

1шт.

30

26-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

- hex head, 5/8" - 11 NC x 3-1/4", grade 8

6шт.

31

S97539

DOWEL

PIN - gearbox, Serial Range: cover-case

2шт.

32

S613678

CASE

HOUSING - gearbox, swing

1шт.

Must use Loctite in place of gaskets.

1шт.

33

221-161

PIPE,Nipple, 3/8" NPT x 1 1/2"

NIPPLE - pipe, 3/8" NPT x 1-1/2"

1шт.

34

S238780

TUBE ASSY.,5.87" L

TUBE - oil fill and breather

1шт.

35

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

BUSHING - reducer, 3/8" NPT x 1/8" NPT

1шт.

36

L33264

BREATHER

- gearbox

1шт.

37

26-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

- hex head, 7/8" - 9 NC x 2", grade 8

1шт.

38

26-1492

BOLT,Hex, 7/8" - 9 x 5-3/4", Gr 8

- hex head, 7/8" - 9 NC x 5-3/4", grade 8

2шт.

39

S92341

WASHER

- flat, 7/8", hardened

3шт.

B17423

LOCTITE

- red, 10 cc bottle

1шт.
