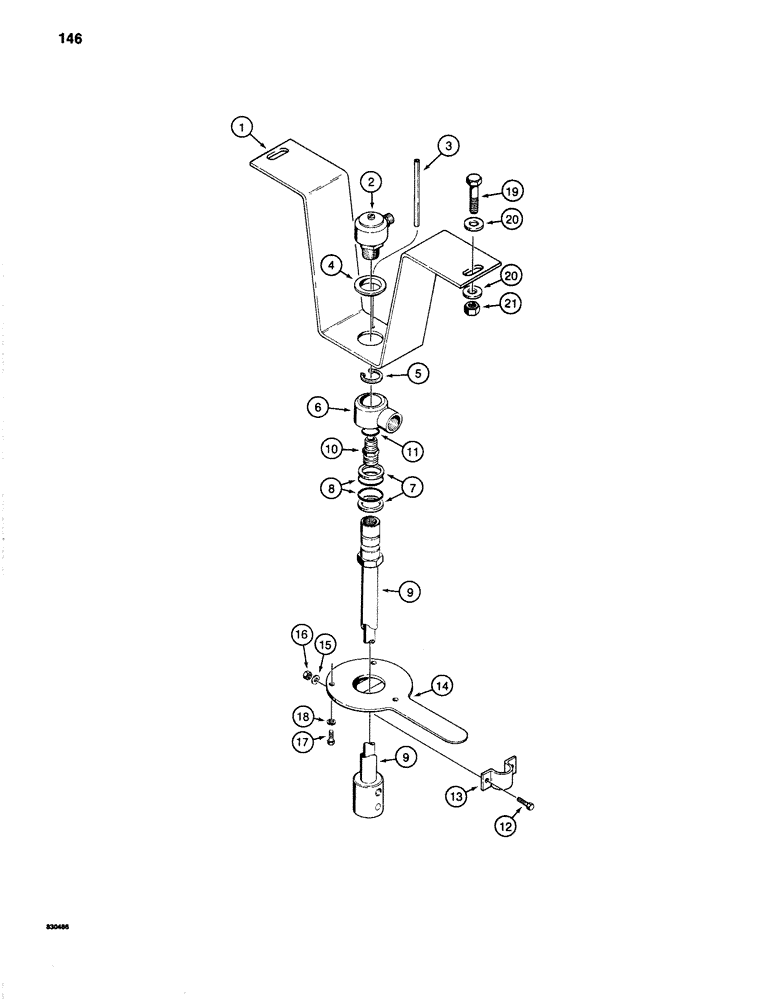

Запчасти Case 1280 (146) - INNER SWIVEL ASSEMBLY (04) - UNDERCARRIAGE

1

S229692

PLATE

BRACKET - swivel mounting

1шт.

2

S209351

FITTING

SWIVEL ASSEMBLY - upper, parts list Figure 148, Includes: Ref. 5 - 9

1шт.

3

138-169

LOCK PIN,5/16" x 4", Slotted

PIN, 5/16" x 4", Slotted

2шт.

4

S71802

NYLON BEARING,0.756" ID x 1.187" OD x 0.375"

BEARING - swivel, nylon

1шт.

S229478

SWIVEL CONNECTION

SWIVEL ASSEMBLY - inner

1шт.

5

C13513

RING

SNAP RING -, Serial Range: swivel-tube

1шт.

6

S111313

SLEEVE

SWIVEL - inner

1шт.

7

A35698

BACK-UP RING

BACKUP RING - swivel

2шт.

8

S6480

O-RING,0.737" ID x 0.943" OD x 0.103"

- swivel

2шт.

9

S229479

TUBE,0.746" OD x 23.05" L

- inner swivel

1шт.

10

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - male, straight, Includes: Ref. 11

1шт.

11

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- adapter

1шт.

12

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

13

S85438

CLAMP

- swivel tube

1шт.

14

S237399

LARGE PLATE

PLATE - inner swivel mounting

1шт.

15

195-102

WASHER,1/4"

- flat, 5/16", plated

2шт.

16

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

17

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

19

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

20

195-104

WASHER,3/8"

- flat, , plated 3/8"

4шт.

21

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.
