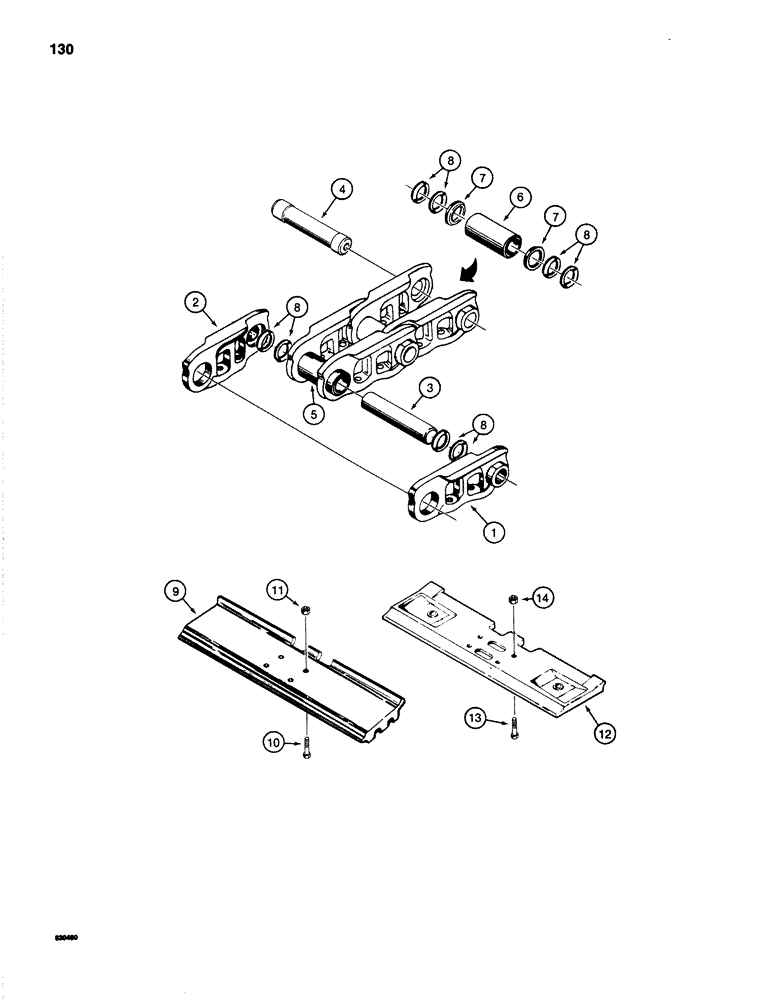

Запчасти Case 1280 (130) - TRACK SHOES, LINKS, AND PINS (04) - UNDERCARRIAGE

S602931

TRACK ASSEMBLY - excavator, with triple grouser plates, Includes: Ref. 1 - 14

2шт.

S609899

TRACK ASSEMBLY - excavator, with smooth bottom plates, Includes: Ref. 1 - 14

2шт.

S232252

CHAIN (CE)

CHAIN ASSEMBLY - track, with 23 links, "I" identification, Includes: Ref. 7

1шт.

S231998

CHAIN (CE)

CHAIN ASSEMBLY - track, with 30 links, "I" identification, Includes: Ref. 1 - 7

1шт.

1

S108920

LINK

- track, right-hand

23-30шт.

2

S108921

LINK

- track, left-hand

23-30шт.

3

S108923

PIN

- Standard

22-29шт.

4

S108926

PIN

- Master

1шт.

5

S108924

BUSHING

- standard

22-29шт.

6

S108922

BUSHING

- master

1шт.

7

S108925

SPACER

- master bushing

2шт.

S238643

CHAIN (CE)

CHAIN ASSEMBLY - track, with 53 links, "B" identification, Includes: Ref. 1 - 8

1шт.

1

S101327

LINK

- track, right-hand

53шт.

2

S101328

LINK

- track, left-hand

53шт.

3

S101363

PIN

- standard

52шт.

4

S101364

PIN

- master

1шт.

5

S101365

BUSHING

- standard

52шт.

6

S101366

BUSHING

- master

1шт.

7

S101362

SPACER

- master bushing

2шт.

8

S101361

WASHER

SEAL - track pin, used with "B" identification track chain only

212шт.

9

S108927

CHAIN (CE)

TRACK SHOE - triple grouser, 30" (762 mm), "I'' identification

53шт.

9

S90289

CHAIN (CE)

TRACK SHOE - triple grouser, 30" (762 mm) "B'' identification

53шт.

10

S108928

BOLT

- track shoe, used with S108927 shoe

212шт.

10

S89251

BOLT

- track shoe, used with S90289 shoe

212шт.

11

R25688

SQUARE NUT

- track shoe, used with S108927 and S90289 shoes

212шт.

12

S954052

TRACK SHOE

- smooth bottom

53шт.

13

S89251

BOLT

- track shoe, used with S954052 shoe

212шт.

14

R25688

SQUARE NUT

- track shoe, used with S954052 shoe

212шт.
