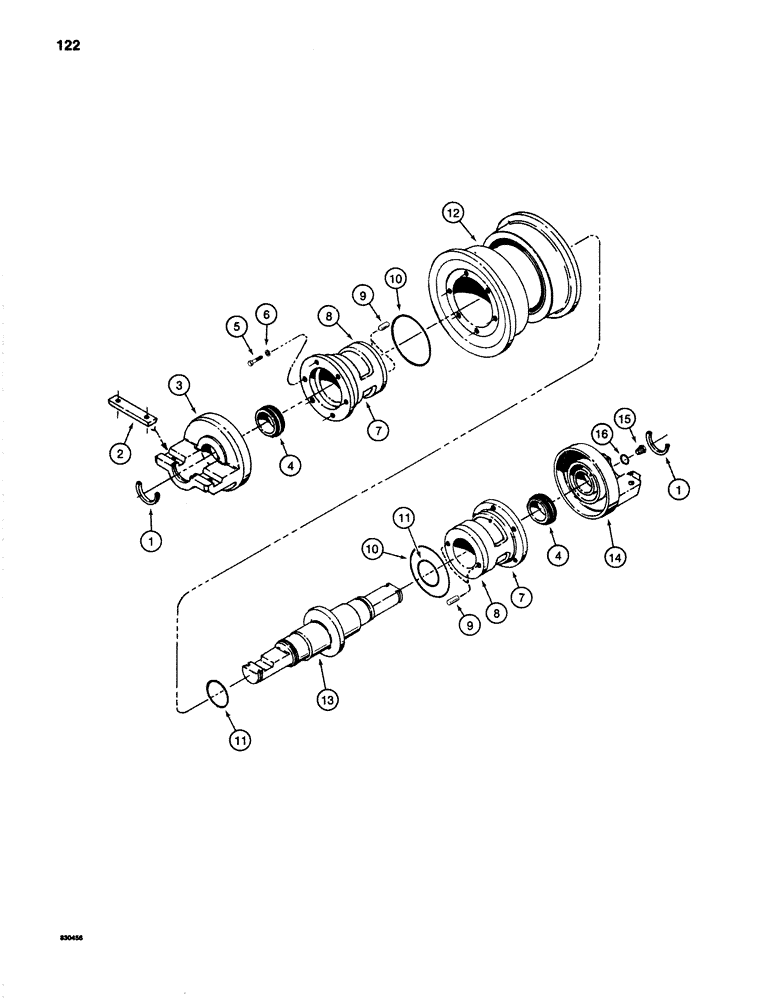

Запчасти Case 1280 (122) - SINGLE FLANGE TRACK ROLLER, TYPE I (04) - UNDERCARRIAGE

S505093

ROLLER

TRACK ROLLER ASSEMBLY - single flange, type I, Includes: Ref. 1 - 16

16шт.

1

S89317

RING, LOCKING

SNAP RING - shaft retainer

2шт.

2

S89310

LOCK

BAR - lock, roller shaft

1шт.

3

S89309

COLLAR

BRACKET - mounting, inner

1шт.

4

S112384

KIT

SEAL - oil, track roller

2шт.

5

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

12шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

S112381

BUSHING

AND HOUSING ASSEMBLY - track roller, Includes: Ref. 7 - 9

2шт.

7

NSS

NOT SOLD SEPARAT

HOUSING- bushing

1шт.

8

NSS

NOT SOLD SEPARAT

BUSHING - track roller

1шт.

9

NSS

NOT SOLD SEPARAT

DOWEL PIN - bushing housing

2шт.

10

S112382

O-RING

- large, bushing housing

2шт.

11

S112383

O-RING

- small, roller shaft

2шт.

12

S89307

RIM

TRACK ROLLER - single flange

1шт.

13

S89316

SHAFT

- track roller

1шт.

14

S89314

COLLAR

BRACKET - mounting, outer

1шт.

15

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Filler, Incl Ref 16 Hex Soc, 3/4"-16 ORB

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, filler plug

1шт.
