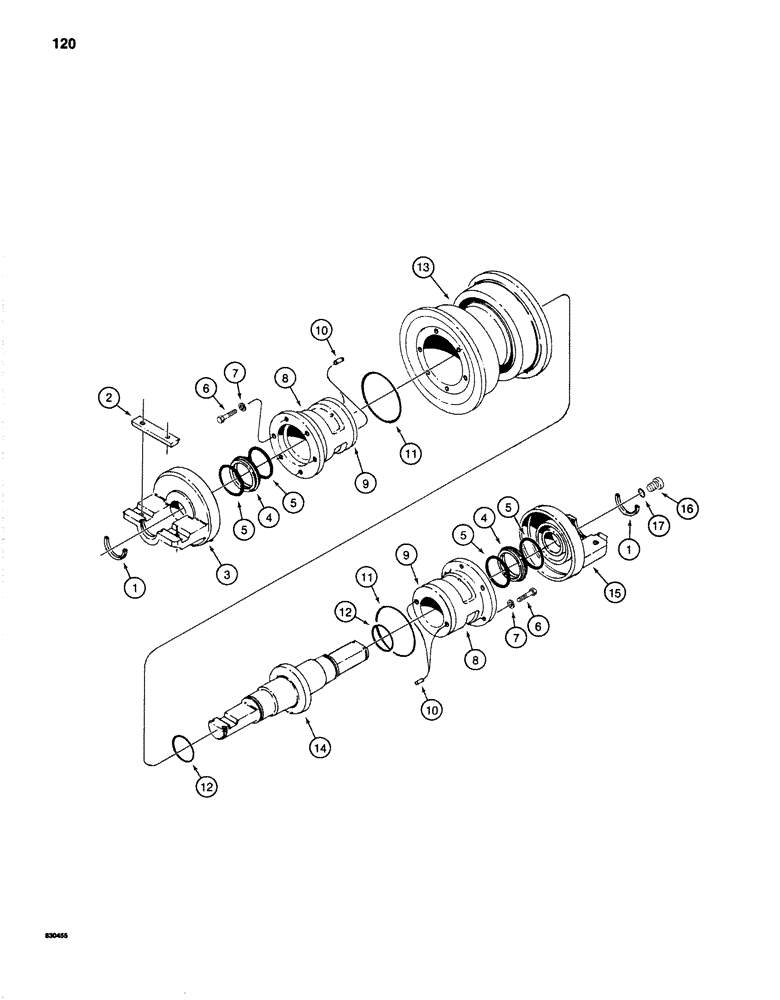

Запчасти Case 1280 (120) - SINGLE FLANGE TRACK ROLLER, TYPE C (04) - UNDERCARRIAGE

S505093

ROLLER

TRACK ROLLER ASSEMBLY - single flange, type C, Includes: Ref. 1 - 17

16шт.

1

S89317

RING, LOCKING

RETAINING RING -, Serial Range: shaft-bracket

2шт.

2

S89310

LOCK

BAR - lock, roller shaft

1шт.

3

S89309

COLLAR

BRACKET - mounting, inner

1шт.

S95098

SEAL

KIT - oil seal, track roller, Includes: Ref. 4 and 5

2шт.

4

NSS

NOT SOLD SEPARAT

RETAINER - seal

2шт.

5

S97896

RING

SEAL - oil, rubber

2шт.

6

26-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 8

- hex head, 3/8" - 16 NC x 1-1/8", grade 8

12шт.

7

192-161

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

S112381

BUSHING

ASSEMBLY - track roller, Includes: Ref. 8 - 10

2шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - bushing

1шт.

9

NSS

NOT SOLD SEPARAT

BUSHING - track roller

1шт.

10

S89318

PIN

DOWEL PIN - bushing housing

2шт.

11

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- large, bushing housing

2шт.

12

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- small, roller shaft

2шт.

13

NSS

NOT SOLD SEPARAT

TRACK ROLLER - single flange

1шт.

14

S89316

SHAFT

- track roller

1шт.

15

S89314

COLLAR

BRACKET - mounting, outer

1шт.

16

S64664

PIN

PLUG - filler, special

1шт.

17

S64691

SEAL

O-RING - filler plug

1шт.
