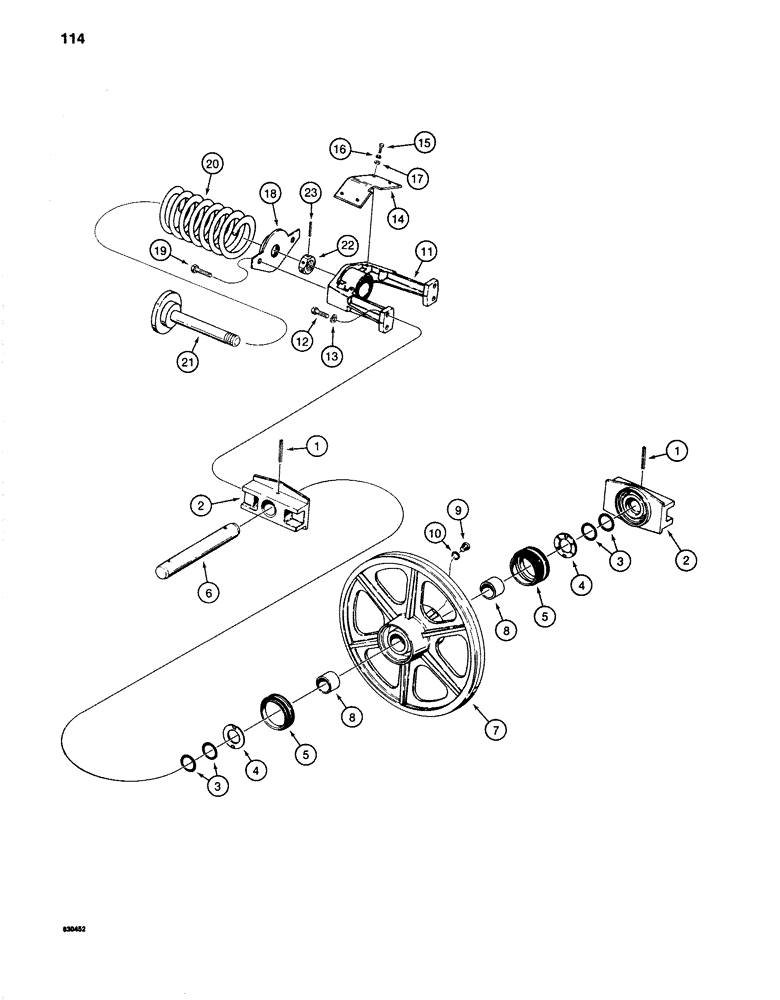

Запчасти Case 1280 (114) - TRACK ADJUSTER AND IDLER (04) - UNDERCARRIAGE

S504106

FRONT IDLER

IDLER ASSEMBLY - track, Includes: Ref. 1 - 10

2шт.

1

138-310

LOCK PIN,1/2" x 3", Slotted

PIN, 1/2" x 3", Slotted

2шт.

2

S600594

BLOCK

BRACKET - idler assembly

2шт.

3

S6318

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

O-RING - idler bracket

4шт.

4

S78702

WASHER

- idler shaft

2шт.

5

S209139

SEAL

ASSEMBLY - idler assembly

2шт.

6

S241392

SHAFT

- idler

1шт.

7

S504107

RIM

WHEEL - idler assembly, Includes: Ref. 8

1шт.

8

S78703

BUSHING

- idler wheel

2шт.

9

87035062

PLUG,Hex, 1/2"-20 ORB

Filler, Idler wheel, Includes Ref. 10 Hex Soc, 1/2"-20 ORB

1шт.

11

S600551

YOKE

- mounting, idler wheel

2шт.

12

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

14

S504059

COVER

- idler yoke

2шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

17

195-103

WASHER,5/16"

- flat, 3/8"

4шт.

18

S232915

LARGE PLATE

PLATE - mounting, Serial Range: spring-yoke

2шт.

19

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

4шт.

20

S232895

SPRING

- track tension

2шт.

21

S232916

GUIDE

- track spring

2шт.

22

S87010

NUT

- special, spring, Serial Range: guide-plate

2шт.

23

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, 1/4" x 2 1/4", Slotted

2шт.

10

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, filler plug

1шт.
