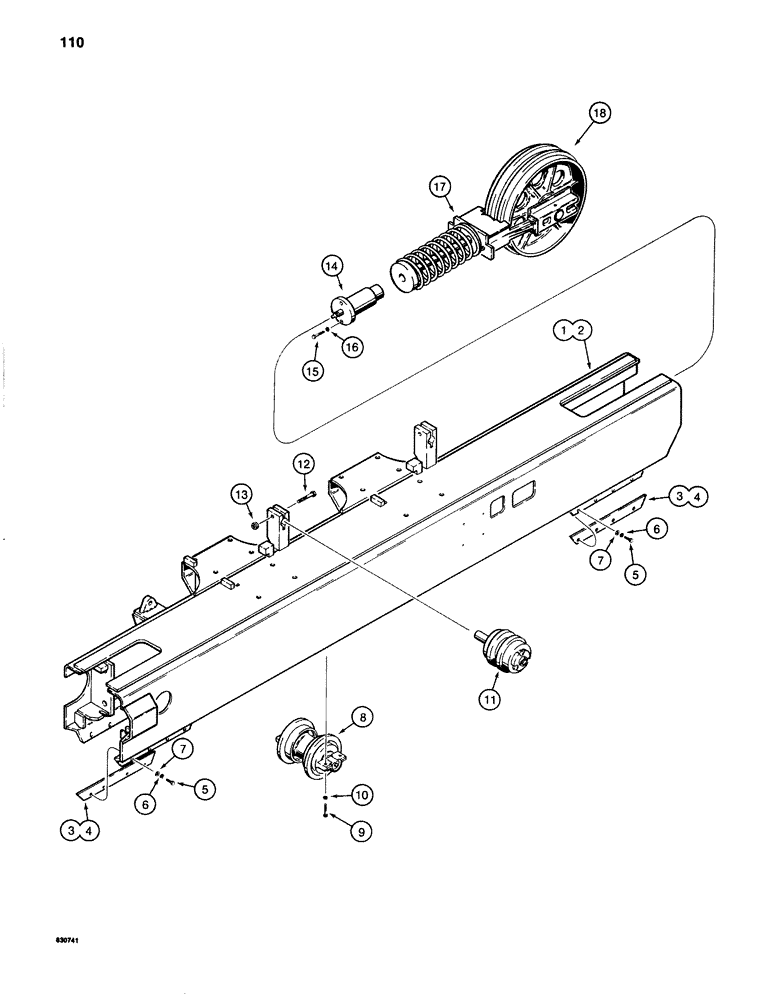

Запчасти Case 1280 (110) - TRACK FRAMES (04) - UNDERCARRIAGE

1

S956452

FRAME

TRACK FRAME - right-hand

1шт.

2

S956453

FRAME

TRACK FRAME - left-hand, not shown

1шт.

3

S511363

BAR

WEAR PLATE - track frame, inner

4шт.

4

S511364

BAR ASSY.

WEAR PLATE - track frame, outer

4шт.

5

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

32шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

32шт.

7

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened

32шт.

8

REF

INSTRUCTION

TRACK ROLLER - single flange, see Figures 118-122 for correct roller

16шт.

8

REF

INSTRUCTION

TRACK ROLLER - double flange, see Figures 124-128 for correct roller

4шт.

9

113-2619

BOLT,Hex, 5/8" - 11 x 2", Gr 8

80шт.

10

192-165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

80шт.

11

S239440

ROLLER

CARRIER ROLLER - upper, parts list Figure 116

4шт.

12

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

4шт.

13

131-1400

LOCK NUT,Jam, 3/4"-16

NUT - hex, self-locking, 3/4" - 10 NC

4шт.

14

S514603

CYLINDER

- track adjustment, parts list Figure 112

2шт.

15

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Track adjuster to frame Hex, 1/2"-13 x 2", G5

4шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

17

REF

INSTRUCTION

ADJUSTER - track, parts list Figure 114

2шт.

18

S504106

FRONT IDLER

IDLER ASSEMBLY - track, parts list Figure 114

2шт.
