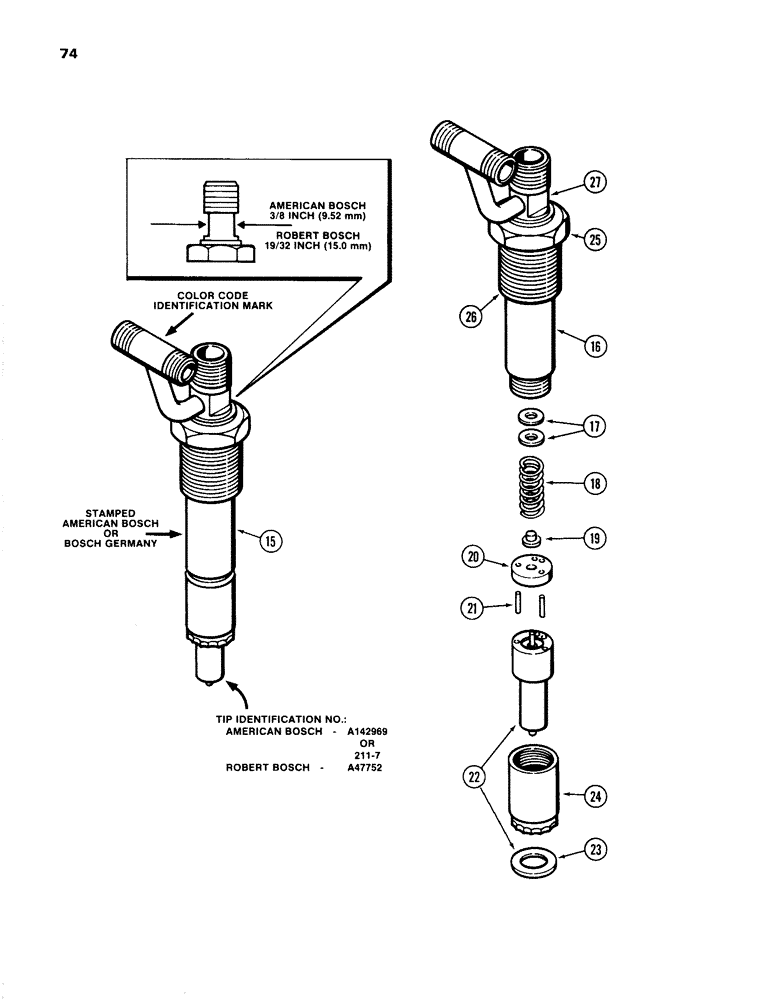

Запчасти Case 1280 (074) - FUEL INJECTOR NOZZLE, 504BDT DIESEL ENGINE, RED COLOR CODE IDENTIFICATION (01) - ENGINE
№
Артикул
Название
Примечание
Количество
A156327
NOZZLE CAP
NOZZLE ASSEMBLY - fuel injection, Includes: Ref. 15 - 27 and Ref. 1 - 11 Figure 72)
6шт.
15
NSS
NOT SOLD SEPARAT
NOZZLE ASSEMBLY - fuel injection, Robert Bosch (See Figure Note B), Includes: Ref. 16 - 27
1шт.
16
NSS
NOT SOLD SEPARAT
BODY - nozzle (Order A156327)
1шт.
A48186
KIT
- shim, nozzle opening pressure (One kit will repair six nozzles), Includes: Ref. 17
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 100 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 104 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 108 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 110 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 114 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 118 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 120 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 124 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 128 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 130 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 134 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 138 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 140 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 144 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 148 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 150 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 154 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 158 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 160 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 164 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 168 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 170 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 174 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 178 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 180 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 184 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 188 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 190 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 194 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 198 mm (5 in kit)
1шт.
18
A48198
SPRING
- nozzle pressure
1шт.
19
A48203
SEAT
- nozzle pressure spring
1шт.
20
A48199
VALVE
STOP - nozzle
1шт.
21
A48200
PIN
- valve stop
2шт.
22
A47752
NOZZLE INJECTION
TIP ASSEMBLY - nozzle injector, Includes: Ref. 23
1шт.
23
A76640
GASKET
- nozzle (See Figure Note A)
1шт.
24
A48201
NUT
CAP NUT - nozzle end
1шт.
25
A48197
NUT
- nozzle
1шт.
26
A48202
RING
- retaining
1шт.
27
A48196
RING
- retaining
1шт.
Выбрано товаров: 44
