Запчасти Case 1280 (068) - FUEL FILTER SYSTEM, 504BDT DIESEL ENGINE (01) - ENGINE

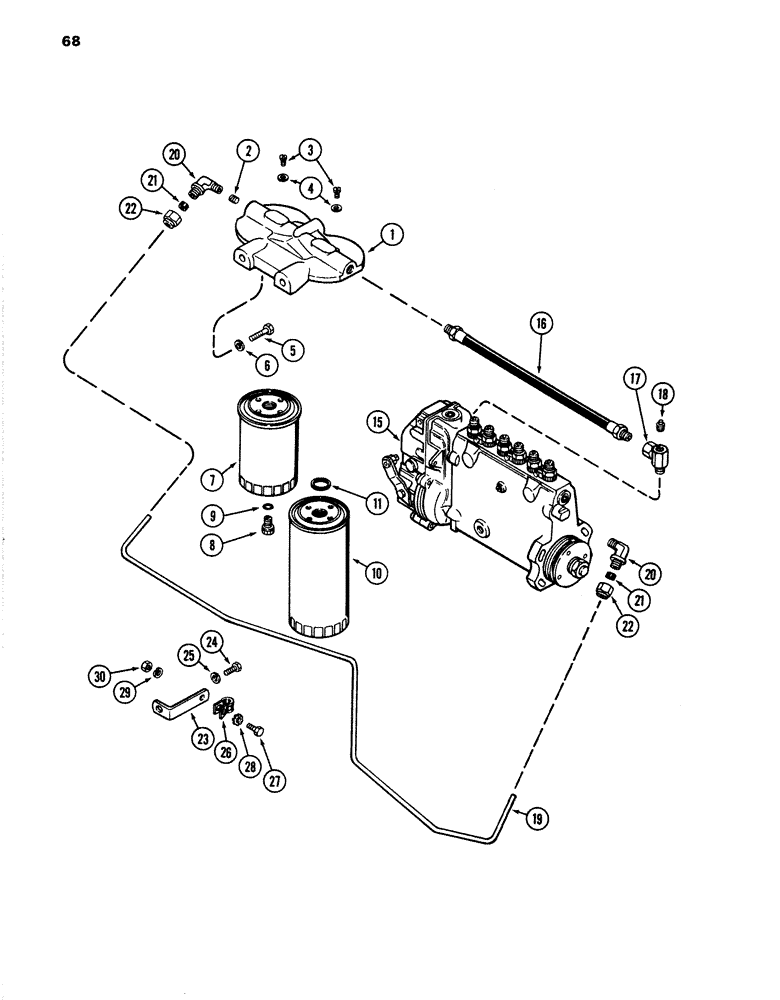

Схема запчастей Case 1280 - (068) - FUEL FILTER SYSTEM, 504BDT DIESEL ENGINE (01) - ENGINE

Артикул

Название

Примечание

Количество

1

A155489

HEAD

ASSEMBLY - fuel filter, Includes: Ref. 2

1шт.

2

221-1849

PLUG

- pipe, hex socket head, 1/8 inch PT

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed

2шт.

4

A146368

WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk

GASKET - washer, bleed screw

2шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

A44068

FUEL FILTER

KIT - replacement, fuel filter, Includes: Ref. 7 - 11

1шт.

7

NSS

NOT SOLD SEPARAT

ELEMENT - first stage filter, Includes: Ref. 8 and 9

1шт.

8

G49080

PLUG

- drain, plastic

1шт.

9

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

1шт.

10

NSS

NOT SOLD SEPARAT

ELEMENT - second stage filter, Includes: Ref. 11

1шт.

11

A42315

GASKET

-, Serial Range: element-head

1шт.

15

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 70)

1шт.

16

A65564

HOSE,9.53mm ID x 390.65mm L, SAE 100R6

- filter, Serial Range: head-pump

1шт.

17

A20539

FITTING

UNION -, Serial Range: hose-pump

1шт.

18

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, square head, 1/8 inch PT

1шт.

19

A157329

TUBE

- transfer pump to filter head

1шт.

20

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - tube, 90 degree, 5/16 x 1/4 inch PT, Includes: Ref. 21 and 22

2шт.

21

222-103

SLEEVE,5/16" Tube

- tube, 5/16"

1шт.

22

222-113

TUBE NUT,9/16"-24

NUT - tube, 5/16 inch

1шт.

23

A64856

BRACKET

-, Serial Range: tube-block

1шт.

24

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

25

92-6

LOCK WASHER,3/8"

1шт.

26

A62209

CLAMP,5/16", Insul, 1/4" Bolt

- tube to bracket

1шт.

27

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

28

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

30

25-104

NUT,1/4"-20, G5

1шт.

Выбрано товаров: 28
