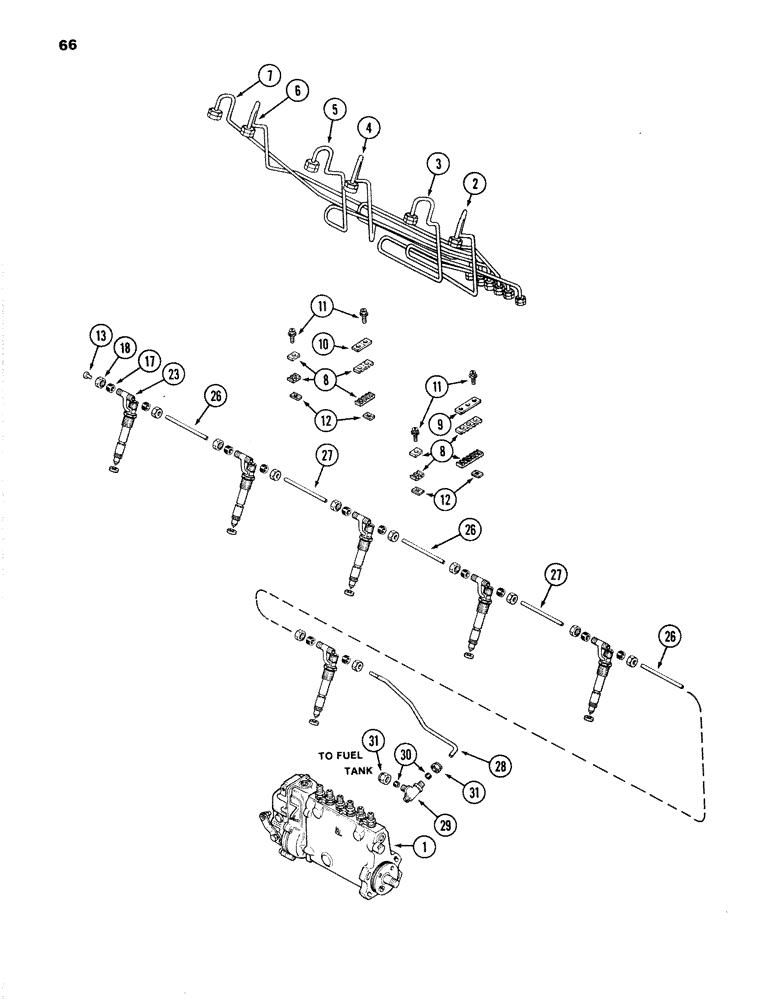

Запчасти Case 1280 (066) - FUEL INJECTION SYSTEM, 504BDT DIESEL ENGINE (01) - ENGINE

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 70)

1шт.

2

A156885

TUBE

- fuel injection, No 1 cylinder

1шт.

3

A156886

TUBE

- fuel injection, No 2 cylinder

1шт.

4

A156887

TUBE

- fuel injection, No 3 cylinder

1шт.

5

A156888

TUBE

- fuel injection, No 4 cylinder

1шт.

6

A156889

TUBE

- fuel injection, No 5 cylinder

1шт.

7

A156890

PIPE

TUBE - fuel injection, No 6 cylinder

1шт.

8

A58709

BRACKET

- injection tube

14шт.

9

A58708

PLATE

- injection tube bracket (For 6 lines)

1шт.

10

A58710

PLATE

- injection tube bracket (For 4 lines)

1шт.

11

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- hex slotted, No. 10 NC x 1 inch

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - Tinnerman, No. 10 NC

7шт.

13

47-37

RIVET,FH, 3/16" x 7/16"

- flat head, 3/16 x 7/16 inch

1шт.

17

222-101

SLEEVE,3/16" Tube

- for 3/16 inch (4.76 mm) tube (Replaces 221-101)

12шт.

18

222-111

TUBE NUT,7/16" - 24

NUT - for 3/16 inch (4.76 mm) tube (Replaces 221-111)

12шт.

23

REF

INSTRUCTION

NOZZLE ASSEMBLY - fuel injection (See Figures 72 and 74)

6шт.

26

A76642

TUBE

- leak off, 4-11/16 inch (102.29 mm) long

3шт.

27

A76641

TUBE

- leak off, 5-3/4 inch (146.05 mm) long

2шт.

28

A153816

TUBE

- leak-off, No. 1, Serial Range: nozzle-valve

1шт.

29

A59097

VALVE

ASSEMBLY - check, leak-off (in injection pump)

1шт.

30

222-102

SLEEVE,1/4" Tube

(6.35 mm) 1/4" Tube

2шт.

31

87017024

TUBE NUT,1/2"-24

NUT - for 1/4 inch (6.35 mm) tube

2шт.
