Запчасти Case 1280 (038) - TURBOCHARGER SYSTEM, 504BDT DIESEL ENGINE (01) - ENGINE

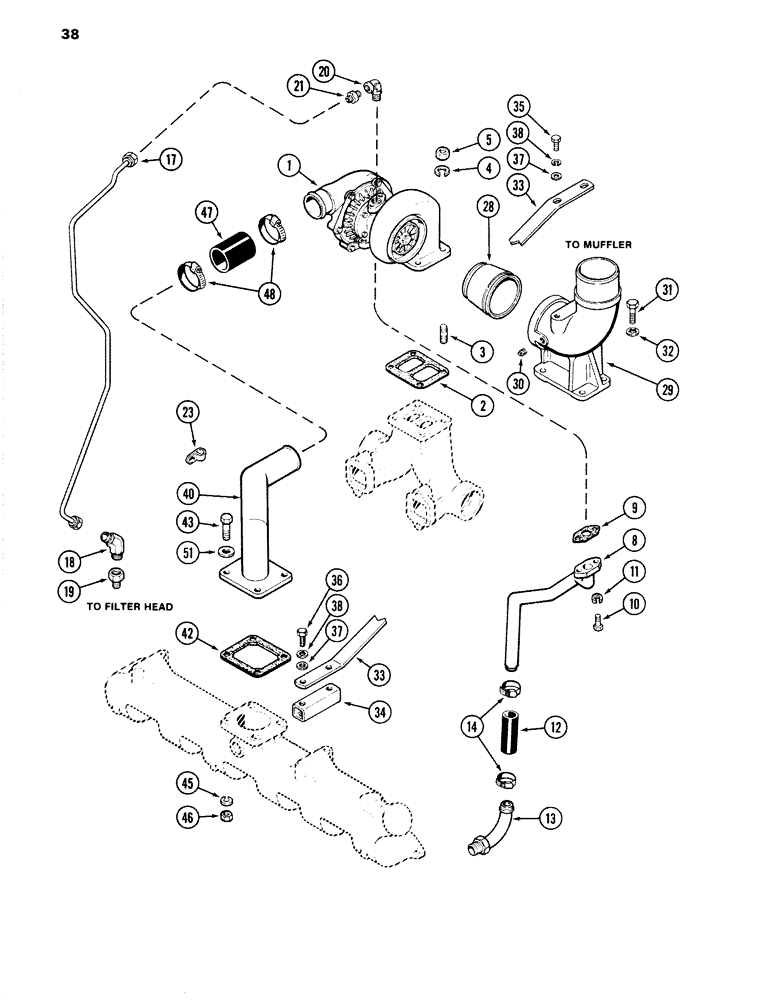

Схема запчастей Case 1280 - (038) - TURBOCHARGER SYSTEM, 504BDT DIESEL ENGINE (01) - ENGINE

Артикул

Название

Примечание

Количество

1

A157336

TURBOCHARGER

ASSEMBLY - new

1шт.

1

A48192

REMAN-TURBOCHARGER

Turbocharger Assembly, Remanufactured

1шт.

1

A48191

CORE-TURBOCHARGER

Return Part Number, use this part number to return turbocharger core for credit

1шт.

2

A58899

GASKET,0.45mm Thk

-, Serial Range: turbocharger-manifold

1шт.

3

G102128

BOLT

- 3/8 NC x 1-1/2 inch

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

131-903

NUT,3/8"-16

NUT - hex, Seez-pruf, 3/8 inch NC

4шт.

8

A62518

TUBE

- oil drain

1шт.

9

A58892

GASKET,1.59mm Thk

- drain tube flange

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

A156842

HOSE,22.2 mm ID x 88.90 mm, SAE 30R1 TYPE 1 PER SAE J30

0.90" ID x 3.50", SAE 30R1 type 1 per SAE J30 - Drain Tube

1шт.

13

A58897

FITTING

-, Serial Range: hose-block

1шт.

14

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

(2064 to 3810 mm) #16, 0.81/1.50 Type F Worm

2шт.

17

A166064

TUBE

- oil supply

1шт.

18

222-4095

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

- tube, 45 degree, 3/8 PT x 1/4 inch

1шт.

19

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

- tube to filter head, 3/8 PT to 1/4 inch

1шт.

20

217-19

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 90 degree, 1/4 inch PT

1шт.

21

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - straight, tube, 3/8 PT x 1/4 inch

1шт.

23

49845

CLAMP

- tube

1шт.

28

A65554

TUBE

CONNECTOR - turbocharger to exhaust elbow

1шт.

29

A61941

ELBOW

- exhaust

1шт.

30

221-12

PLUG,Sq Hd, 1/4"-18

- square head, 1/4 inch PT

1шт.

31

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

32

92-6

LOCK WASHER,3/8"

4шт.

33

A61944

BRACE

- elbow to intake manifold

1шт.

34

A67057

SPACER

-, Serial Range: brace-manifold

1шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

36

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

37

95-6

WASHER,3/8"

- 7/16 x 1 x 1/16 inch (11.11 x 25.4 x 1.59 mm)

4шт.

38

92-6

LOCK WASHER,3/8"

4шт.

40

A150450

ELBOW

- intake

1шт.

42

A58910

GASKET

- intake, Serial Range: elbow-manifold

1шт.

43

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

45

92-6

LOCK WASHER,3/8"

4шт.

46

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC

4шт.

47

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

2.00" ID x 2.88"

1шт.

48

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

(33.34 to 57.15 mm) #28, 1.31/2.25 Type F Worm

2шт.

51

95-6

WASHER,3/8"

- 7/16 x 1 x 1/16 inch (11.11 x 25.4 x 1.59 mm)

4шт.

Выбрано товаров: 39
