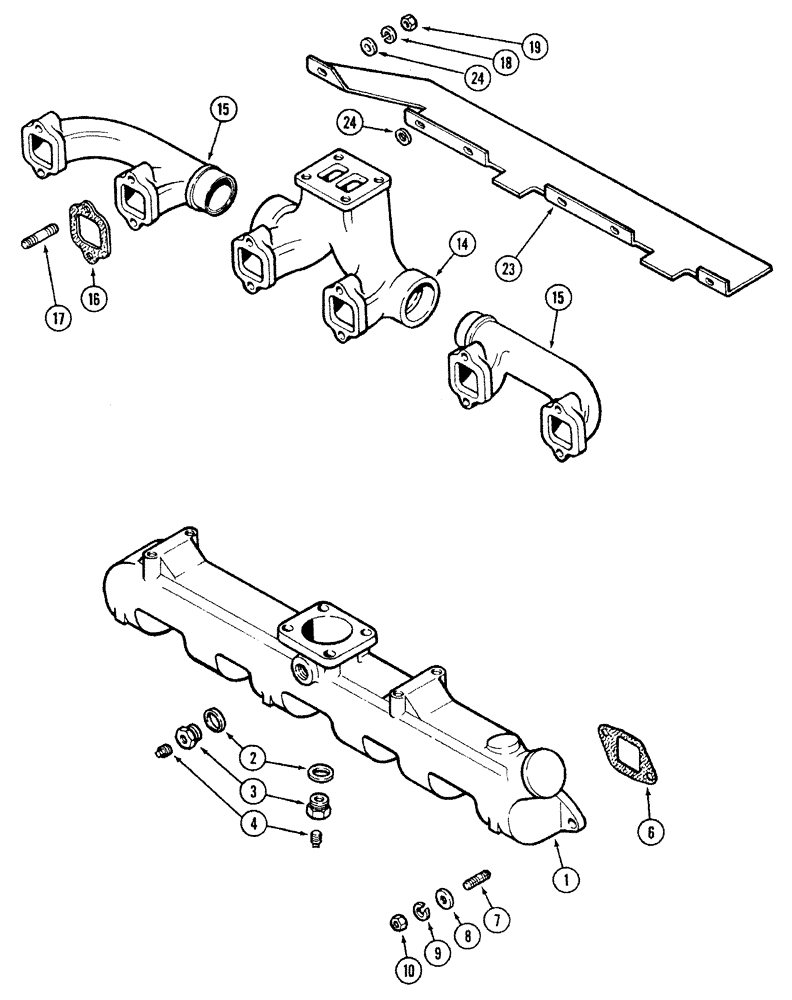

Запчасти Case 1280 (036) - INTAKE MANIFOLD, 504BDT DIESEL ENGINE (01) - ENGINE

1

A154446

MANIFOLD

MANIFOLD ASSEMBLY - intake, Includes: Ref. 2 - 4

1шт.

2

A20916

MANIFOLD GASKET

GASKET - plug

2шт.

3

L10283

PLUG

PLUG - heater opening

2шт.

4

221-1849

PLUG

PLUG - pipe, hex socket head, 1/8 inch PT

2шт.

6

A58662

MANIFOLD GASKET

GASKET -, Serial Range: manifold-head

6шт.

7

A59077

STUD

STUD - manifold to head, 3/8 NC x 1-3/4 inch

12шт.

8

195-25

WASHER,3/8"

WASHER - 3/8 x 13/16 x 1/16 inch (9.52 x 20.64 x 1.59 mm)

12шт.

9

92-6

LOCK WASHER,3/8"

12шт.

10

25-166

NUT,3/8"-16, G5, Hvy

NUT - hex, 3/8 inch NC

12шт.

14

A76322

MANIFOLD

MANIFOLD - center section

1шт.

15

A65917

MANIFOLD

MANIFOLD - end section

2шт.

16

A58895

GASKET

GASKET -, Serial Range: manifolds-head

6шт.

17

A140924

STUD

STUD - manifolds to head, 3/8 NC x 2 7/16 inch

12шт.

18

92-6

LOCK WASHER,3/8"

12шт.

19

131-903

NUT,3/8"-16

NUT - hex, Seez - Pruf, 3/8 inch NC

12шт.

23

A76351

GUARD

SHIELD - heat

1шт.

24

195-25

WASHER,3/8"

WASHER - 3/8 x 13/16 x 1/16 inch (952 x 2064 x 159 mm)

6шт.
