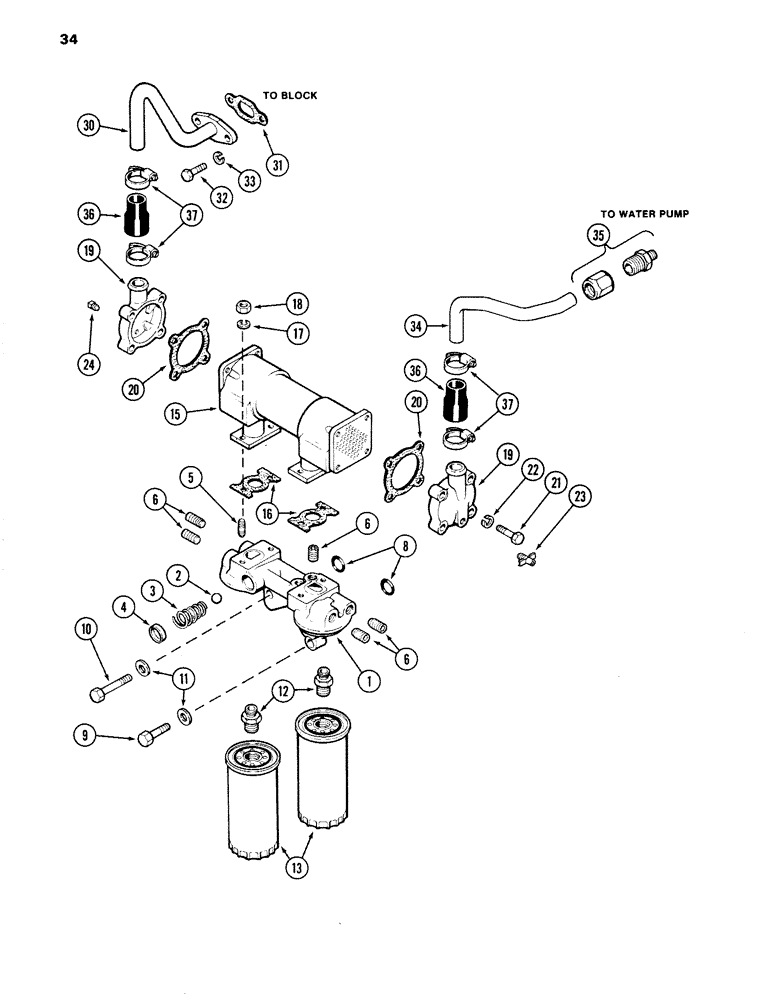

Запчасти Case 1280 (034) - OIL FILTER AND HEAT EXCHANGER, 504BDT DIESEL ENGINE (01) - ENGINE

1

A154541

BASE

ASSEMBLY - filter and heat exchanger, Includes: Ref. 2 - 6

1шт.

2

211-17

BALL,3/4" Dia

- relief valve, 3/4 inch (1905 mm) diameter

1шт.

3

A146897

SPRING

- relief valve, 2-13/16 inch (71.44 mm) free length

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- cup 1-1/4 inch (31.79 mm) diameter

1шт.

5

G102128

BOLT

- 3/8 NC x 1-1/2 inch

4шт.

6

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket head, 1/2 inch PT

5шт.

8

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil port, 15/16 x 1-5/16 x 1/8 inch (23.81 x 33.34 x 3.17 mm)

2шт.

9

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

10

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

11

195-33

WASHER,1/2"

- 1/2 x 1-1/16 x 3/32 inch (127 x 2699 x 238 mm)

2шт.

12

A63916

ADAPTER

- filter element

2шт.

13

A75294

ENGINE OIL FILTER

ELEMENT - oil filter

2шт.

15

A75295

OIL COOLER

HEAT EXCHANGER - engine oil

1шт.

16

A65359

GASKET

- heat, Serial Range: exchanger-base

2шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC

4шт.

19

A64349

HOOD

COVER - end, heat exchanger

2шт.

20

A63920

GASKET

- cover

2шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

8шт.

22

92-6

LOCK WASHER,3/8"

8шт.

23

217-107

VALVE

- drain, 1/8 inch PT

1шт.

24

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8 inch PT

1шт.

30

A75296

TUBE

- heat, Serial Range: exchanger-block

1шт.

31

A58670

GASKET

- tube flange

1шт.

32

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

33

92-8

LOCK WASHER,1/2"

2шт.

34

A166083

TUBE

- heat exchanger to water pump

1шт.

35

222-2020

FITTING

CONNECTOR - tube, 1 x 3/4 inch PT

1шт.

36

A64353

HOSE

-, Serial Range: tube-cover

2шт.

37

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 13/16 to 1-3/4 inch (2064 to 4445 mm)

4шт.
