Запчасти Case 1280 (032) - WATER PUMP, 504BDT DIESEL ENGINE (01) - ENGINE

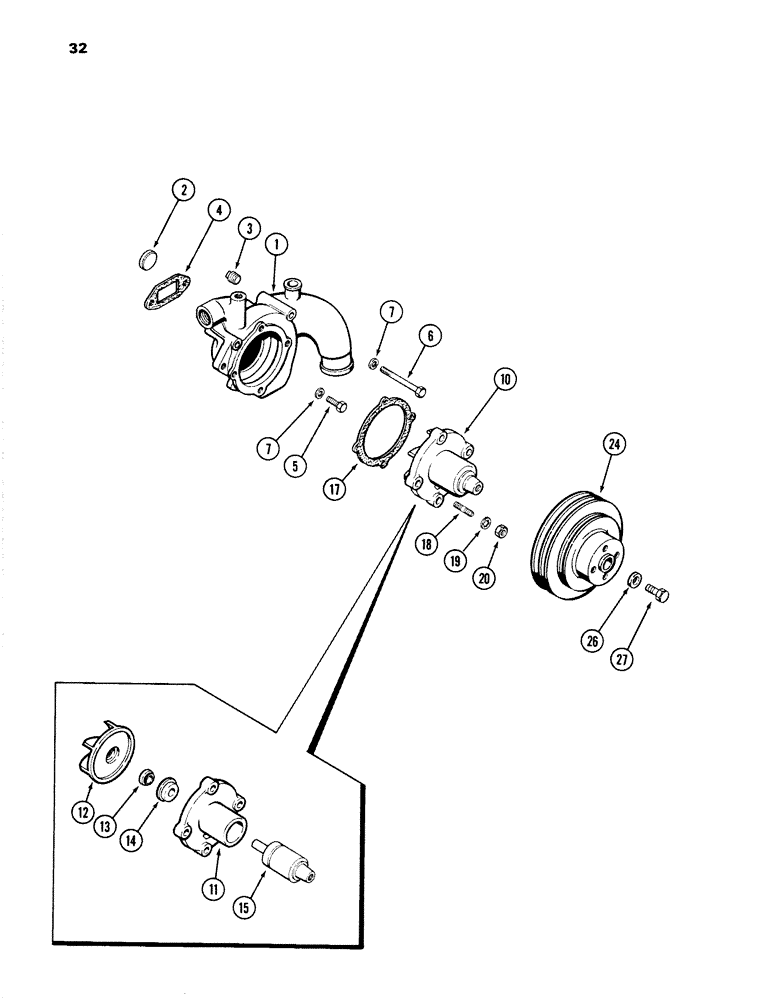

Схема запчастей Case 1280 - (032) - WATER PUMP, 504BDT DIESEL ENGINE (01) - ENGINE

Артикул

Название

Примечание

Количество

1

A60630

HOUSING

BODY ASSEMBLY - water pump, Includes: Ref. 2

1шт.

2

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - cup, 1-3/8 inch (3492 mm) diameter

1шт.

3

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - square head, 3/4 inch PT

1шт.

4

A58649

GASKET

GASKET -, Serial Range: body-block

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

6

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

BOLT, Hex, 3/8"-16 x 4", G5

2шт.

7

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

10

A157145

PUMP, WATER

PUMP ASSEMBLY - water (New)

1шт.

10

1342818C1R

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

10

A48335

CORE-WATER PUMP

Return Part Number - use this part number to return pump core for credit, Includes: Ref. 11 - 15

1шт.

10

A48369

PUMP

PUMP KIT - water (Remanufactured) Includes Ref 17

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

12

A152126

IMPELLER

IMPELLER - water

1шт.

13

A34000

SEAL

SEAT - impeller

1шт.

14

A142499

SEAL

SEAL - pump shaft

1шт.

15

A156995

BEARING

SHAFT ASSEMBLY - pump bearing

1шт.

17

A58646

GASKET

GASKET - pump, Serial Range: housing-body

1шт.

18

A166044

STUD

STUD - pump, 3/8 NC x 1-5/16 inch

4шт.

19

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

NUT - hex, 3/8 inch NC

4шт.

24

A58650

PULLEY

PULLEY - belt, pump drive

1шт.

26

A155047

RING,13.08mm ID x 26.92mm OD x 8.69mm Thk

WASHER - pulley to shaft, 33/64 x 1-1/16 x 11/32 inch (1310 x 2692 x 869 mm)

1шт.

27

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

BOLT - pulley retaining, hex, 1/2 NF x 1-1/4 inch

1шт.

Выбрано товаров: 23
