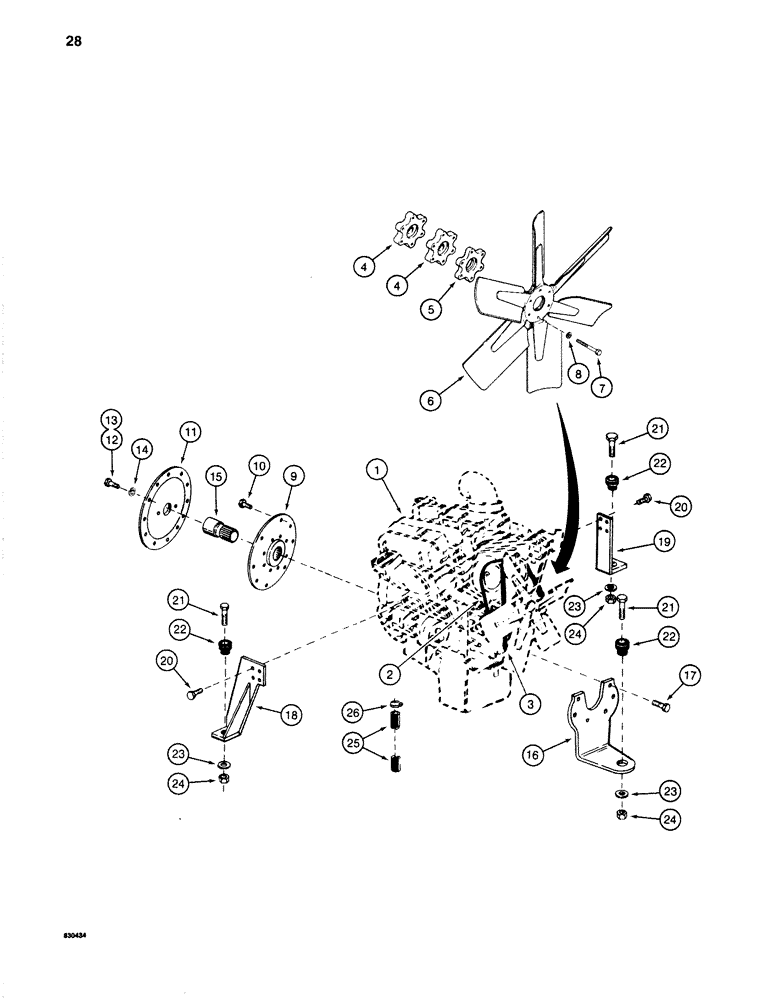

Запчасти Case 1280 (028) - DETROIT DIESEL ENGINE MOUNTING AND ADAPTING PARTS (01) - ENGINE

1

REF

INSTRUCTION

ENGINE - Detroit Diesel 6V53, for service see an authorized Detroit Diesel Allison Service Outlet

1шт.

L31230

ELEMENT

- oil filter, not shown

1шт.

S105493

ELEMENT

- fuel strainer, not shown

1шт.

S105610

ELEMENT

- fuel filter, not shown

1шт.

2

S211672

BELT

SET OF BELTS, V- Belt, Alternator, Matched set of 2 belts

1шт.

3

S119285

SET OF BELTS,0.50" W x 38.00" L

V-Belt, Fan, Matched set of two belts 0.50" W x 38.00" L

1шт.

4

S97540

FAN

SPACER - fan, thick

2шт.

5

S119284

SPACER

- fan, thin

1шт.

6

S516042

FAN

PULLER FAN - engine cooling

1шт.

7

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

6шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

9

S513495

PLATE

- drive

1шт.

10

121-204

BOLT,Lock Place, Hex, 3/8" - 16 x 5/8", Gr 8

- special, self-locking, 3/8" - 16 NC x 5/8"

8шт.

11

S52615

MOUNTING PARTS

MOUNTING PLATE - hydraulic pump

1шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

13

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

15

S229599

DRIVE SHAFT

COUPLING - pump drive shaft

1шт.

16

S505886

BRACKET

- front engine mounting

1шт.

17

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

6шт.

18

S506064

BRACKET

- right-hand rear, engine mounting

1шт.

19

S506065

BRACKET

- left-hand rear, engine mounting

1шт.

20

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

21

13-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex head, 3/4" - 10 NC x 4-1/4"

3шт.

22

A19066

MOUNTING PARTS

INSULATOR - rubber

3шт.

23

195-2270

WASHER,13/16" x 3" x .238", HDN

- flat, 3/4", special, lower

3шт.

24

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4" - 10 NC

3шт.

25

REF

INSTRUCTION

HOSE - engine breather tube 1" (25.4 mm) ID x 30" (762 mm) long, cut from L118383, see below

1шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose to engine tube

1шт.

S118383

HOSE,1.00" ID x 192.00", SAE 100R3

1.00" ID x 192.00" Bulk, SAE 100R3

1шт.
