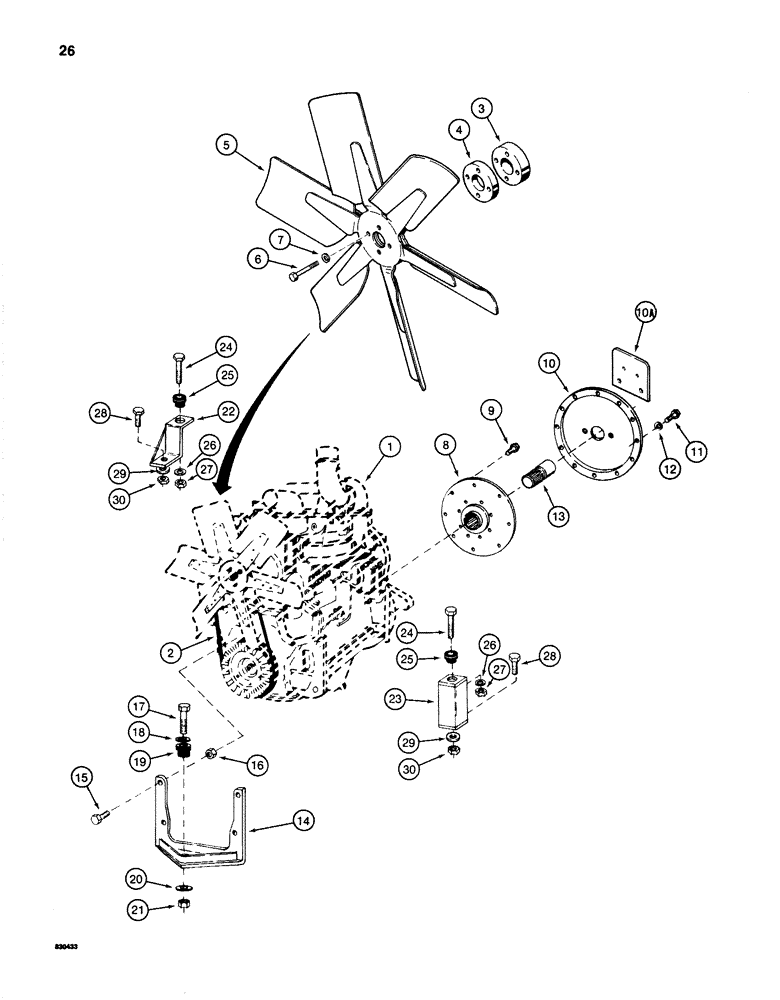

Запчасти Case 1280 (026) - CASE ENGINE MOUNTING AND ADAPTING PARTS (01) - ENGINE

1

REF

INSTRUCTION

ENGINE - Case 504BDT Diesel, parts list Figures 030-058 and Figures 064-082

1шт.

2

A59296

SET OF BELTS,0.69" W x 60.00" L

SET OF 2 BELTS , Matched, Fan and alternator 0.69" W x 60.00" L

1шт.

3

A166111

SPACER

- fan, thick

1шт.

4

A166110

SPACER

- fan, thin

1шт.

5

S516043

FAN

PULLER FAN - engine cooling

1шт.

6

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

S515001

DRIVE PLATE

PLATE - drive

1шт.

9

121-204

BOLT,Lock Place, Hex, 3/8" - 16 x 5/8", Gr 8

- special, self-locking, 3/8" - 16 NC x 5/8"

8шт.

10

S52615

MOUNTING PARTS

MOUNTING PLATE - hydraulic pump

1шт.

10a

S238088

BRACKET

PLATE - relay mounting

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

11

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

13

S229599

DRIVE SHAFT

COUPLING - pump drive shaft

1шт.

14

S229621

BRACKET

- front engine mounting

1шт.

15

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

16

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4" - 10 NC

4шт.

17

13-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex head, 3/4" - 10 NC x 4-1/4"

1шт.

18

195-45

WASHER,3/4"

Upper 3/4"

1шт.

19

S112578

MOUNTING PARTS

INSULATOR - rubber

1шт.

20

195-2270

WASHER,13/16" x 3" x .238", HDN

- flat, 3/4" special, lower

1шт.

21

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4" - 10 NC

1шт.

22

S232821

BRACKET

- right-hand rear, engine mounting

1шт.

23

S232820

BRACKET

- left-hand rear, engine mounting

1шт.

24

15-1284

BOLT

- hex head, 3/4" - 10 NC x 5-1/4"

2шт.

25

S112578

MOUNTING PARTS

INSULATOR - rubber

2шт.

26

195-2270

WASHER,13/16" x 3" x .238", HDN

- flat, 3/4" special, lower

2шт.

27

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4" - 10 NC

2шт.

28

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- hex, 3/4" -10 NC x 3, G8

2шт.

29

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- flat, 3/4", special

2шт.

30

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4" - 10 NC

2шт.
