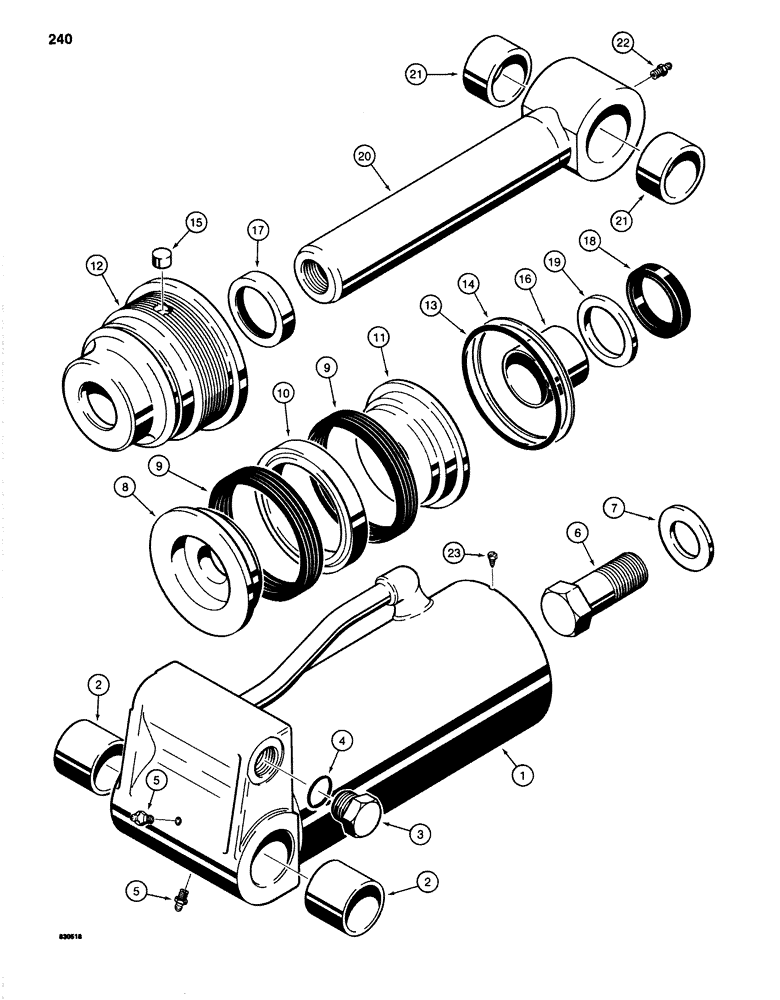

Запчасти Case 1280 (240) - WRIST-O-TWIST CYLINDER (07) - HYDRAULIC SYSTEM

S614056

CYLINDER

ASSEMBLY - wrist-o-twist, Includes: Ref. 1 - 23

1шт.

1

S513881

TUBE ASSEMBLY - cylinder, Includes: Ref. 2 16.18" L

1шт.

2

S202137

BUSHING,50.73mm ID x 63.63mm OD x 63.5mm L

- cylinder tube

2шт.

3

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 4 Hex Hd, 1 5/16"-12 ORB

2шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

6

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

- hex head, 1-1/2" - 12 NF x 3-1/2", grade 8

1шт.

7

G32666

WASHER

- special

1шт.

G35283

PISTON AND PACKING ASSEMBLY - cylinder, Includes: Ref. 8 - 11

1шт.

8

D49165

PISTON

- split, bolt end

1шт.

9

D47207

GASKET KIT

PACKING - piston

2шт.

Part of Seal Kit, P/N G105514

1шт.

10

D47212

BEARING WASHER,4.256" ID x 5.491" OD x 0.748"

RING - wear, piston

1шт.

11

D49164

PISTON

- split, rod end

1шт.

G104352

GLAND

ASSEMBLY - cylinder, Includes: Ref. 12 - 19

1шт.

12

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

13

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

- gland seal

1шт.

Part of Seal Kit, P/N G105514

1шт.

14

S92644

RING

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit, P/N G105514

1шт.

15

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

16

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

- center

1шт.

Part of Seal Kit, P/N G105514

1шт.

17

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of Seal Kit, P/N G105514

1шт.

18

D45571

ROD

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit, P/N G105514

1шт.

19

G104902

RING

SEAL - piston rod, narrow, used in addition to Ref. 18 in some glands

1шт.

Part of Seal Kit, P/N G105514

1шт.

20

S237578

PISTON ROD

ROD ASSEMBLY - piston, Includes: Ref. 21

1шт.

21

S202131

BUSHING

- piston rod

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

23

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex slotted head, No. 8 - 32 NC x 3/8", if used

1шт.

G105514

KIT

- seal, Includes: Ref. 9, 13, 14, 16, 17, 18, and 19

1шт.

G100778

SEAL

- piston rod, service option - severe heat or cold

1шт.
