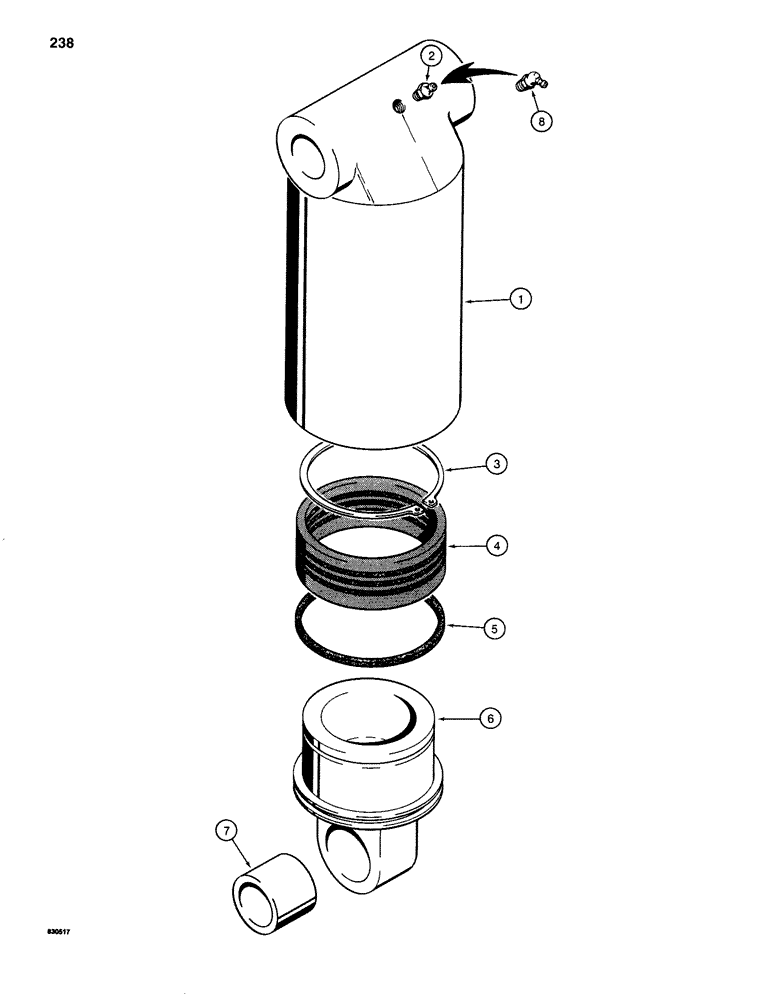

Запчасти Case 1280 (238) - LEVELER CYLINDER (07) - HYDRAULIC SYSTEM

S611706

CYLINDER

ASSEMBLY - leveler, Includes: Ref. 1 - 7

2шт.

1

S233708

TUBE,13.55" L

- cylinder

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, if used

1шт.

3

H756064

SNAP RING,#500, 4.692", Ext

RETAINING RING - piston packing

1шт.

4

S209061

SEAL ASSY.

PACKING ASSEMBLY - piston

1шт.

5

S118540

SEAL

WIPER - piston

1шт.

6

S211136

PISTON ASSY.

PISTON AND ROD ASSEMBLY - cylinder, Includes: Ref. 7

1шт.

7

S202130

THREADED BUSHING

BUSHING - piston rod

1шт.

8

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT, if used

1шт.
