Запчасти Case 1280 (016) - AIR CLEANER AND AIR INTAKE PARTS, FOR DETROIT DIESEL ENGINE (01) - ENGINE

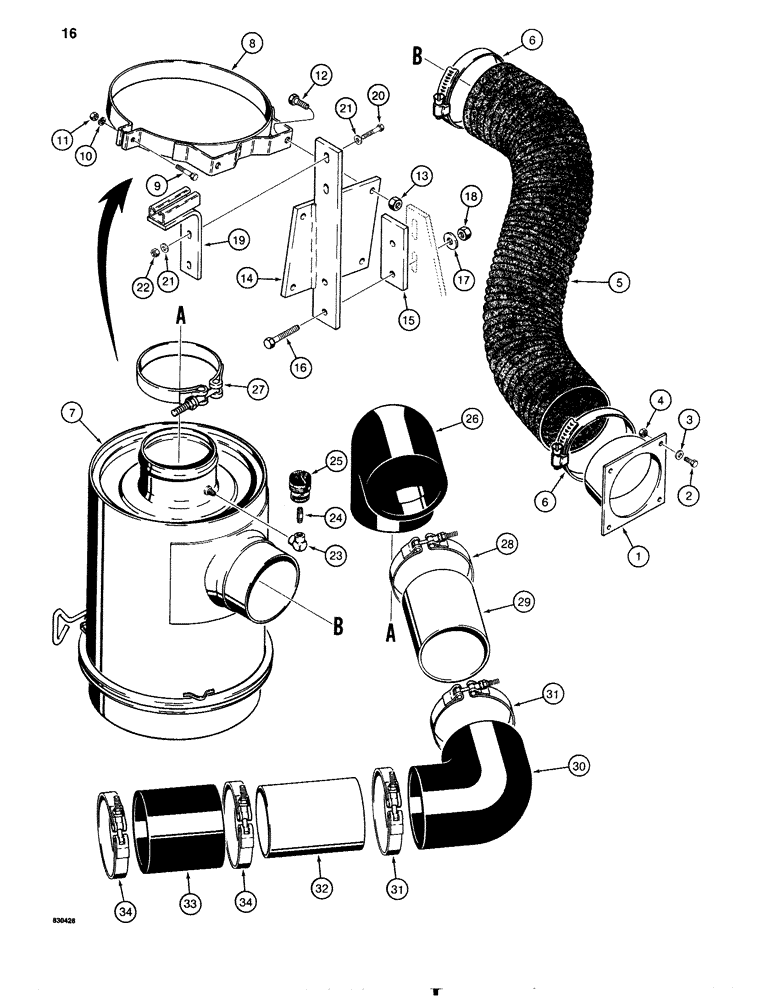

Схема запчастей Case 1280 - (016) - AIR CLEANER AND AIR INTAKE PARTS, FOR DETROIT DIESEL ENGINE (01) - ENGINE

Артикул

Название

Примечание

Количество

1

S241564

FLANGE

- air inlet

1шт.

2

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

3

195-518

WASHER,1/4", SAE

- flat, 1/4"

4шт.

4

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

4шт.

5

S241573

HOSE

- air cleaner inlet

1шт.

6

214-277

HOSE CLAMP,#100, 5.88" - 6.75", Type F Worm

CLAMP - inlet hose

2шт.

7

S617804

AIR CLEANER

- parts list Figure 18

1шт.

8

S219931

CLAMP

BAND - air cleaner, replace hardware with Refs. 9-11 below

2шт.

9

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

2шт.

12

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

- hex head, 7/16" - 14 NC x 1"

4шт.

13

231-1447

NUT,7/16"-14, GB

NUT - hex, self-locking, 5/16" - 14 NC

4шт.

14

S241549

BRACKET

- air cleaner mounting

1шт.

15

S119180

SPACER

- mounting bracket, lower

1шт.

16

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2"

2шт.

17

S95569

WASHER

- flat, 1/2", hardened

2шт.

18

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

19

S241397

BRACKET

- 90 degree, upper, tube clamp support

1шт.

20

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

21

195-104

WASHER,3/8"

- flat, 3/8"

4шт.

22

131-52

NUT,3/8"-16, GC

NUT - hex, 3/8" - 16 NC

2шт.

23

217-1050

90 ELBOW,1/8" - 27 NPTF Female

- 90 degree, indicator line

1шт.

24

221-106

PIPE,Nipple, 1/8" NPT x 1 1/2"

NIPPLE - 1/8" NPT x 1-1/4", restriction indicator line

1шт.

25

A59569

INDICATOR

RESTRICTION INDICATOR - air cleaner

1шт.

26

S516044

ELBOW

- 90 degree, rubber, air cleaner outlet

1шт.

27

214-366

CLAMP,#172, 6.25"-6.56", T-Bolt

- elbow, at air cleaner

1шт.

28

214-365

CLAMP,#156, 5.75"-6.06", T-Bolt

- elbow, at tube

1шт.

29

S119259

TUBE,5.5" OD x 7.5" L

- from air cleaner

1шт.

30

S85130

ELBOW

- 90 degree, rubber

1шт.

31

214-365

CLAMP,#156, 5.75"-6.06", T-Bolt

- elbow

2шт.

32

S119259

TUBE,5.5" OD x 7.5" L

- to engine

1шт.

33

L13265

HOSE

ADAPTER - straight, rubber, at engine

1шт.

34

214-365

CLAMP,#156, 5.75"-6.06", T-Bolt

- adapter

2шт.

Выбрано товаров: 34
