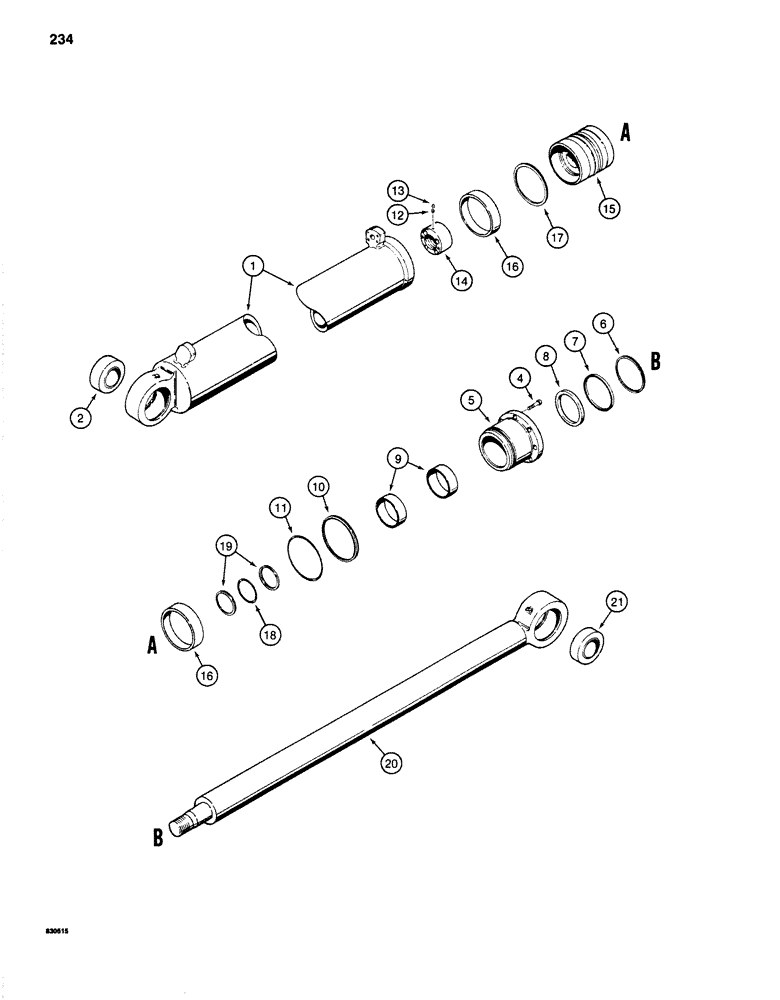

Запчасти Case 1280 (234) - CROWD CYLINDER (07) - HYDRAULIC SYSTEM

S956722

CYLINDER

ASSEMBLY - crowd, Includes: Ref. 1 - 21

1шт.

1

S616882

TUBE,65.86" L

ASSEMBLY - cylinder

1шт.

2

S240402

BUSHING

- self-aligning

1шт.

4

28-1236

CAPSCREW,Hex, 3/4" - 16 x 2 1/4", Gr 8

BOLT - hex head, 3/4" - 16 NF x 2-1/4", grade 8

10шт.

5

S515435

HEAD ASSY.

HEAD - cylinder

1шт.

6

S104444

WIPER

- piston rod

1шт.

Part of Seal Kit, P/N S613319

1шт.

7

S116473

SEAL

- piston rod, outer

1шт.

Part of Seal Kit, P/N S613319

1шт.

8

S240333

SEALING RING

- piston rod, inner

1шт.

Part of Seal Kit, P/N S613319

1шт.

9

S236422

OIL SEAL

RING - wear, cylinder head

2шт.

Part of Seal Kit, P/N S613319

1шт.

10

S114167

BACK-UP RING

BACKUP RING - cylinder head

1шт.

Part of Seal Kit, P/N S613319

1шт.

11

S6803

O-RING,6.475" ID x 7.025" OD x 0.275"

- cylinder head

1шт.

Part of Seal Kit, P/N S613319

1шт.

12

178-26

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

- bottom, 1/4" - 20 NC x 3/8", cone point

1шт.

13

178-882

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- top, 1/4" - 20 NC x 3/8", cup point

1шт.

14

S509529

NUT

- piston locking

1шт.

15

S516192

PISTON

- cylinder

1шт.

16

S109534

WEAR RING,Split, 171.45mm ID x 177.8mm OD x 38.1mm Thk

RING - wear, piston

2шт.

Part of Seal Kit, P/N S613319

1шт.

17

S234198

SEAL

- piston, outer

1шт.

Part of Seal Kit, P/N S613319

1шт.

18

S6596

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

- piston, inner

1шт.

Part of Seal Kit, P/N S613319

1шт.

19

S114155

OIL SEAL

BACKUP RING - piston seal

2шт.

Part of Seal Kit, P/N S613319

1шт.

20

S516190

ROD

ASSEMBLY - piston

1шт.

21

S240402

BUSHING

- self-aligning

1шт.

S613319

SEAL,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

KIT - seal, Includes: Ref. 6, 7, 8, 9, 10, 11, 16, 17, 18, and 19

1шт.
