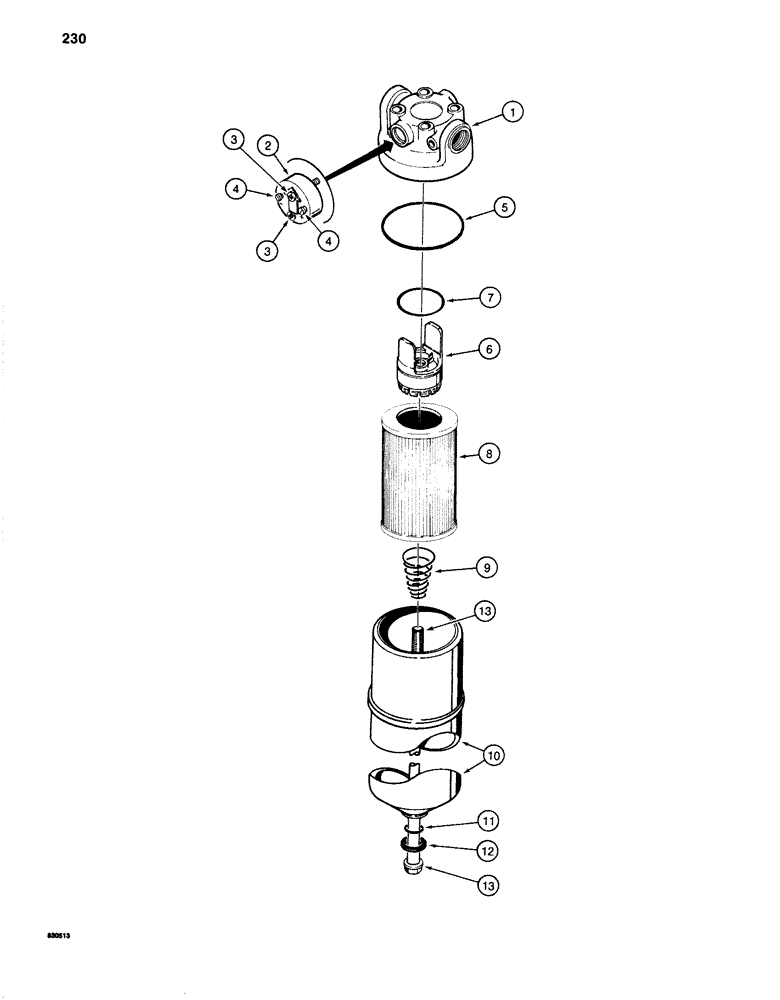

Запчасти Case 1280 (230) - HYDRAULIC OIL FILTER (07) - HYDRAULIC SYSTEM

S616067

FILTER

ASSEMBLY - hydraulic oil, Includes: Ref. 1 - 13

2шт.

S239990

HEAD ASSY.

HEAD ASSEMBLY - filter, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - housing

1шт.

S104920

BRACKET

RESTRICTION INDICATOR ASSEMBLY - electric, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

RESTRICTION INDICATOR - without screws

1шт.

3

187-1110

SCREW,Cross Pan Hd, #8 x 5/8"

- self-tapping, Phillips head, No 8 - 32 NC x 5/16"

2шт.

4

182-507

SCREW,Sl Pan Hd, #8 - 32 x 5/16", Brass

- terminal, slotted head, No 8 - 32 NC x 5/16"

2шт.

5

S107789

O-RING

- head seal

1шт.

S107803

VALVE

ASSEMBLY - bypass, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

VALVE - bypass

1шт.

7

S107967

O-RING,2.109" ID x 0.139" Width

- bypass valve (Replaces D26115)

1шт.

8

S116428

FILTER, ENGINE OIL

ELEMENT - filter

1шт.

8a

S105892

ELEMENT

- special flushing, do not use for regular service, use to flush hydraulic system only, not shown

1шт.

9

S104930

SPRING

- filter housing

1шт.

10

S113854

BOX

HOUSING - filter

1шт.

S107793

SEALING WASHER

WASHER AND SEAL ASSEMBLY - filter, Includes: Ref. 11 and 12

1шт.

11

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- bolt seal

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

13

S115824

BOLT

- special, filter tie

1шт.
